9 WIEGAND INPUT DATA FORMATs
GSW2 PLUS unit support standard Wiegand interface, it will work with Wiegand 26bit and
Wiegand 30bit protocol. On each Wiegand protocol GSW2 PLUS unit support 4 different data
formats, they all can be selected through all possible management systems.
Selecting the appropriate data format for FIRST Wiegand interface is done by connecting the WEB
server, selecting the Digital interface and in Input section selecting proper Mode option.

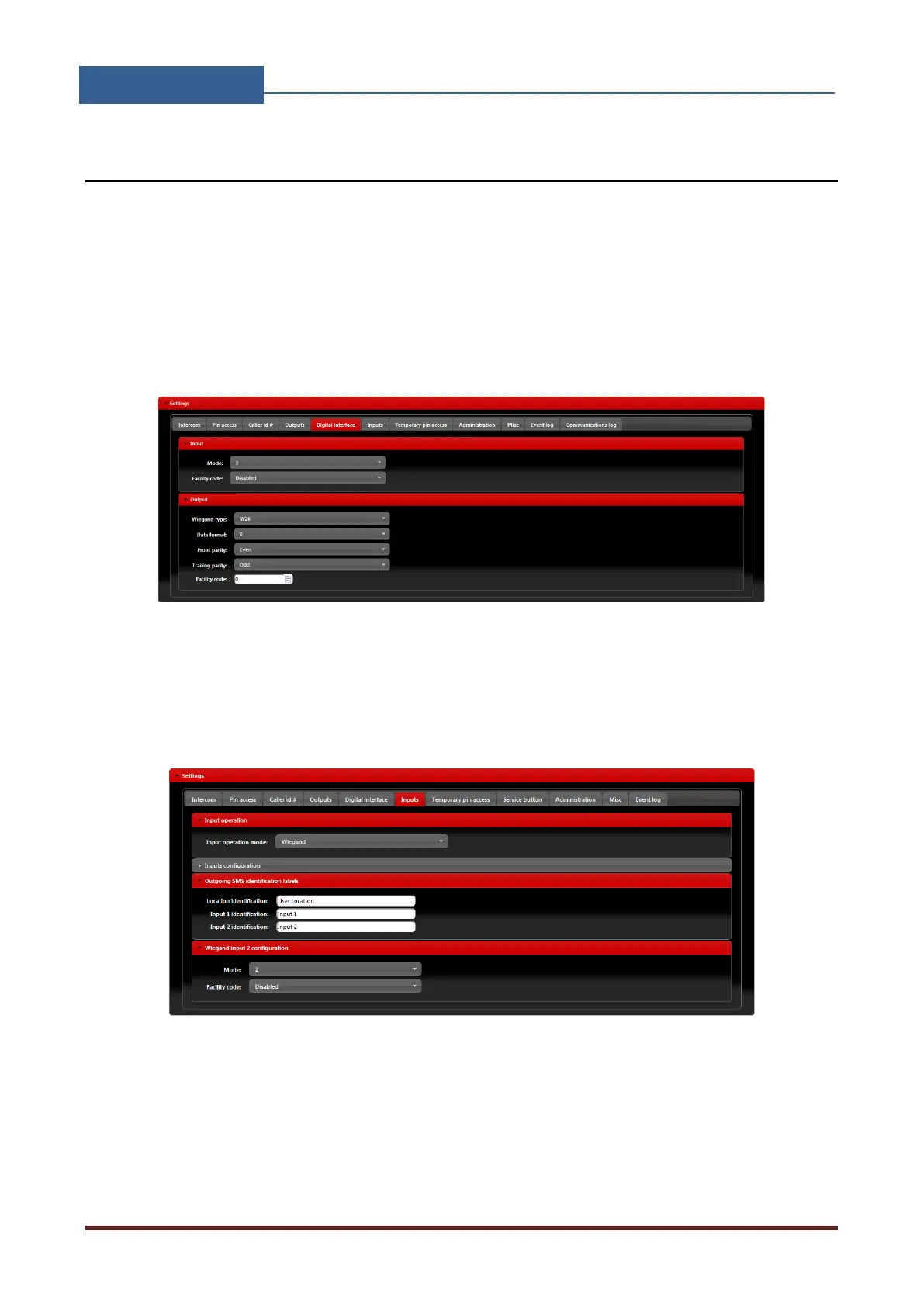

Figure 23: WEB Server-First Wiegand interface support.
Selecting the appropriate data format for SECOND Wiegand interface is done by connecting to the
WEB server, selecting the Input tab and in Wiegand input 2 configuration section selecting
proper Mode option.
Figure 24: WEB Server-Second Wiegand interface support.
