8.11 GSW2 PLUS WIEGAND OUTPUT INTEGRATION
GSW2 PLUS unit can be integrated into a bigger access system using a Wiegand interface. In this
case numbers calling the unit will be transferred, over Wiegand interface, to access system.

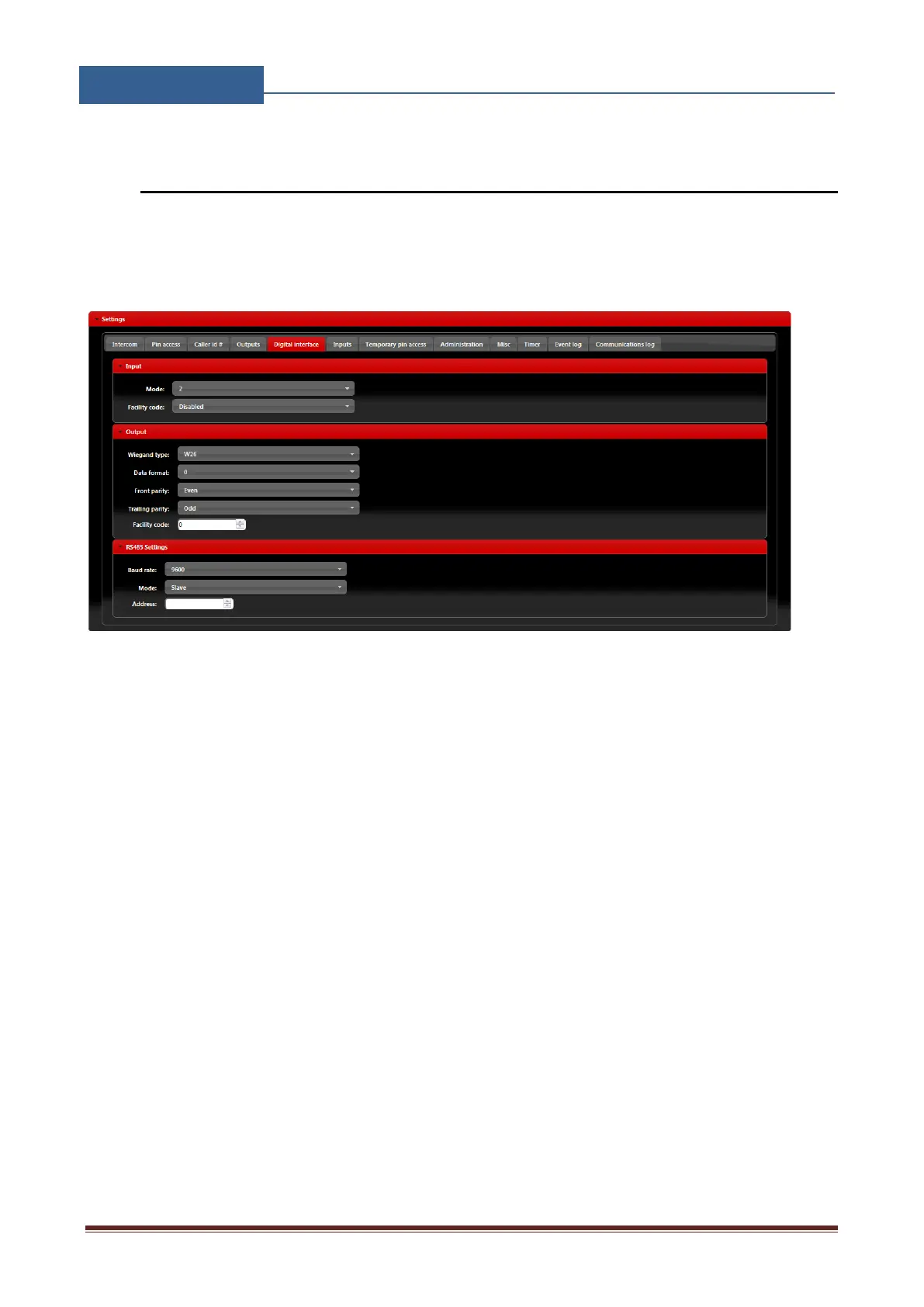

Figure 18: WEB Server-Wiegand Output settings.
Configuration of the Wiegand output interface:
Wiegand Type: Type of the Wiegand used (W26 is most common setting)
Data format: Format of data set on the selected Wiegand type.
Front parity, trailing parity: Selection of the proper parity in selected Wiegand type.
Facility code: Is required, user can define facility code to Wiegand data.
