MARS COMMERCE ZEUS4-MC Lite - ALARM SUPPORT

ZEUS4-MC Lite
INSTALLATION MANUAL
11

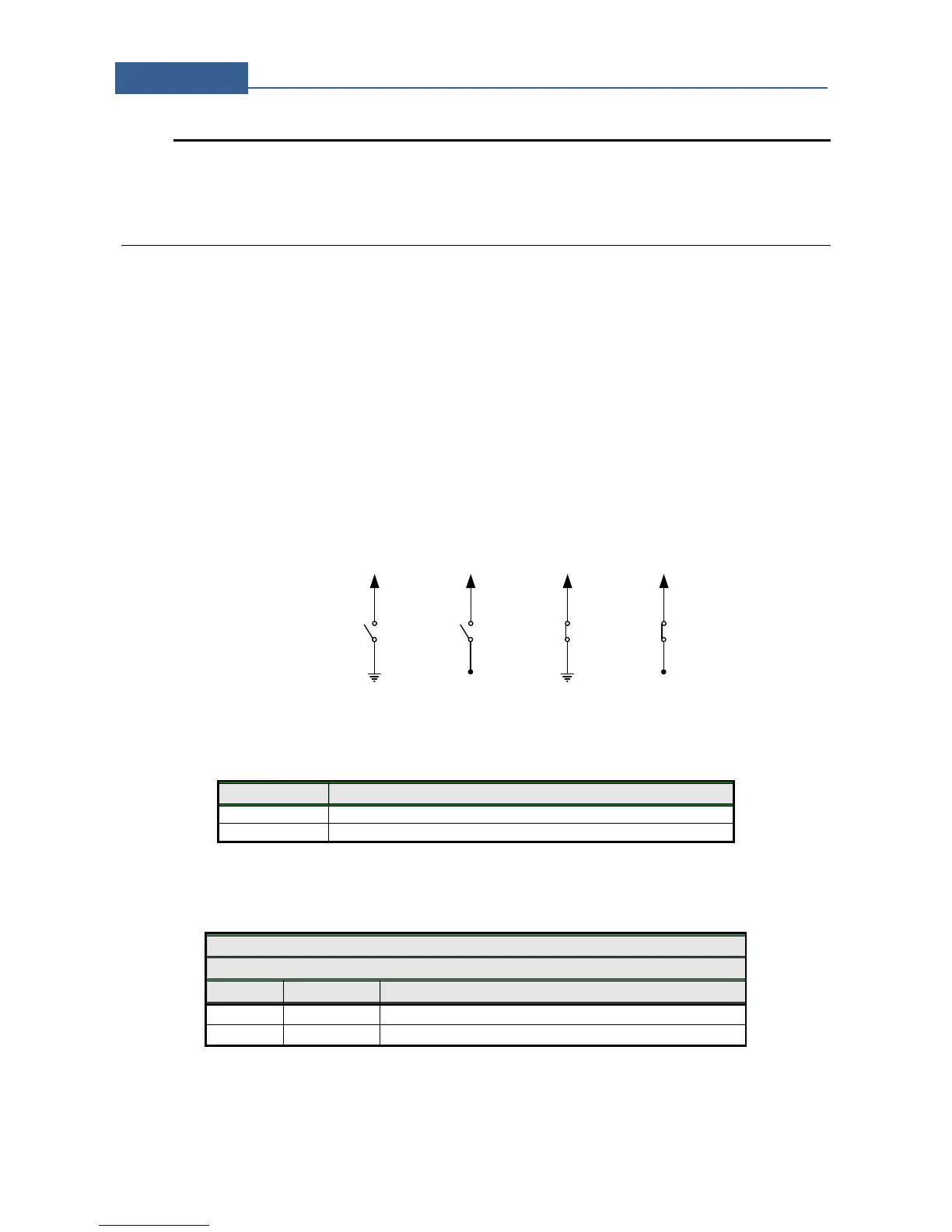

10.2 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is used to define the
relations needed for alarm to be trigged. The second section is used to report alarm.
10.2.1 IN Parameters
Alarm and reset input can be triggered in 4 different ways. The status of the input can either be
normal closed (N.C) or normal open (N.O.) with positive (+ 12V) or negative (GND) voltage.
When you need the input feedback information it is possible to receive SMS when input returns
from alarm to normal position. To receive return SMS use IN=4, 5 or 6.
 IN = 0 – Normal Open – triggered with negative voltage (GND)
 IN = 1 – Normal Close – breaking negative or positive voltage loop
 IN = 2 – Normal Open – triggered with positive voltage (+ 12MCC)
 IN = 3 – Input disable
 IN = 4 = IN = 0 + input reset SMS
 IN = 5 = IN = 1 + input reset SMS
 IN = 6 = IN = 2 + input reset SMS
INPUT 1-2
N.O.
Contact
GND
INPUT 1-2
N.O.
Contact
+12V DC
INPUT 1-2
N.C.
Contact
INPUT 1-2
N.O.
Contact
+12V DC
Figure 2: Output configuration
Table of parameters:
Name
Comment
IN1
Input 1 control
IN2
Input 2 control
Table 3: IN parameters
Example:
 Direct programming on the SIM card
ZEUS4-MC LITE PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
IN1
0
Alarm activated by connecting to GND
IN2
1
Alarm activated by disconnecting GND or +12V
Table 4: IN parameters example
 Remote programming by SMS
;IN1=0;IN2=1;
N.C.
Contact
