CDD USER GUIDE
CDD User Guide V1.0 22

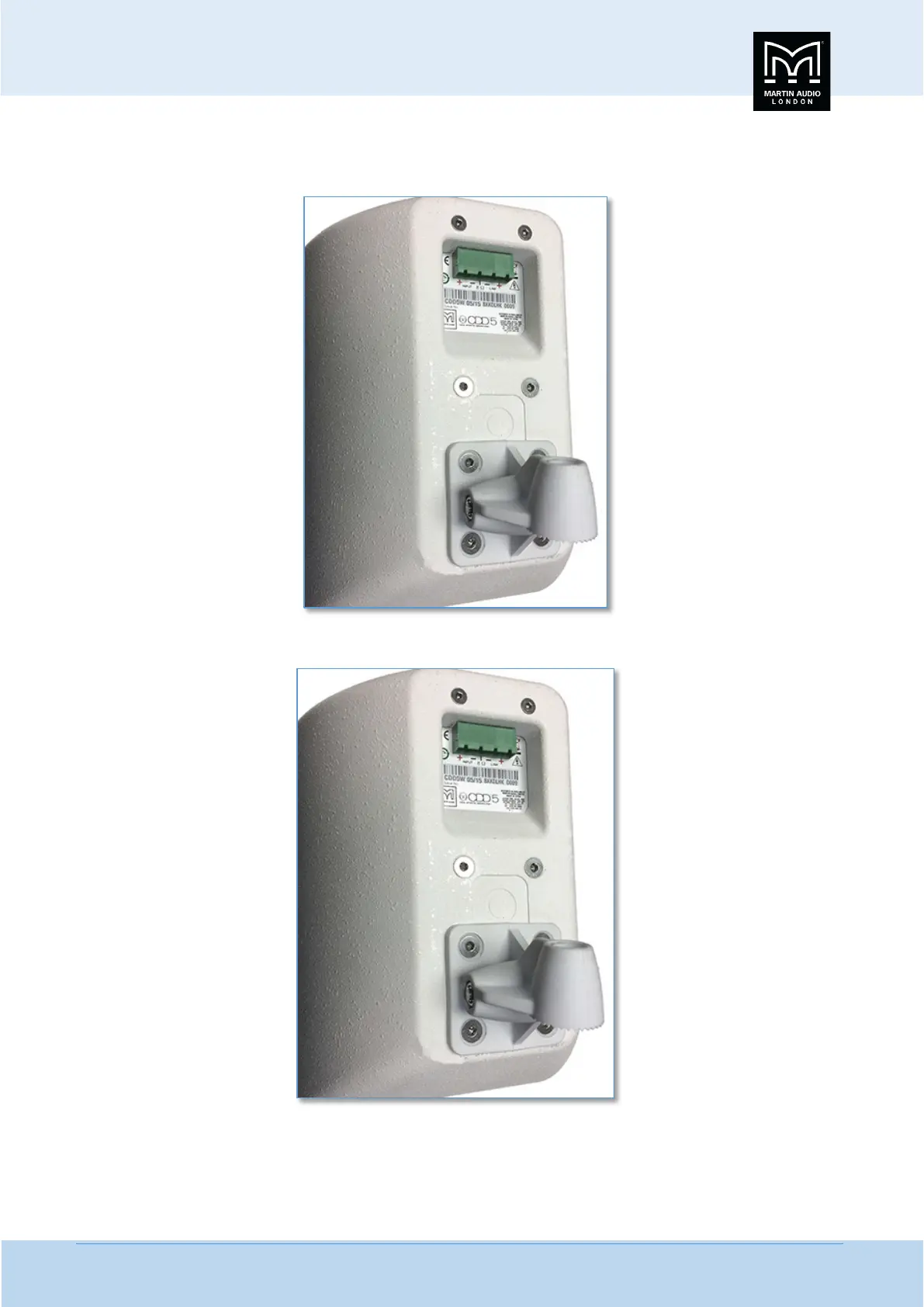

The cabinet bracket section must be attached in an orientation to suit the desired degree of adjustment. First remove the four
screws using a 3 mm hex key. For installation with two planes of adjustment, or vertical adjustment only, the cabinet bracket
must be attached as shown below:
If only horizontal adjustment is required, the bracket section should be fitted like this:
(Note that the two pictures above assume portrait orientation.)
Fix the bracket in place using the screws removed from the cabinet. Tighten these securely.
