Martin MAC 2000 Profile II User Manual

AC power 9
AC POWER
WARNING! For protection from electric shock, the fixture must be grounded (earthed). The AC mains
supply shall be fitted with a fuse or circuit breaker and ground-fault protection.
Important! Verify the power supply settings before applying power.
The chapter describes:
• Installing fuses
• Power supply adjustments for the various MAC 2000 Profile II models
• Connection to a power supply (see page 10)
• The reduced power function (see page 10)
Fuses
The MAC 2000 Profile II comes with two:
• 20 AT (time delay) main fuses for use with AC supplies of 100 - 120 volts.
• 15 A main fuses for use with AC supplies of 200 - 250 volts.
Install the appropriate fuses in the holders near the power switch.
Power supply adjustments
The MAC 2000 Profile II (identified as such by the label on the base of the product) comes with an electronic or
magnetic ballast and an auto-sensing, auto-ranging switch-mode power supply. Manual adjustments are not necessary
unless you have the magnetic ballast version.
Magnetic ballast configuration
In magnetic ballast models the ballast must be tapped correctly
for the local AC voltage and frequency. The wrong setting can
cause overheating, damage, and poor performance. The factory
settings are printed on the serial number label.
C HANGING THE MAGNETIC BALLAST SETTINGS
1 Disconnect the fixture from AC power. Remove the rear
base cover as shown in Figure 8.
2 To expose the ballast connection block, remove the screws
from each end of the side plate and tilt it down (Figure 8).
3 Find the ballast setting in Table 1.
AC frequency AC voltage Setting
50 Hz
200 - 218 V 208 V / 50 Hz
219 - 238 V 230 V / 50 Hz
239 - 250 V 245 V / 50Hz
60 Hz
200 - 218 V 208 V / 60 Hz
219 - 241 V 230 V / 60 Hz
Table 1: Magnetic ballast settings
ballast

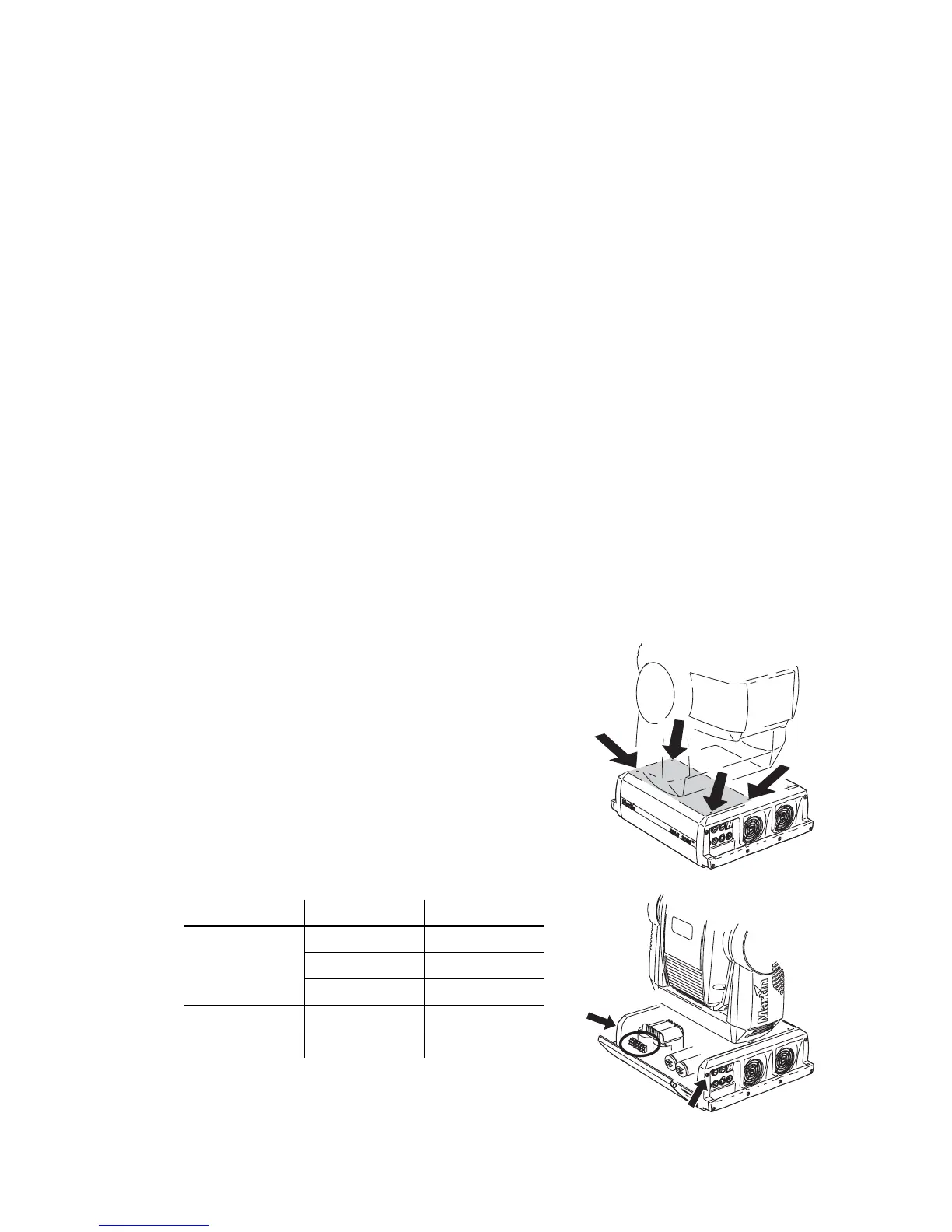

Figure 8: Power supply access
