Breakup and aerial gobos
The breakup and aerial wheels in the MAC Viper Profile each provide 5 rotating gobos plus an open
position. The standard gobos that are supplied installed in the fixture are shown in the correct order in
Figure 3.
All gobos are interchangeable, but replacement gobos must match the dimensions, construction and quality
of the gobos supplied as standard. The gobos are E-27 size (standard E-size 37.5 mm external diameter,
27 mm image area diameter). Limbo/Crystal is a custom gobo glued permanently into its holder. If you
replace Limbo/Crystal, you will therefore need to order an additional goboholder.
Handling, installing and storing the gobos requires special care. See the MAC Viper Profile Safety and
Installation Guide for details.
Breakup wheel
Aerial wheel

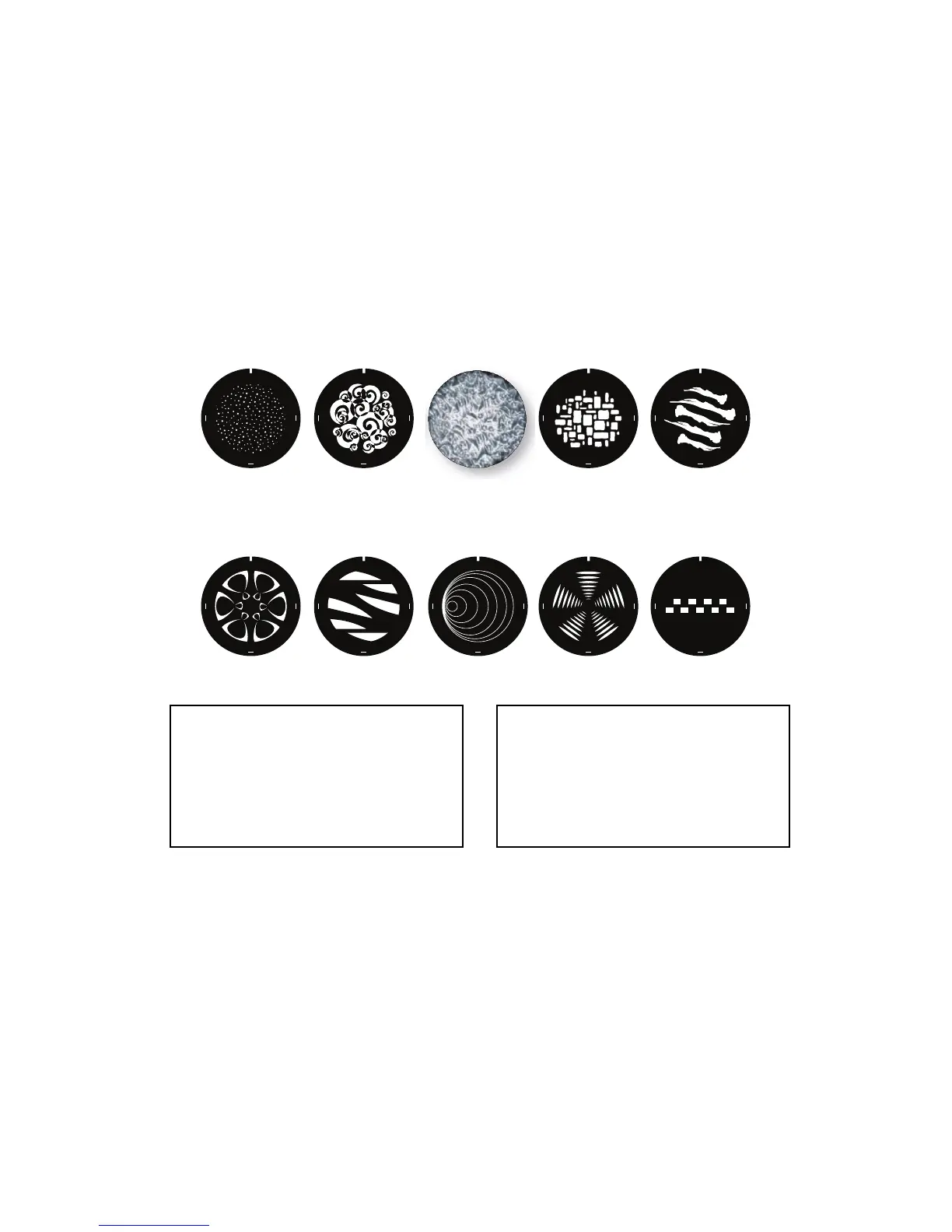

Figure 3: Breakup and aerial gobos
Breakup wheel (wheel 1)
1. Dots in space ................... P/N 43092005
2. Happy .............................. P/N 43092006
3. Limbo/Crystal (in holder).. P/N 62325150
4. Brick it .............................. P/N 43092008
5. Big bones......................... P/N 43092009
Aerial wheel (wheel 2)
1. Bite it................................ P/N 43092011
2. Too many doctors ............ P/N 43092001
3. Sonar ............................... P/N 43092002
4. Symmetrical leggings....... P/N 43092010
5. Zip it ................................. P/N 43092017
