Preparing for the installation
.

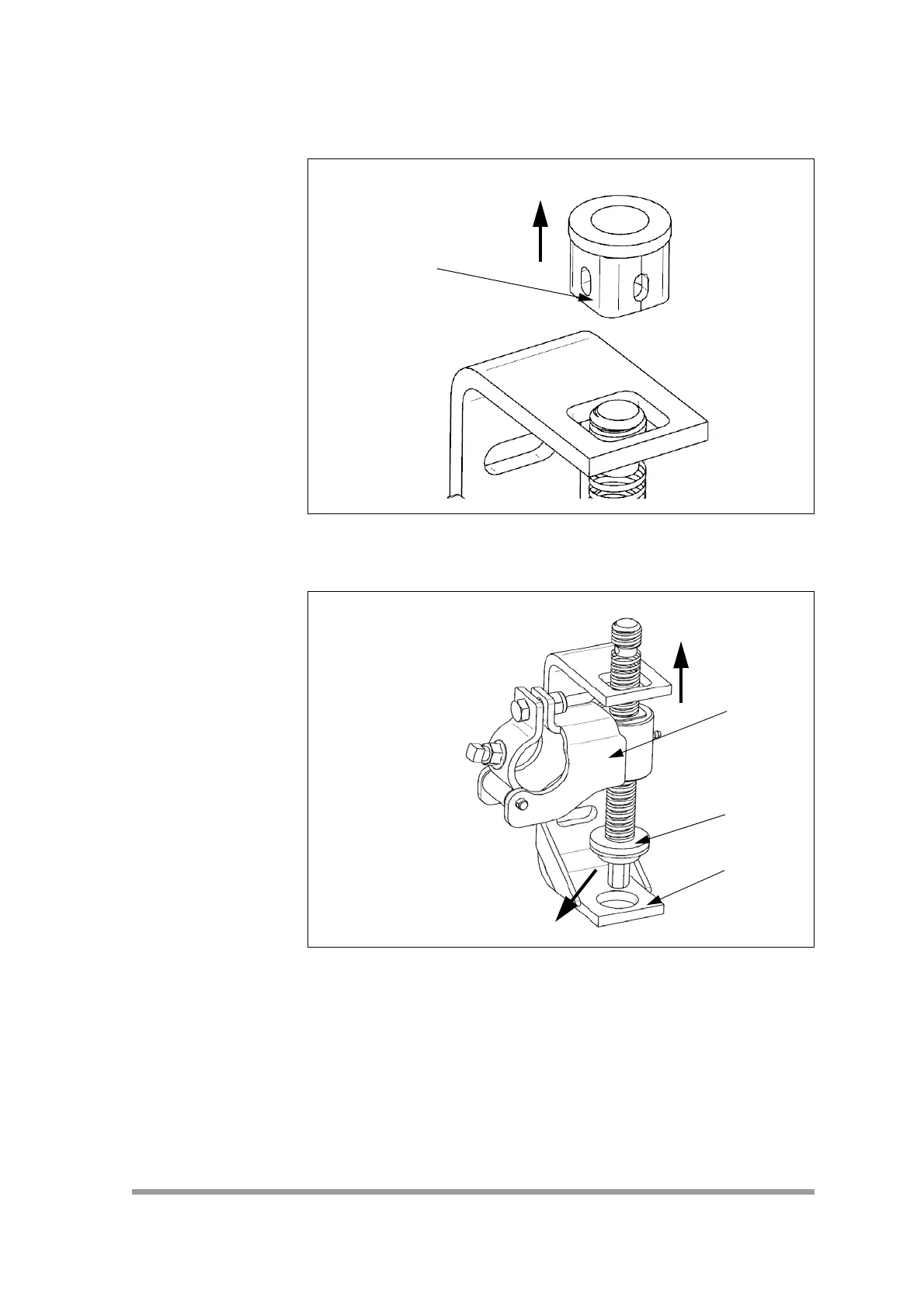

2. Remove the upper bearing bush (5, Fig.2) from the installation
panel (1, Fig.2).
3. Remove the holding arm together with the threaded rod
(11, Fig.3) and lower bearing bush (2, Fig.3) from the
installation panel (1, Fig.3).
4. Keep the removed single parts close at hand for the later
assembly.
Fig. 2:
Fig. 3:
5
11
1
2
