Installation
5.2.8 Tensioning the secondary cleaner.
1. Before tightening, turn the lower hexagon of the threaded rod
(4, Fig.24) of the tensioner so far anticlockwise that the blades
touch both sides of the conveyor belt.
2. When all of the blades are touching the belt, tighten the cleaner
one-half to one rotation on both sides of the conveyor belt.
CAUTION RISK OF DAMAGE!
Excess or uneven tightening of the belt cleaner on the conveyor
belt can cause material damage.
Always tighten the belt cleaners in accordance with the
specification and also ensure uniform tightening whenever dual
Inline-Reversing tensioners are used. Note the information on the
warning label!

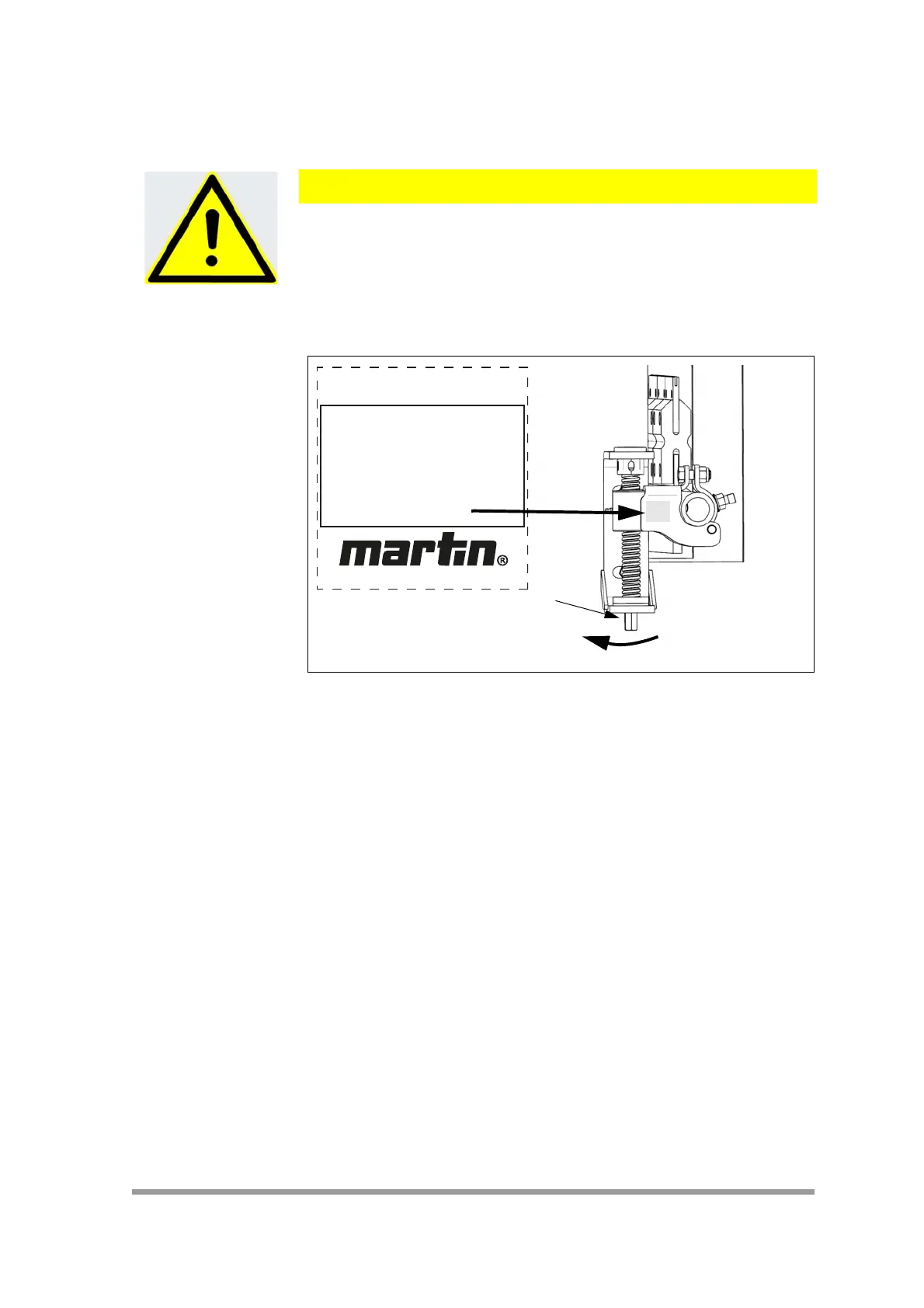

Fig. 24:
4
0049-(0)6123-97820 www.martin-eng.de
Recommended values of tension for
MARTIN® SQC2™ secondary cleaner
®
For cleaners with shock ring:
Turn the nut of the threaded rod until all blades
make contact with the conveyor belt uniformly.
To tighten, turn it by another half to full revolution.
For cleaners with urethane shock ring:
Turn the nut of the threaded rod until all blades
make contact with the conveyor belt uniformly.
To tighten, turn another 2 full revolutions.
Teilenr.: SQC2-10002UK
