Martin SQC2 - Attaching the Secondary Cleaner

© Martin Engineering GmbH 27 M3682UK-09/17
Installation
5.2.5 Aligning the mainframe parallel to the conveyor belt
Tab. 9: Top view of aligning the secondary cleaner in parallel to the
conveyor belt
1. Measure the clearance on both sides between the mainframe
and the head pulley or counter-pressure roller.

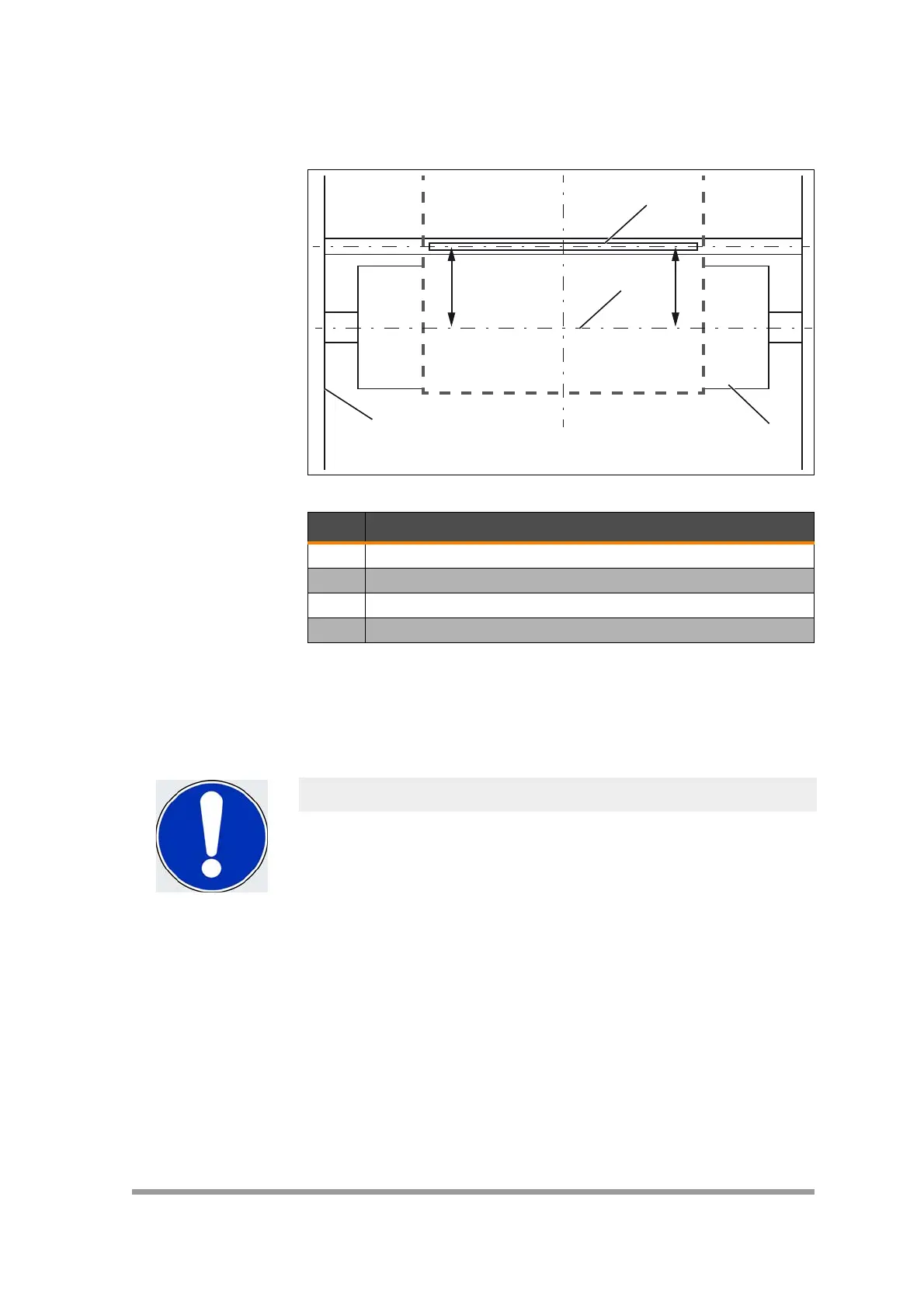

Fig. 21:
Item Description
1 Top view of the blades
2 Driving drum
3 Driving drum axis
4 Chute wall
NOTE
The measurements must be the same on both sides.
