© Martin Engineering GmbH 14 M3682UK-09/17
Installation
1. Deactivate the conveyor system and all accessories before
starting the installation work and secure them against
inadvertent reactivation.
Installation SQ2, 41605, 41641
Tab. 2: Determination and creation of the installation position
NOTE
The secondary cleaner should ideally be installed near a head
pulley or a counter-pressure roller. The clearance should be
between 50 and 100 mm.

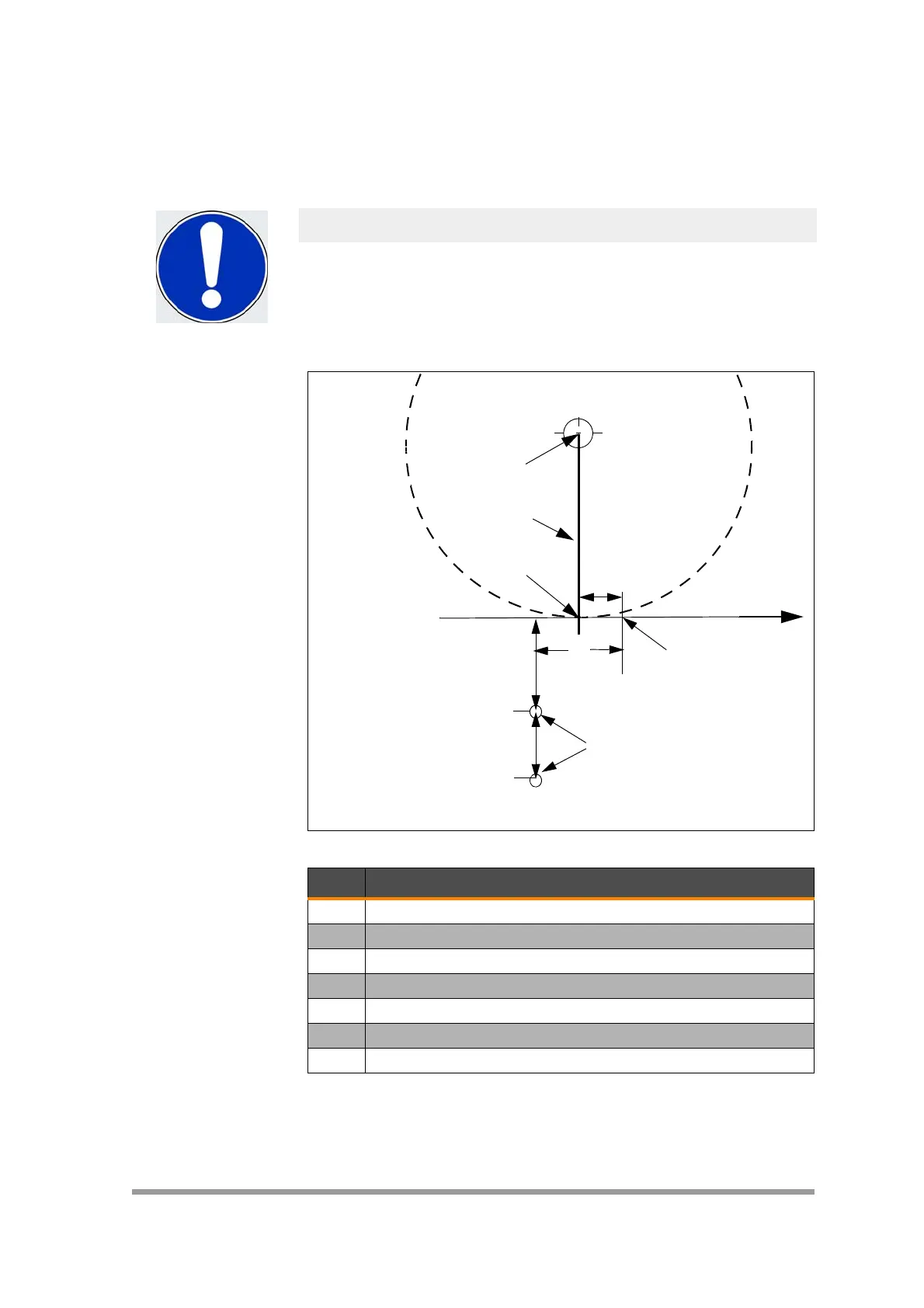

Fig. 4:
Item Description
A Centre point of the driving drum
B Perpendicular on the lower conveyor belt level
C Exit point of the conveyor belt from the driving drum
D Running direction of the conveyor belt
E Position of the belt cleaner's blade tip
F See dimensions in Table 3
G Installation holes in the tensioner
91
114
A
B
C
50 min
100 max
D
E
F
G
