Martin SQC2 - Centering Mainframe Under Belt

© Martin Engineering GmbH 24 M3682UK-09/17
Installation

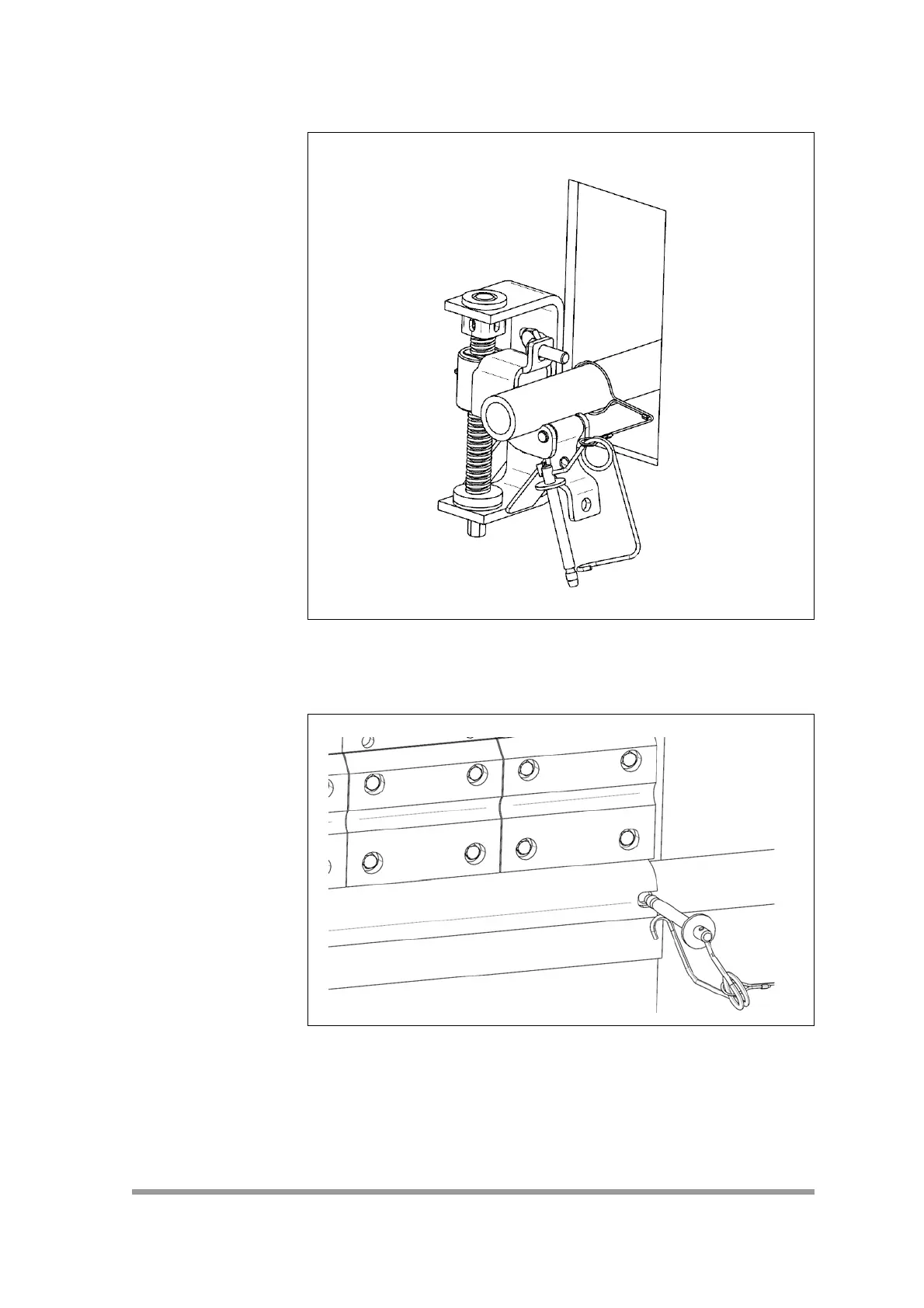

6. When using the cleaner with part number SQC2, secure the
locking bolts of the blade cartridge with the rope on the
mainframe as shown in Figure 17.
7. Reinsert the retaining pin into the blade cartridge.
Fig. 17:
Fig. 18:
