The brake cable must never touch the crown and stanchions.
Warnings: Installing the V-brake
Installing the brake system is a very delicate operation that must be carried out at our specialised service centres only.
Marzocchi does not guarantee the installation and accepts no liability for damage and/or accidents arising from a wrong installation.
Improper installation of the disk brake system can overstress the caliper mountings, which may break. The installation of the
brake system must be carried out following the instructions of the brake system manufacturer. Improper installation can be
dangerous for the rider.
Use only brake systems in accordance with the fork specifications.

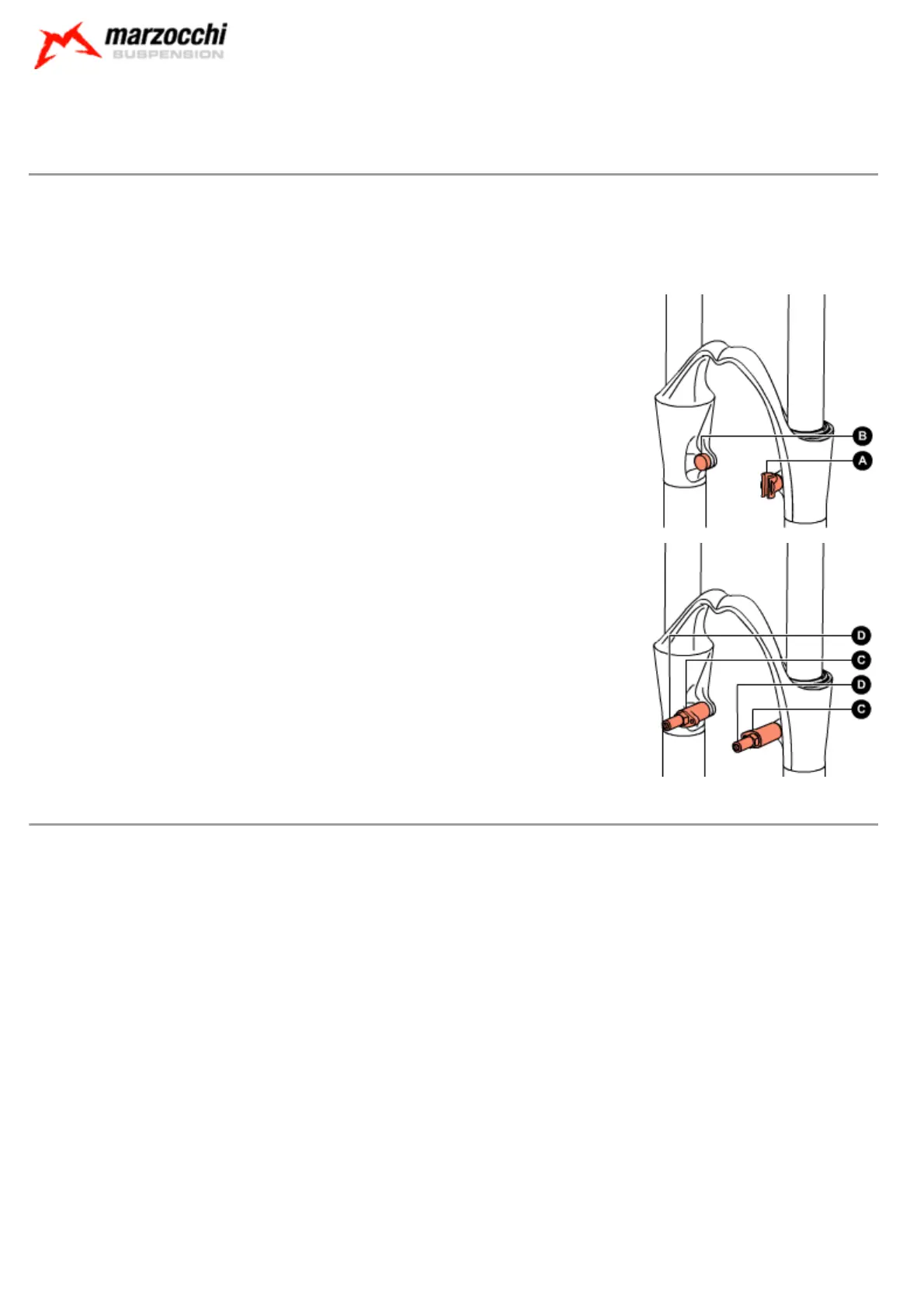

If the fork does not come standard with V-brake mounts, after removing the cable guide (A)
and the disk brake mount cap (B), install the adapter (A) and the bolt (D) on both legs, check
that the adapter is correctly oriented as shown and tighten the bolt to the recommended
tightening torque (9 Nm ±1).
On the thread of bolts (D) a special anti-unscrewing treatment has been applied; as a result,
the removed bolts cannot be re-used as they lose such treatment.
Warnings: Assembling the wheel
Install the wheel following the instructions of the manufacturer.
For a correct operation of the fork, install the wheel and proceed with the following checks:
Check the correct fork-wheel alignment by fully compressing the fork a few times. The wheel should not come into contact with any parts of the
fork.
Lift the front wheel above the ground; turn the wheel a few times to verify the correct alignment and the distance from the disk brake or the V-
brake pads. Read the instructions of the brake system manufacturer for the correct specifications.
