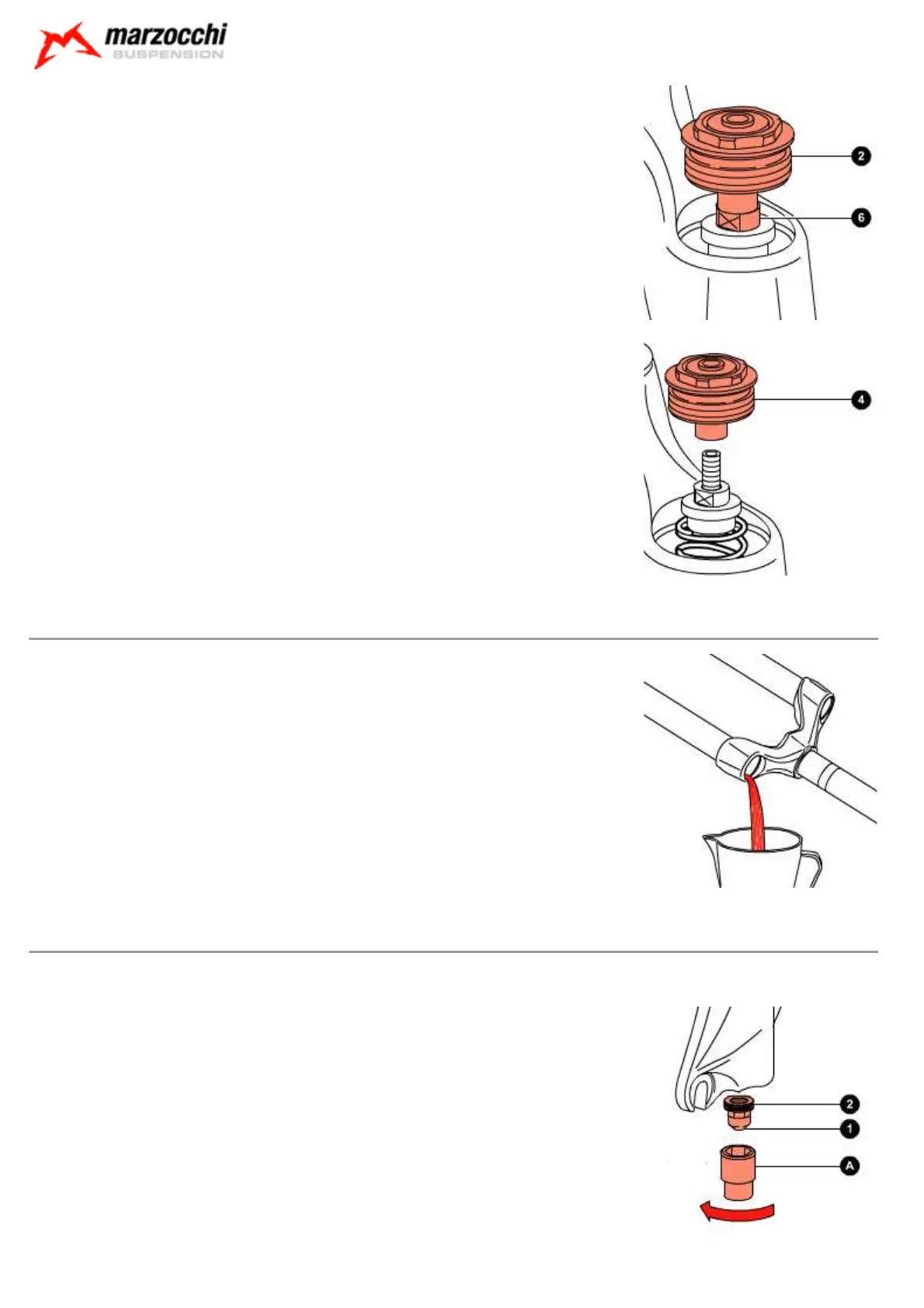

Holding locknut (6) with the 10mm spanner, use the 21mm spanner to unscrew lock cap (2) completely.
Remove lock cap (2).
Dismantling: Draining the oil
Free the fork from the vice and tip it into a container of a suitable size to drain the oil; compress the fork
a few times to help the oil flow out.
Do not pour used oils on the ground.
Dismantling: Breaking down the steering crown unit / arch-slider assembly
Use the special spanner to remove the bottom nuts. Do not use other tools.
Turn the arch-slider assembly upside down.
Using the special 12mm spanner (A), loosen the bottom nuts (1) of both legs.
Pull the bottom nuts (1) complete with O-rings (2) out of both legs.
Pull the complete ETA cartridge (9) off the left leg.
© Marzocchi Suspension
2005 - MX Comp ETA
