Assembling: Assembling the guide bushes
Insert the guide bushes using the special introducers (short type for the top bush and long type for the bottom bush, both with a
black finish). Do not use other tools.
Fit first the bottom bushes, then the top bushes.

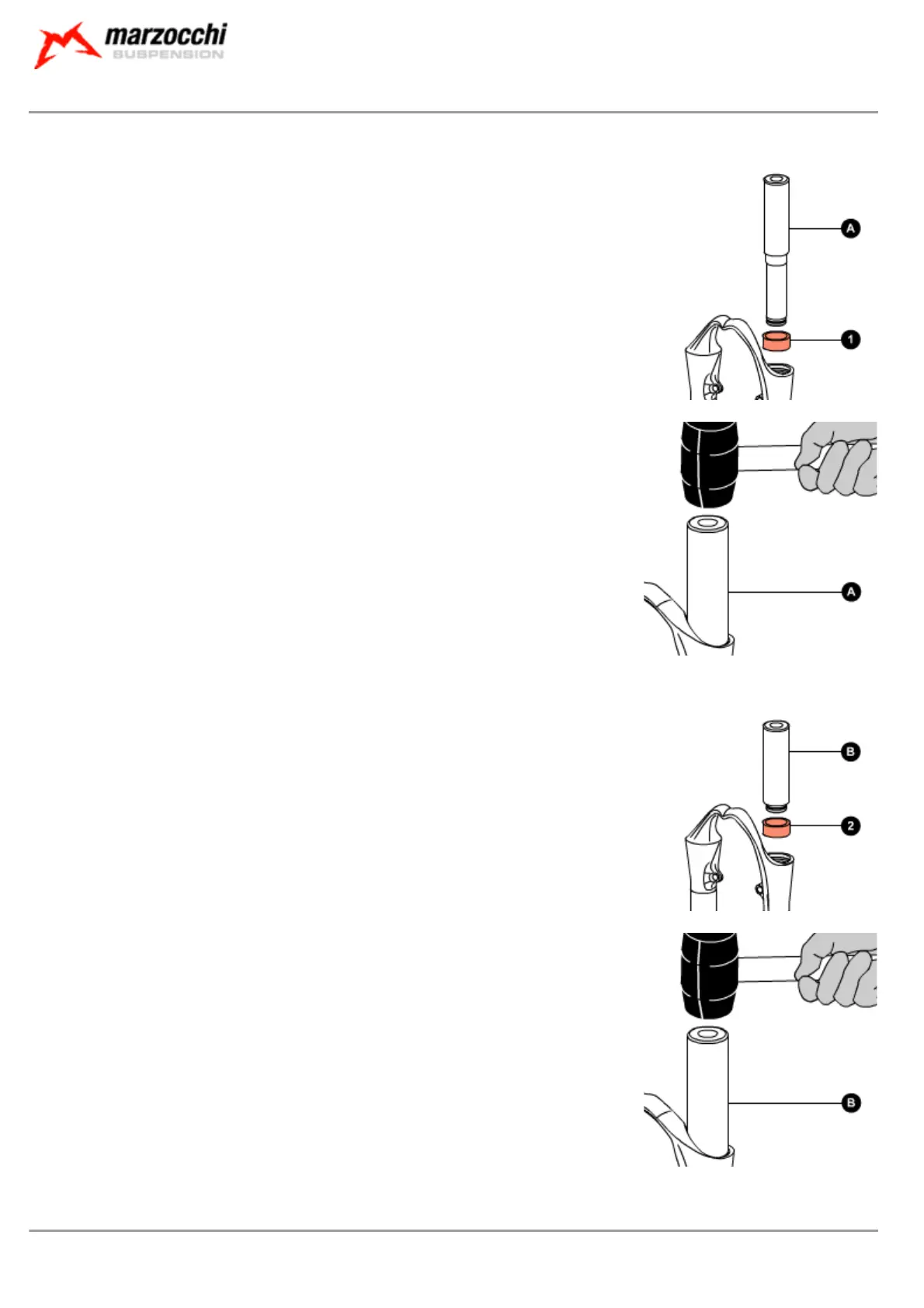

Using the long introducer (A) fit the bottom bush (1).
Using a hammer knock the introducer (A) into the arch-slider assembly.
Using the short introducer (B) fit the top bush (2).
Using a hammer knock the introducer (B) into the arch-slider assembly.
Assembling: Assembling the seals
Smear the dust seal and the sealing ring with some grease.
Insert the sealing ring (3) in its seat with the special introducer (A).
