Marzocchi MX Comp ETA 2005 - Assembling Top Left Cap

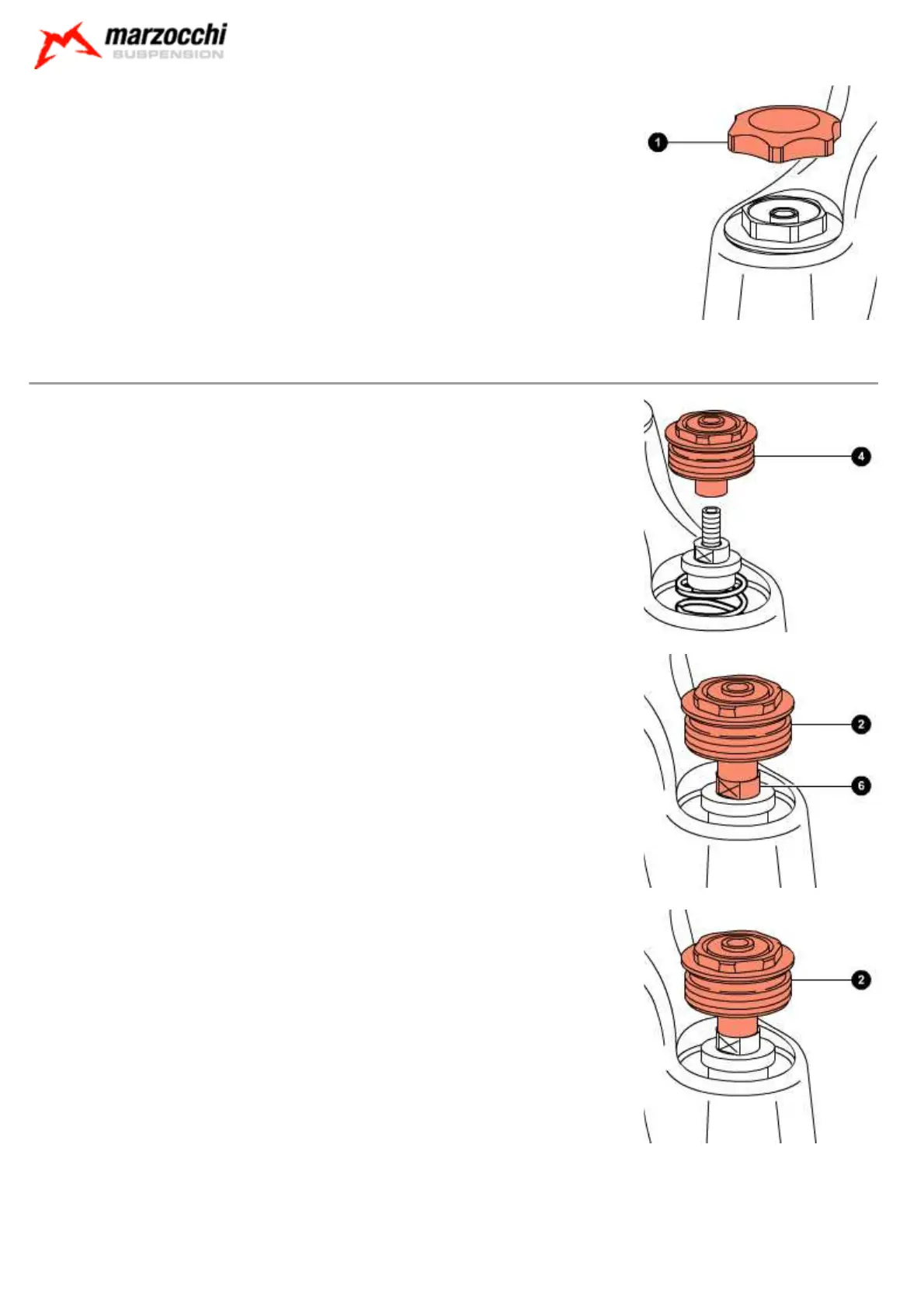

Fit the protection cap (1).
Assembling: Assembling the top left cap
Screw the lock cap (2) down on the rod of the ETA cartridge without tightening being very careful not to
damage the O-ring.
Using the 10mm and 21mm spanners, tighten locknut (6) on cap (2) to the recommended tightening
torque (6 Nm ± 1).
With the 21mm socket spanner, tighten the lock cap (2) on the steering crown to the recommended
tightening torque (10 Nm ± 1).
Fit the ETA control knob (5) and screw (4).
Using a 2mm Allen wrench, tighten the knob fixing screw (4) to the recommended tightening torque (2
Nm ± 0.5).
