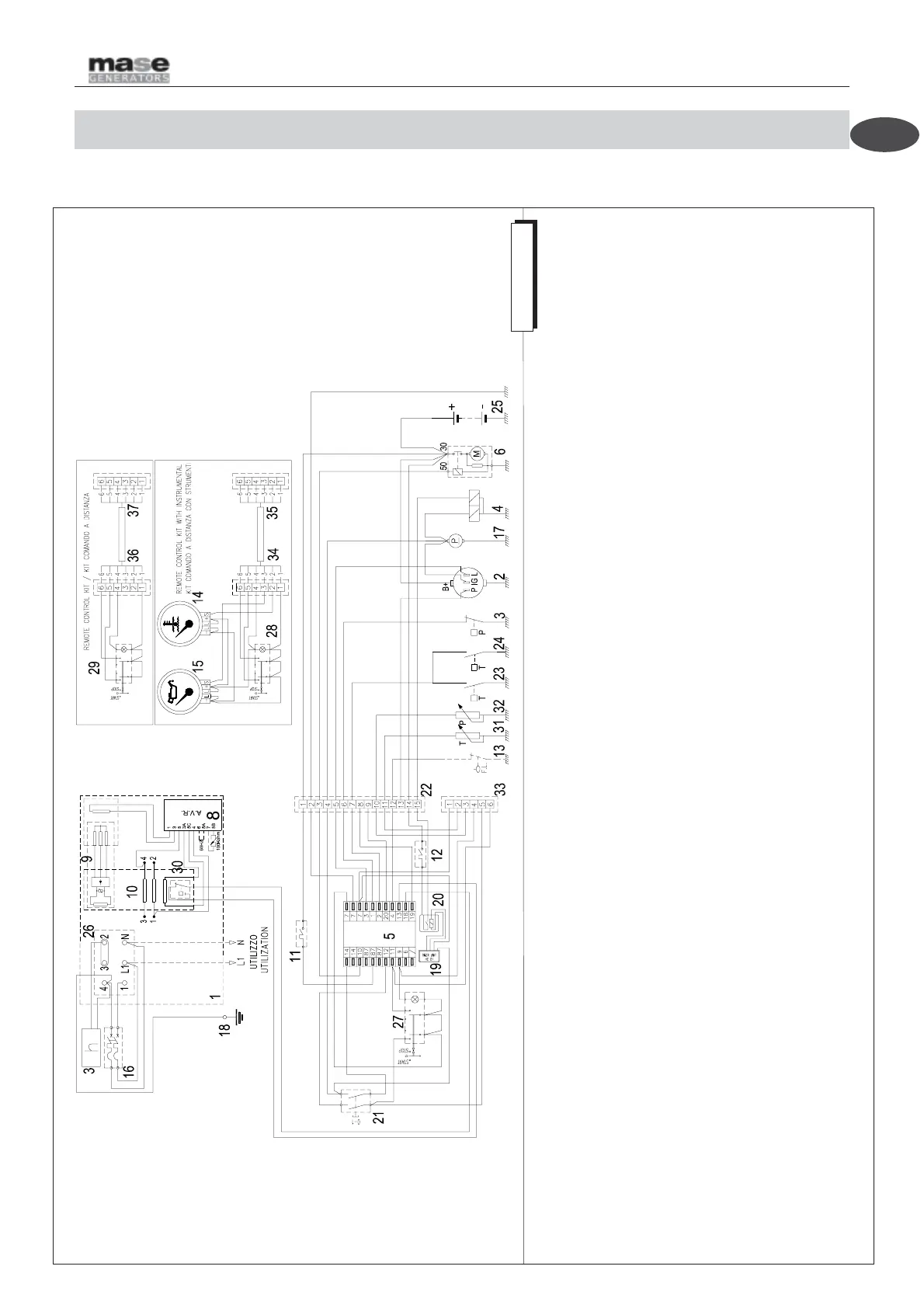

10.1 WIRING DIAGRAM IS 9
10 WIRING DIAGRAM
16 MAGNETOTHERMAL SWITCH 2P 17 FUEL PUMP 18 GROUND CONNECTION 19 TIMER UNIT 20 RELE’ 21 0/1 SWITCH 22 15 POLES CONNECTOR 23 ENGINE THERMOSTAT 24 ENGINE THERMOSTAT 25 BATTERY 26 ALTERNATOR TERMINAL BOARD 27 START-STOP BUTTON 28 START-STOP BUTTON 29 START-STOP BUTTON 30 ALTERNATOR THERMOSTAT
1 ALTERNATOR 2 BATTERY CHARGER ALTERNATOR 3 HOUR COUNTER 4 STOP ELECTROMAGNET 5 ENGINE PROTECTION MODULE 6 STARTER MOTOR 7 OIL PRESSURE SWITCH 8 ELECTRONIC VOLTAGE REGULATOR 9 ROTOR 10 STATOR 11 THERMAL SWITCH 12 THERMAL SWITCH 13 FUEL LEAKAGE FLOAT 14 TEMPERATURE GAUGE INSTRUMENT 15 OIL PRESSURE GAUGE INSTRUMENT
31 TEMPERATURE SENSOR 32 OIL PRESSURE SENSOR 33 6 POLES CONNECTOR 34 6 POLES CONNECTOR 35 6 POLES CONNECTOR 36 6 POLES CONNECTOR 37 6 POLES CONNECTOR
