NomoLine ISA Service Manual Chapter 1: Description
www.masimo.com 12 Masimo
ISA OR+ Interface
The Input Connector is located on the front of the ISA OR+ Sidestream Gas Analyzer. The
Exhaust Port is located on the rear of the ISA OR+ Sidestream Gas Analyzer.
Front View

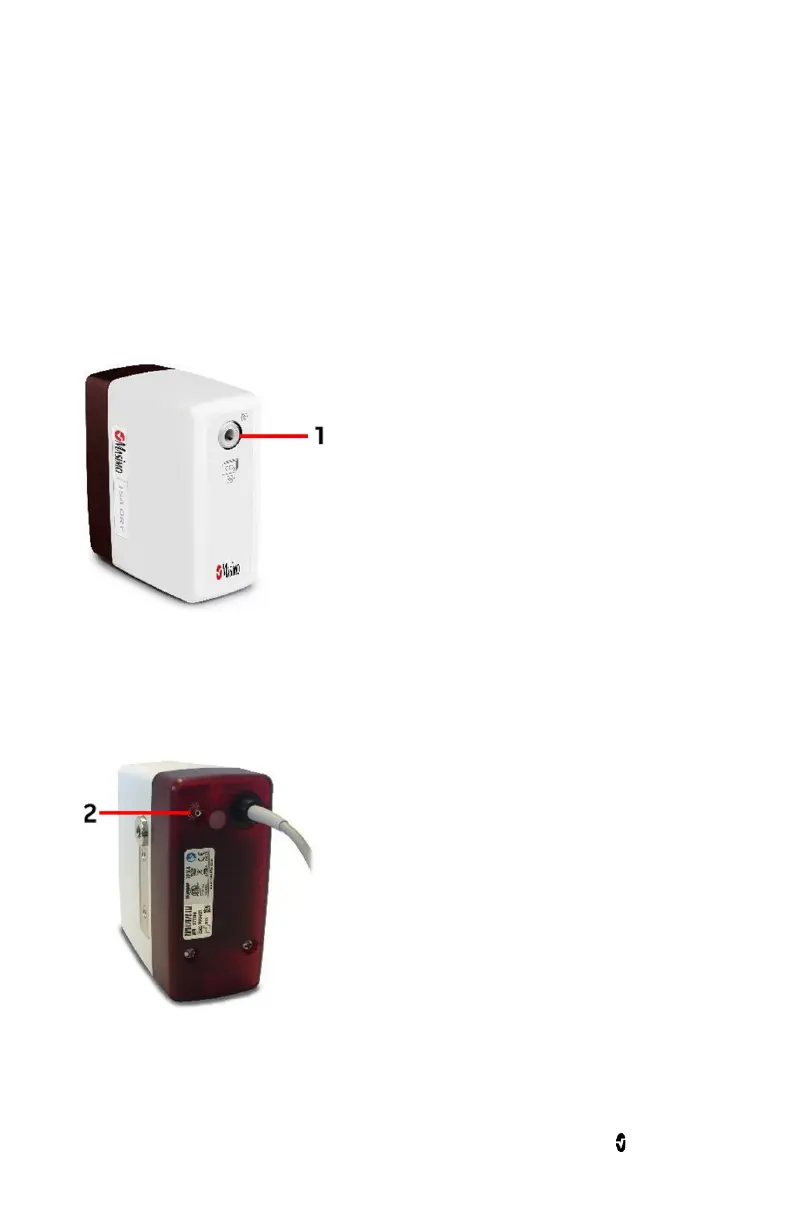

Figure 1-3. Front view of ISA OR+ Sidestream Gas Analyzer. [1] Input Connector
1 Capnography Input Connector
Allows connection for capnography measurements.
Light Emitting Gas Inlet (LEGI) Indicator provides
visual indications of capnography status. See LEGI
Indicator on page 13.
Rear View
Figure 1.4. Rear view of ISA OR+ Sidestream Gas Analyzer. [2] Exhaust Port
2. Capnography Gas Sample Exhaust Port
Exhaust port for gas samples.
