Chapter 1: Description
Features
NomoLine ISA CO2/AX+ Interface
The Input Connector is located on the front of the NomoLine ISA CO
2
and AX+ Sidestream Gas
Analyzers. The Exhaust Port is located on the rear of the NomoLine ISA CO
2
and AX+
Sidestream Gas Analyzers.
Front View

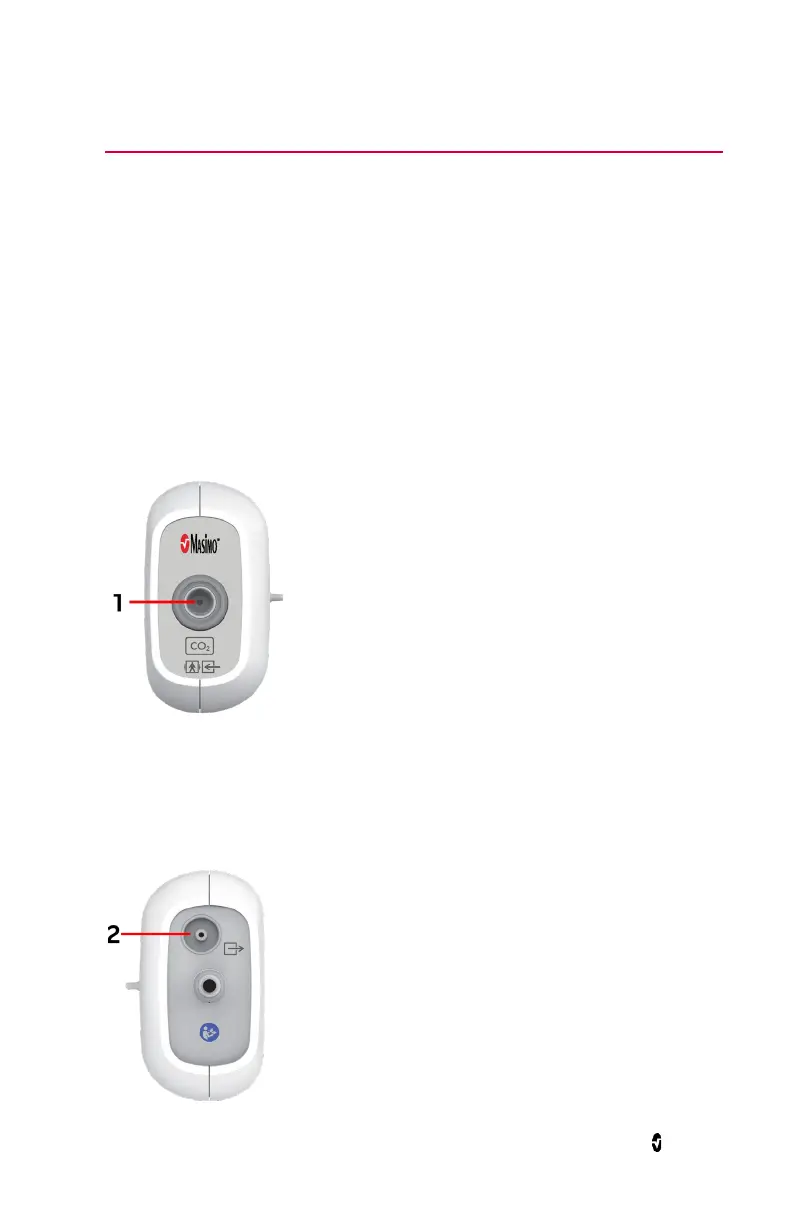

Figure 1-1. Front view of NomoLine ISA CO
2
and AX+ Sidestream Gas Analyzers. [1] Input
Connector
1 NomoLine Capnography Input Connector
Allows connection to NomoLine® for capnography
measurements. Light Emitting Gas Inlet (LEGI) Indicator
provides visual indications of capnography status. See LEGI
Indicator on page 13.
Note: CO
2
is shown, AX+ is similar.
Rear View
Figure 1-2. Rear view of NomoLine ISA CO
2
and AX+ Sidestream Gas Analyzer. [2] Exhaust
Port
2. Capnography Gas Sample Exhaust Port
Exhaust port for gas samples.
Note: CO
2
is shown, AX+ is similar.

Masimo NomoLine ISA AX+ Specifications

General

Brand	Masimo
Model	NomoLine ISA AX+
Category	Medical Equipment
Language	English
