Masimo NomoLine ISA AX+ User Manual

NomoLine ISA Service Manual Chapter 2: Maintenance Procedures
www.masimo.com 19 Masimo
Maintenance Kit Procedures
Overview
The following information describes the different steps that should be performed during
yearly maintenance of the NomoLine ISA system or whenever the gas readings are
questionable.
When assembling the maintenance kit components for the different procedures, make sure
that all connectors are tightened firmly and verify that the profiled sealing on the Nomo
Connector is undamaged (as shown).
Pre-Maintenance Check
Setup

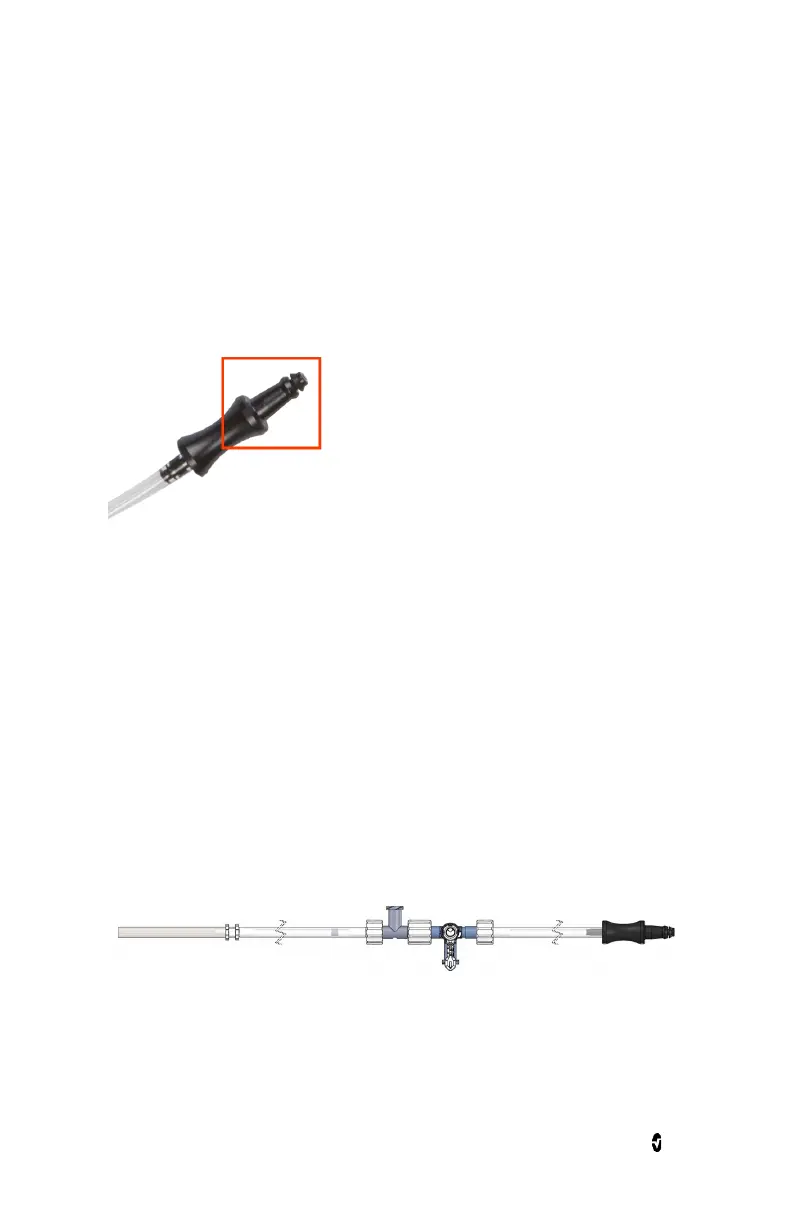

Assemble the following components from the NomoLine ISA Maintenance Kit as shown in
figure 1-5. Refer to Maintenance Kit Components on page 14 for component identification.
• Nomo connector with tubing (connects to the NomoLine ISA system Input
Connector)
• Flow-check device with silicone tubing (connects to NomoLine ISA system Exhaust
Port)
• 4-way stopcock lever set in the position shown
• 3-way connector
Figure 1-5
Procedure
1. Make sure the NomoLine ISA system is powered ON.
2. Connect the NomoLine ISA Maintenance Kit to the NomoLine ISA system Input
Connector. See NomoLine ISA CO2/AX+ Interface on page 11 or ISA OR+ Interface
on page 12.
3. Set the 4-way stopcock lever in the position shown in figure 1-6.
