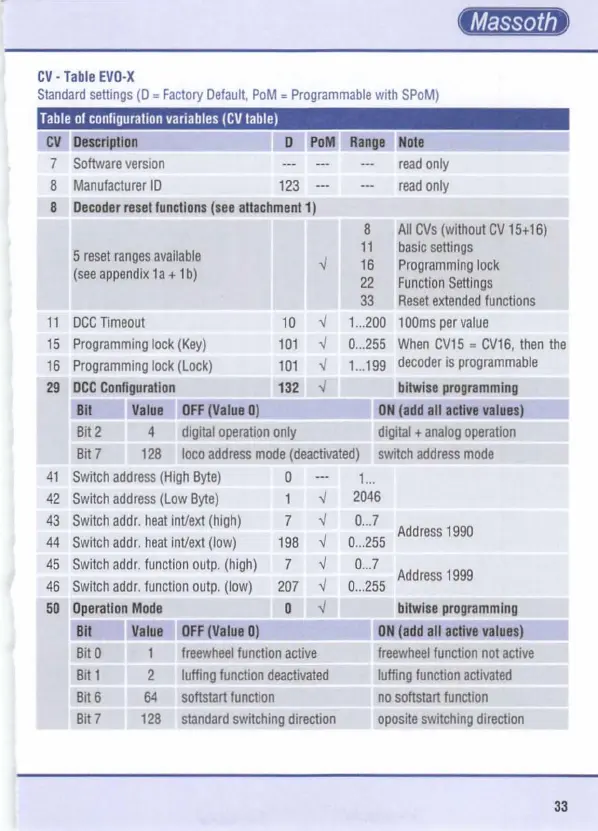

CV · Table EVO·X
S tandard settings (0 = Factory Default, PoM = Pr ogrammable with SPoM)
Table of configurahon variables (CV table)
CV Descrlptlon
D
PoM Range
Note
7 Software version read only
8
Manufacturer ID
123 read only
8
Decoder reset funcflons (see allachment 1)
8 All CVs (without CV 15+ 16)
5 reset ranges available
11 basic settings
✓
16 Programmlng lock
(see appendix 1 a + 1 b)
22 Function Settings
33
Reset extended functions
11 DCC Timeout
10
✓
1...200 1 OOms per value
15 Programming lock (Key) 101
✓
0 .. . 255 When CV15 = CV16, then the
16 Programming lock (Lock) 101
✓
1 ... 199
decoder is programmable
29 DCC Configuration 132
✓ bitwise programmlng
Bil Value OFF (Value 0) ON (add all actlve values)
Bit2 4 digital operation only digital + analog operation
Bit 7 128
loco address mode (deactivated) switch address mode
41 Switch address (High Byte)
0
1...
42
Switch address (Low Byte) ✓
2046
43
Switch addr. heat inVext (high)
7
✓ 0 . .. 7
Address 1990
44 Switch addr. heat lnVext (low) 198
✓ 0 ... 255
45 Switch addr . function outp. (high)
7
✓ 0 . .. 7
Switch addr. function outp . (low)
✓
0 . .. 255
Address 1999
46 207
50
Operaflon Mode
0
✓ bltwlse programmlng
Bit Value OFF (Value 0) ON (add all actlve values)
Bit 0 1 freewheel function active freewheel function not active
Bil 1 2 lufflng function deactivated luffing function activated
Bi t6 64
softstart functton no softstart function
Bit 7 128 standard switching direction oposite switching direction
33
