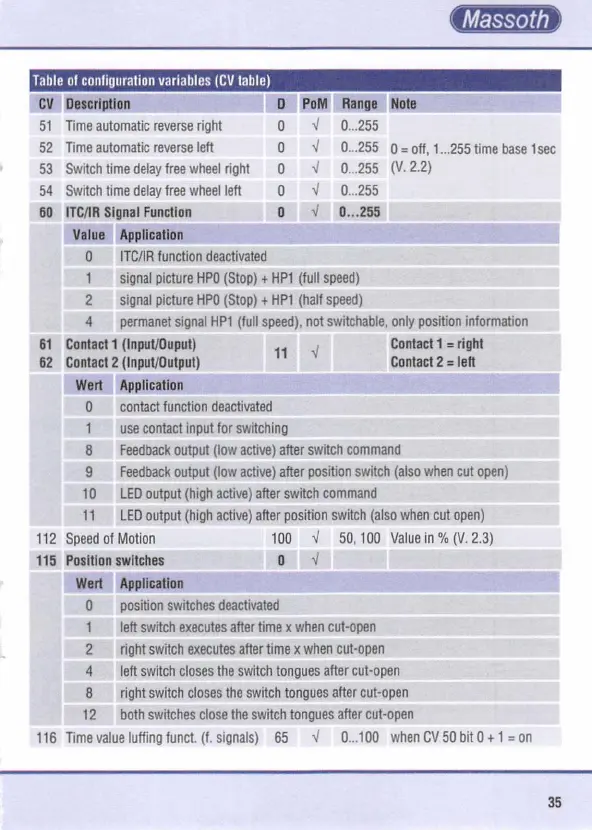

Tahle of conhguration variables (CV tahle)
CV Descrlptlon D PoM
Range
Note
51
Time automatic reverse right
0
✓ 0 ... 255
52
Time automatic reverse left
0
✓
0 ... 255
0 = oft, 1...255 time base 1 sec
53
Switch time delay tree wheel right
0
✓ 0 ... 255
(V . 2.2)
54
Switch time delay free wheel left
0
✓ 0 ... 255
60
ITC/lR Signal Funclion
0
✓
0 ... 255
Value
Appllcatlon
0
ITC /IR function deactivated
1
signal picture HP0 (Stop) + HP1 (full speed)
2
signal picture HP0 (Stop) + HP1 (half speed)
4
permanet signal HP1 (full speed) , not switchable, only position information
61
Contact 1 (lnpuVOuput)
11
✓
Contact 1 = right
62 Contacl 2 (lnpuVOutpul)
Contact 2 = left
Wert Applicatlon
0 contact function deactivated
1 use contact I nput for swltching
8 Feedback output (low active) after switch command
9 Feedback output (low active) after position switch (also when cut open)
10 LED output (high active) after switch command
11 LED output (high active) alter position switch (also whe n cut open)
11 2 Speed of Motion 100 ✓ 50 , 100 Value in % (V. 2.3)
115 Position switches 0 ✓
Wert Applicatlon
0 position switches deactivated
left switch executes after time x when cut-open
2 right switch executes alter time x when cut-open
4 left switch closes the switc h tongue s after cut-open
8 right switch c lo ses the switch tongu es after cu t -o pen
12 both switches close the switch tongues after cut-open
116 Time value luffing tunet. (f. slgnals) 65 ✓ 0 ... 100 when CV 50 bit 0 + 1 = on
