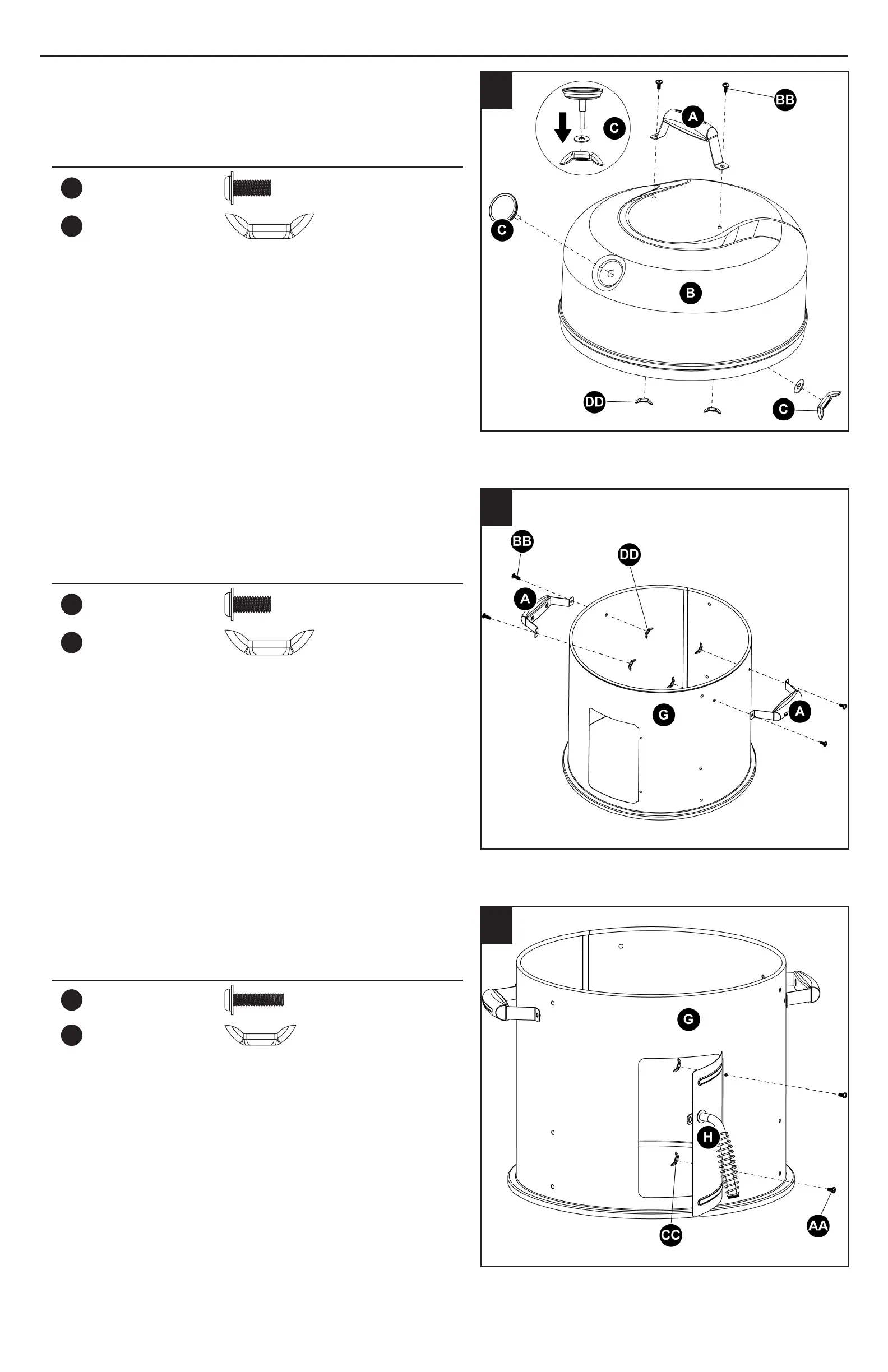

ASSEMBLY INSTRUCTIONS
1. Attach temperature gauge (C) to lid (B) using one wing nut (C).
Attach handle (A) to lid (B) using two screws (BB) and two wing
nuts (DD).
Hardware used
BB


DD


1
2. Attach handles (A) to upper smoker body (G) using four screws
(BB) and four wing nuts (DD).
Hardware used
BB


DD


2
3. Attach door (H) to upper smoker body (G) using two screws (AA)
and two wing nuts (CC).
Hardware used
AA


CC


3
