9
ENSAMBLAJE
3

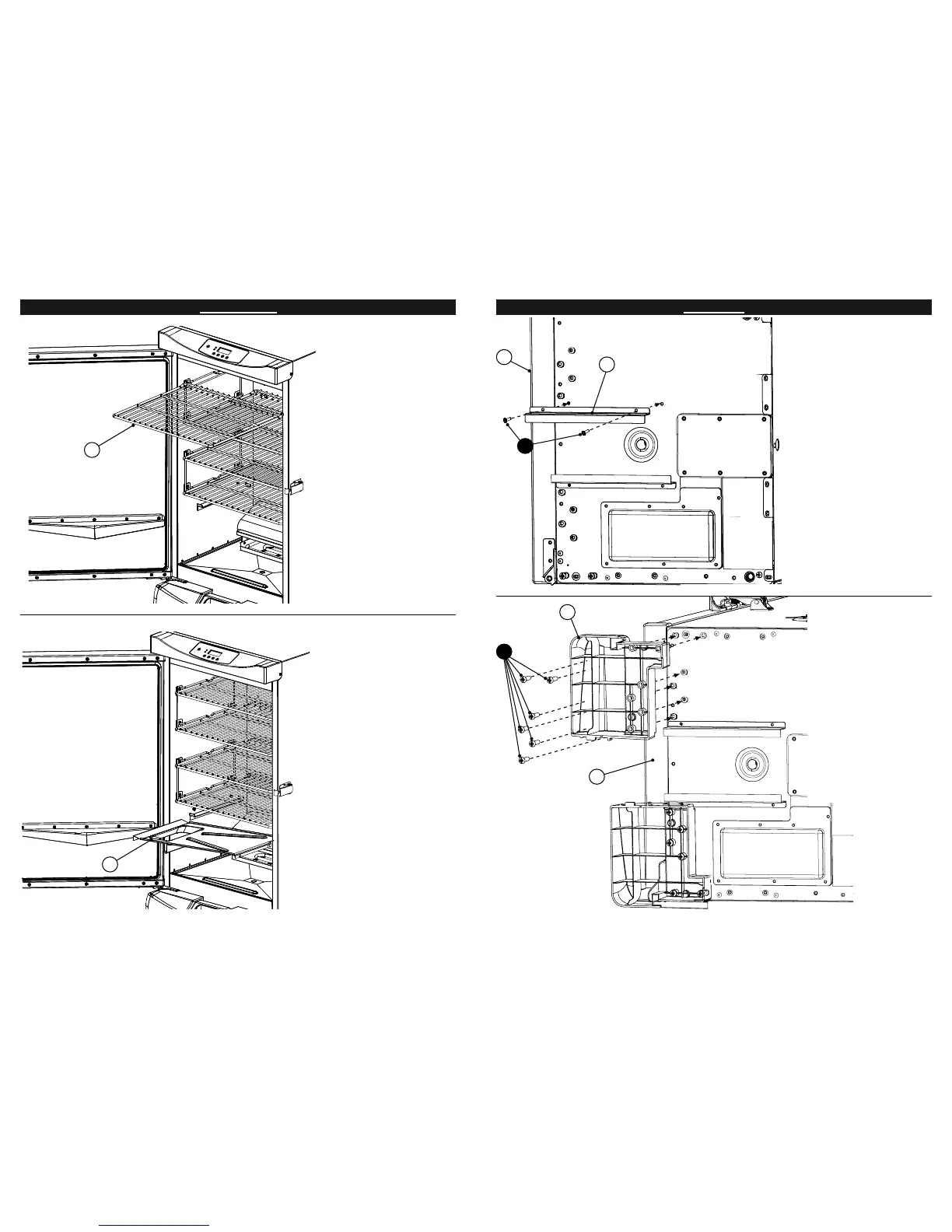

PASO 8
Alinee los orifi cios guía en
el defl ector de goteo (4) con
tarugos en la parte interior del
cuerpo del ahumador. Pre-
sione el defl ector de goteo
hacia abajo para asegurarlo
en su lugar.
4
PASO 7
Coloque las rejillas para
ahumar (3) dentro del
ahumador como se muestra.
6
ASSEMBLY
STEP 1
Remove all components
on inside of smoker before
beginning assembly.
Carefully position smoker
on side as shown.
Alternatively, the smoker
can be positioned upside
down for assembly.
However, make sure
styrofoam packaging
remains on top to prevent
damage to control panel.
Attach grease tray bracket
(19) to bottom of smoker
body (1) using screws (B).
Repeat step for remaining
grease tray bracket.
18
19
1
1
A
B
STEP 2
Secure front foot (18) to
bottom of smoker body (1)
using screws (A).
Repeat step on opposite
side for remaining front
foot.
(R)
(L)
