Masterbuilt 20078715 User Manual

7

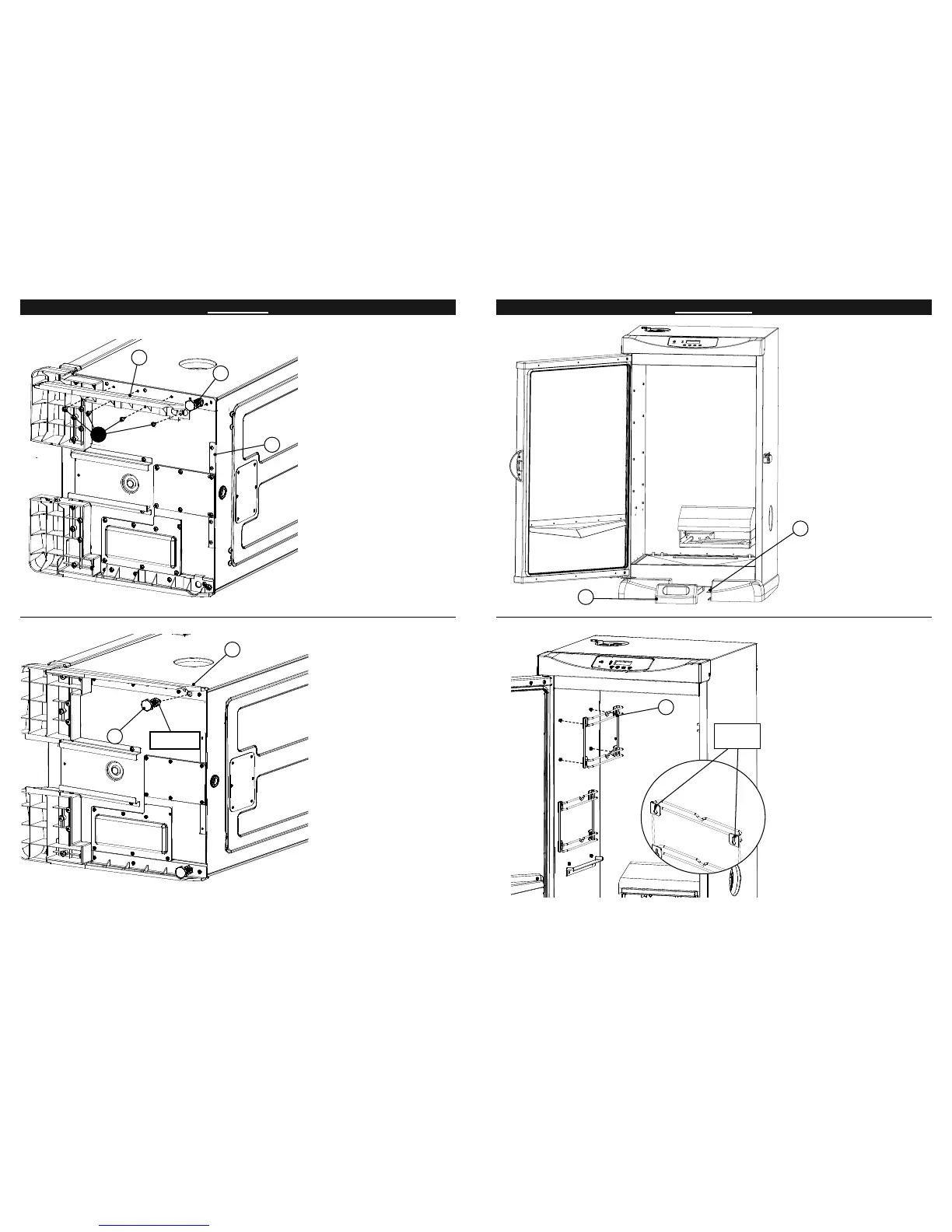

STEP 3
Remove adjustable screw leg
(10). Set aside to be used in
Step 4.
Attach side panel (20) to
smoker body (1) using screws
(B) as shown.
Repeat step on opposite side
for remaining side panel.
STEP 4
Insert adjustable screw leg
(10) through bottom of side
panel (20) as shown, and
into smoker body.
Repeat step on opposite
side for remaining
adjustable screw leg.
Note: When unit is upright,
set adjustable screw leg
height by turning clockwise/
counterclockwise, so that
smoker is level. Once level,
secure leg positions by
tightening tension nuts.
ASSEMBLY
10
20
20
10
B
1
TENSION NUT
(R)
8
ENSAMBLAJE
PASO 5
Deslice la bandeja de grasa
(12) en las abrazaderas de
la bandeja de grasa (19).
12
19
PASO 6
Alinee los orifi cios guía en los
soportes de la rejilla (5) con
tarugos en la parte interior del
cuerpo del ahumador como se
muestra. Presione el soporte de
la rejilla hacia abajo para asegu-
rarlo en su lugar.
Repita para los soportes de la
rejilla restantes a ambos lados.
5
ORIFICIOS
GUÍA
