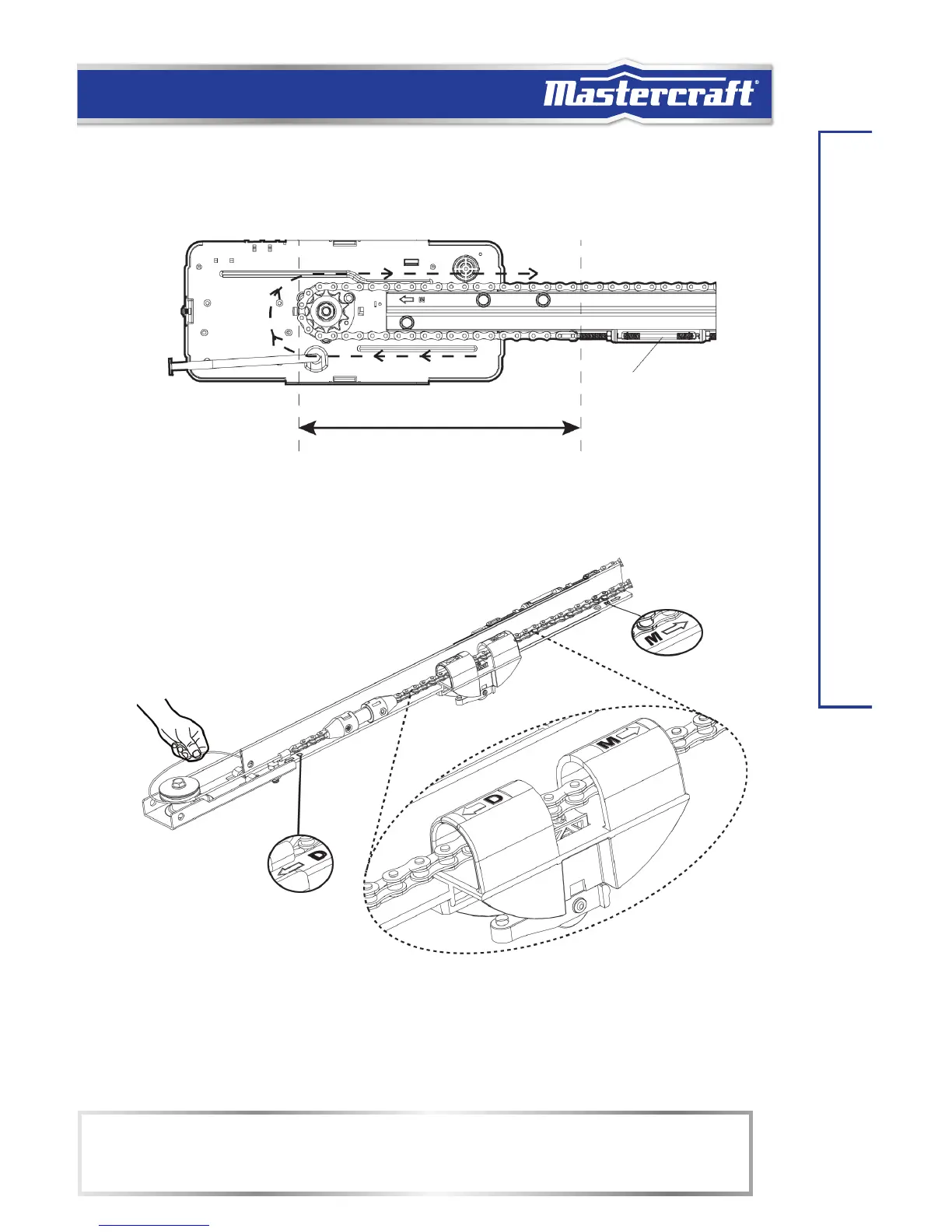

ASSEMBLE THE T-RAIL
Align the Chain on the Sprocket
Start aligning the chain by placing the turnbuckle 10" (25 cm) from the sprocket. Wrap the
chain around the sprocket. The sprocket teeth must engage the chain as shown.
Place the Cable on the Pulley
Place the cable around the pulley at the end of the rail.
Start from Here
10" (25 cm)
NOTE:
• Ensure chain/cable passes through the trolley guides. Insert the trolley guides into the chain traveller until
you hear a click when the chain traveller is completely seated into the trolley.
