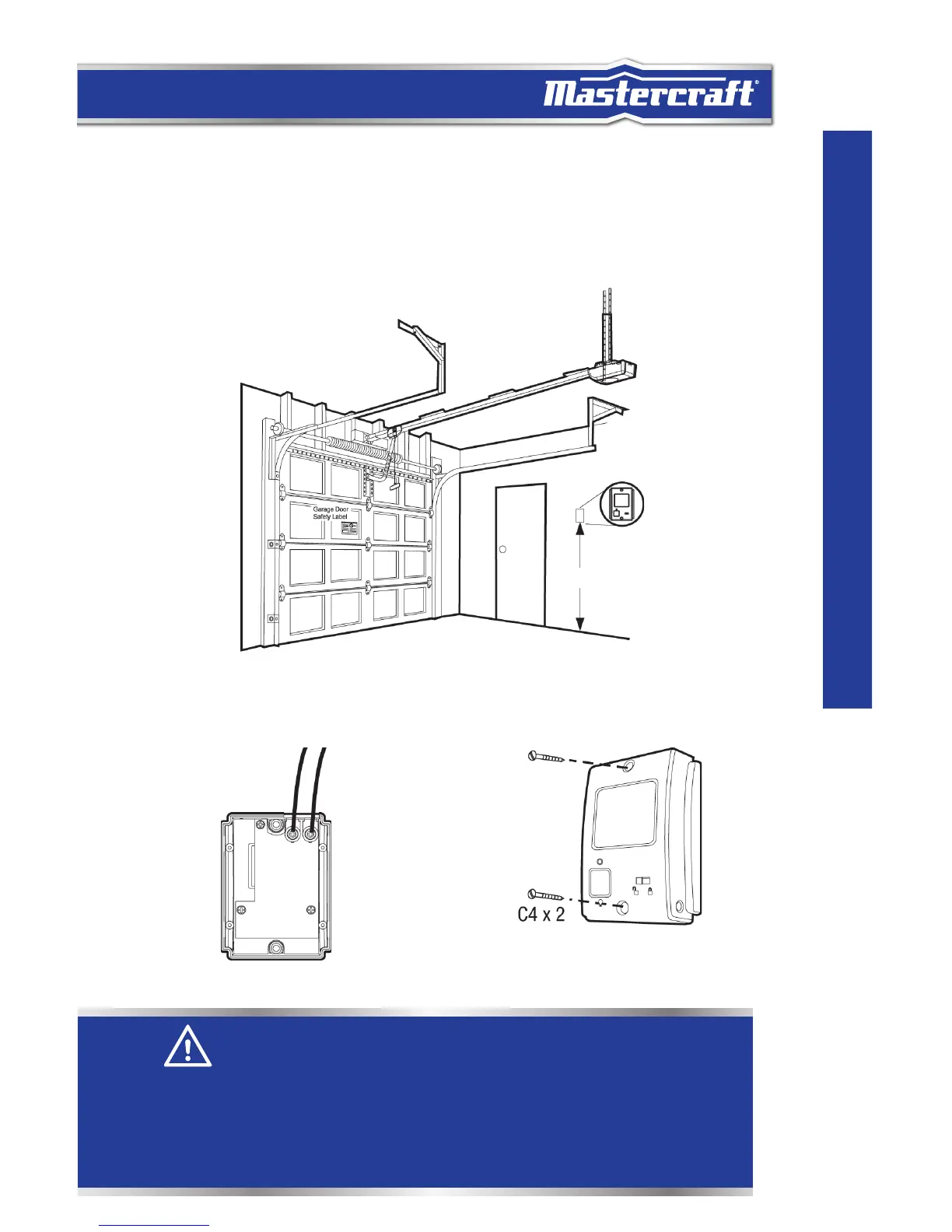

INSTALL THE WALL CONSOLE
Place the wall button or wall console at least 5’ (1.5 m) above the finished floor or the
topmost step.
5' (1.5 m)
Connect the bell wires to the 2 terminal
screws. Wires are not polarity sensitive.
Secure the wall console with two screws.
WARNING
• Wall console must be installed within sight of the garage door, out of reach to children at a
minimum height of 5' (1.5 m) and away from all moving parts of door.
• Be sure power is not connected before installing the wall console.
• Wall console should only be activated when door can be seen clearly, is properly adjusted
and there are no obstructions to door travel.
• Always keep garage door in sight until completely closed. Never permit anyone to cross
path of closing garage door.
