INST
ALL
THE HEADER BRACKET
Connect the T
-Rail to the Header Brack
et
P
osition The Opener

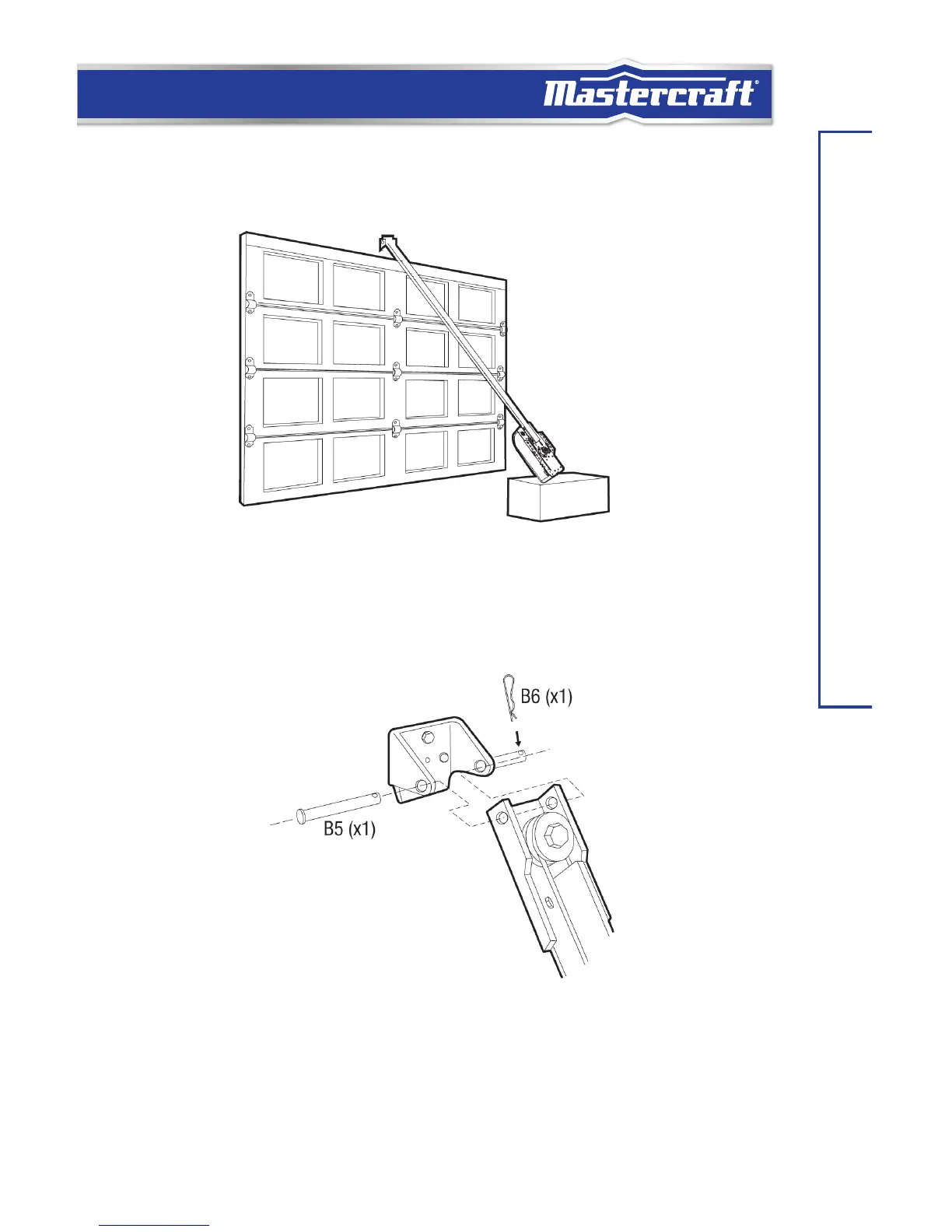

Position the pulley bracket against the header bracket.
Position the opener on the floor
with packaging material as
protective base.
Align the bracket holes and join
with a clevis pin and hitch pin as
shown.
20
22
