INSTALL SAFETY BEAM SENSOR

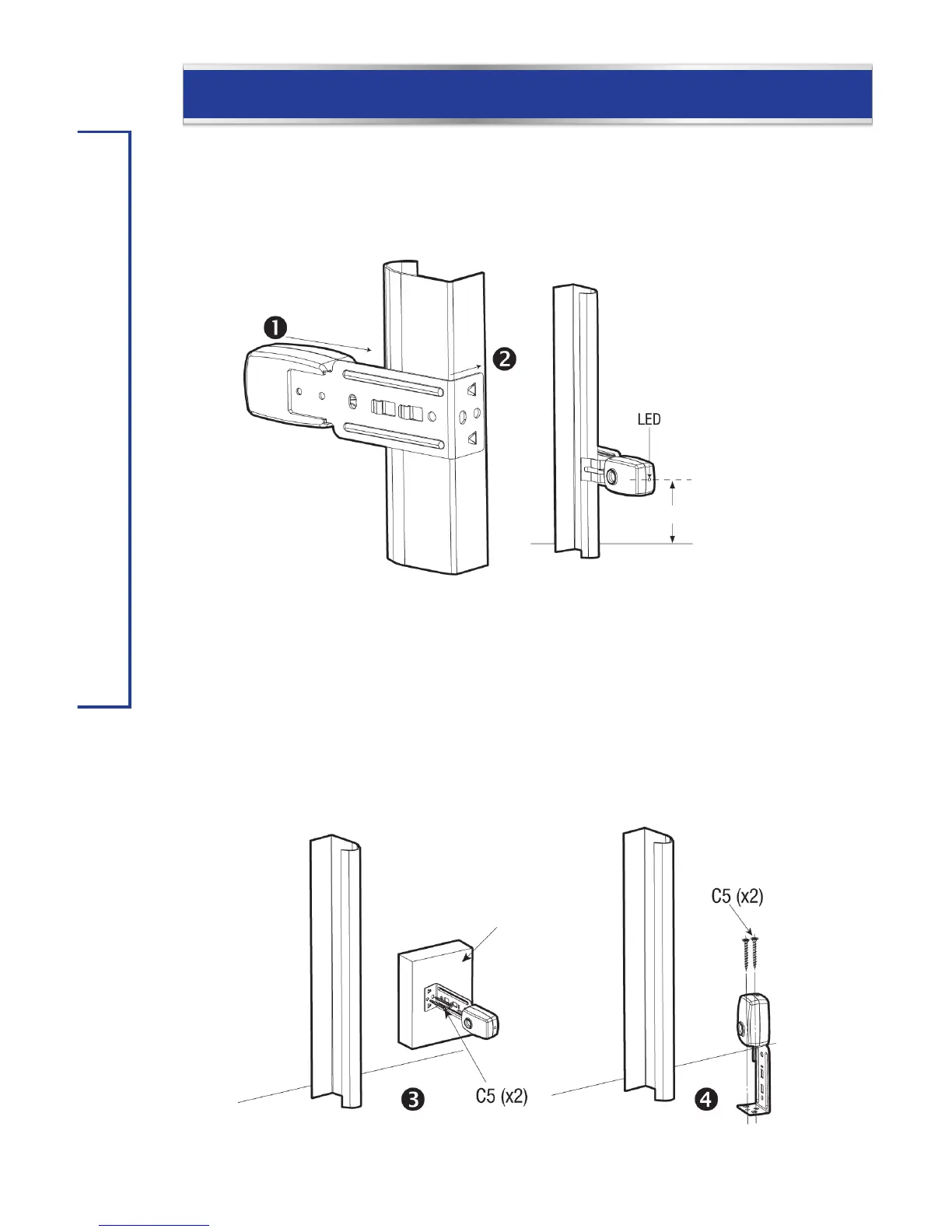

Mounting the Sensor on the Door Track
Clip the mounting bracket onto the garage door track. Ensure the sensor is mounted between
4" (10 cm) and 6" (15 cm) above the ground. Follow the same procedure to install the sensor
on the other track ensuring the sensors are facing each other.
4 to 6" (10 to 15 cm)
Mounting the Sensor on the Wall (Optional)
For wall mounting, use a wooden block to increase depth until there is enough clearance for
the sensor beam to be unobstructed.
Mounting the Sensor on the Floor (Optional)
For floor mounting, use a wooden block to elevate the sensor brackets, if necessary. Ensure
the sensor is no higher than 6” (15 cm) above floor. Fasten the screws to the floor with
concrete anchors (not included).
Wood Block
To Next Page
