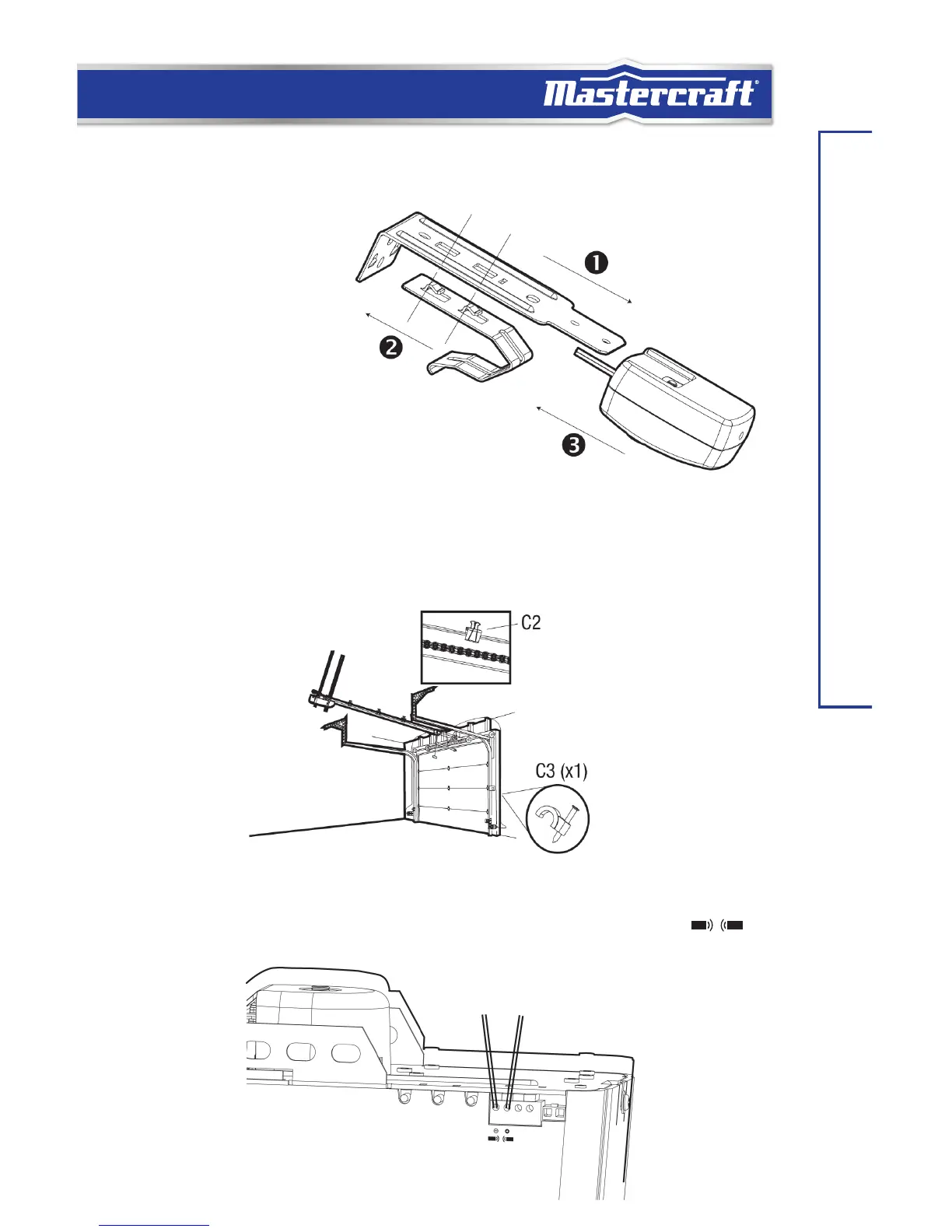

INSTALL SAFETY BEAM SENSOR
Route and Secure the Sensor Wires
Run the wires up the wall, then over to the centre of the door. Secure the wires to the wall
with wire holders. Run the wires along the top of the T-rail and secure them with 4 wire clips
provided.
Connect the Wires to the Opener
Twist like-coloured wires together. Connect the wires to the safety sensor terminals .
Wires are not polarity sensitivity (either wire to either terminal).
Black White
NOTE:
Remove the spring bracket from the mounting bracket if installing to the wall or floor.
1. Slide the sensor from the
mounting bracket.
2. Slide the spring bracket
from the mounting bracket.
3. Re-install and secure the
sensor to the mounting
bracket.
