Digital Pump Drive Operating Manual Masterflex
Section 3
Operation
is allows the user to input a current signal to control the RPM. e
user has an option to adjust the minimum, maximum and middle set

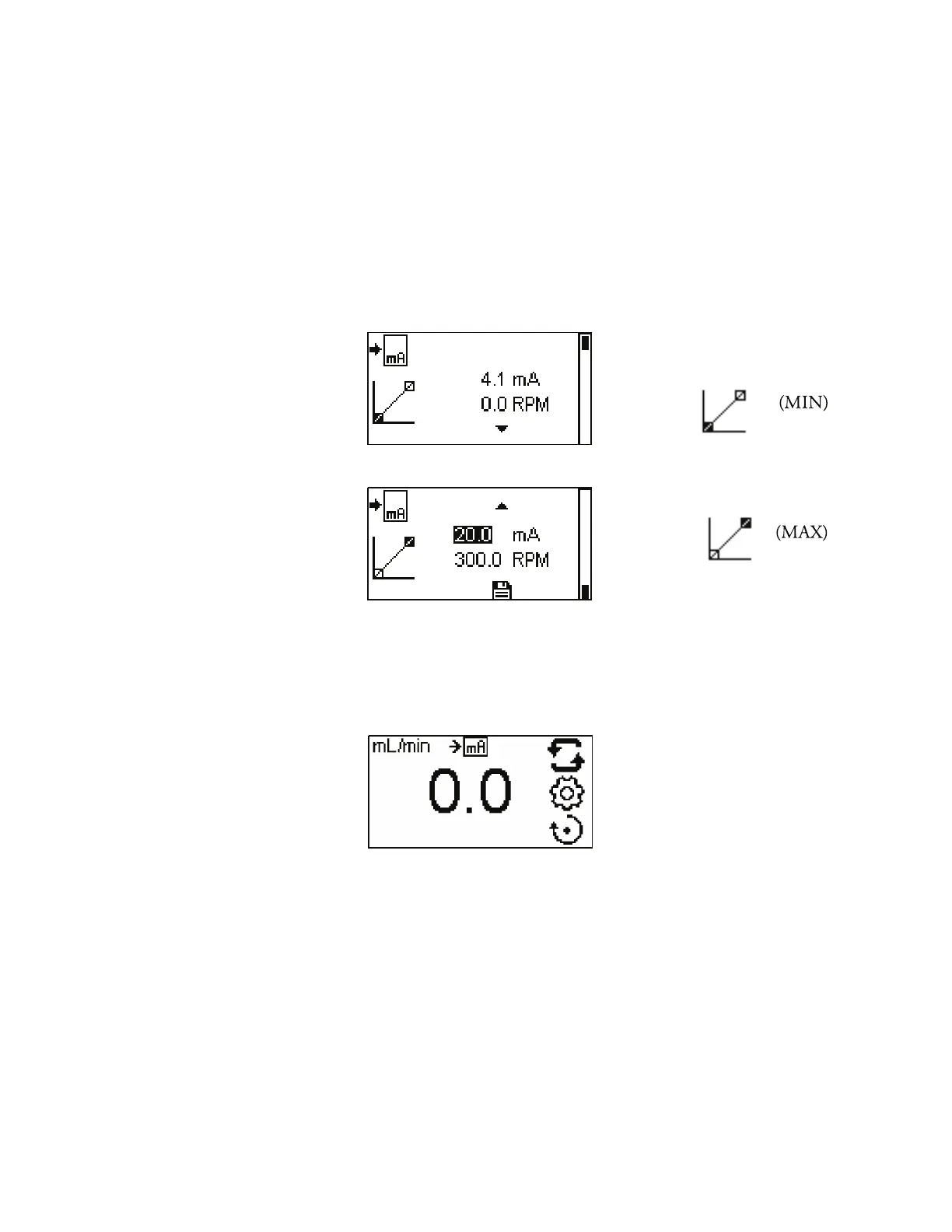

points for current and RPM. By default the minimum (MIN) current is
set to 4.1 mA and the RPM is set to 0.0. e maximum (MAX) is set to
20.0 mA and the RPM is set to maximum. e scaling can be inverted, if
necessary. e RPM is linear between these two points. After both
setpoints have been adjusted, save both setpoints from the upper setpoint
setting screen by highlighting the save icon and pressing ENTER.
To confirm CURRENT INPUT MODE is ON, press the BACK key
until the CONTINUOUS PUMP MODE screen appears. e Current
input icon will be displayed.
NOTE: When Current Input is selected the drive will not start until the
CURRENT INPUT is ON and in CONTINUOUS PUMP MODE.
Remote Control
Current Input Menu
(continued)
