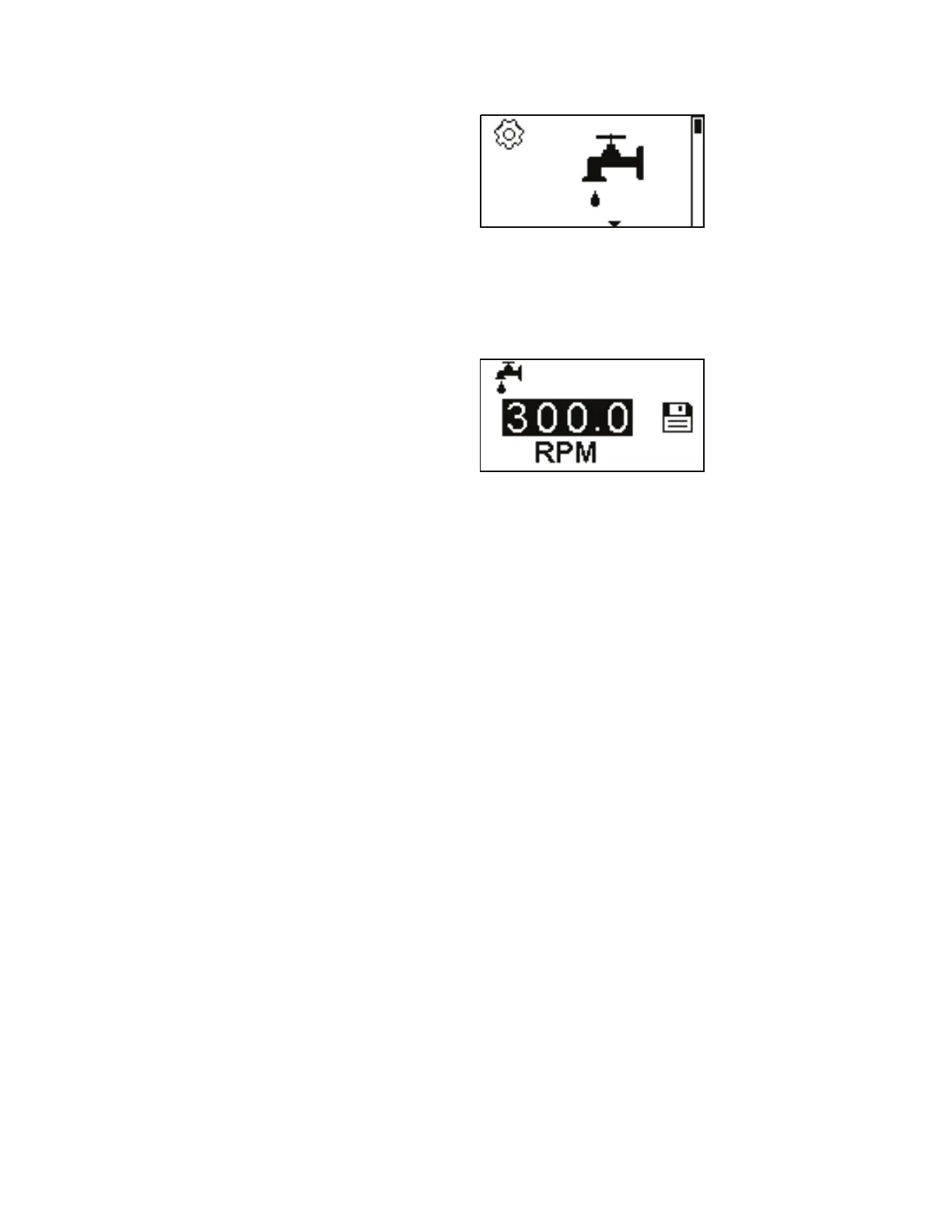

Figure 3-18. Copy Flow Rate Menu Screens.
NAVIGATION: From the SETTINGS MENU select the Flow Rate
(RPM only) screen, shown above, and press ENTER.
FLOW RATE (RPM only): When the entire rate field is highlighted, press
ENTER. Press and hold the UP or DOWN key to change the RPM. e
digits can also be navigated individually using the UP/DOWN arrows;
switch between digits by using the ENTER key. After selecting an optimal
flow rate, press ENTER again to validate. Press the back key to exit edit
mode and save. (NOTE: RPM is the only unit available in Copy Mode.)
Copy Flow Rate Menu
3-34 MASTERFLEX
®
Digital Pump Drive Operating Manual Masterflex
Section 3
Operation
