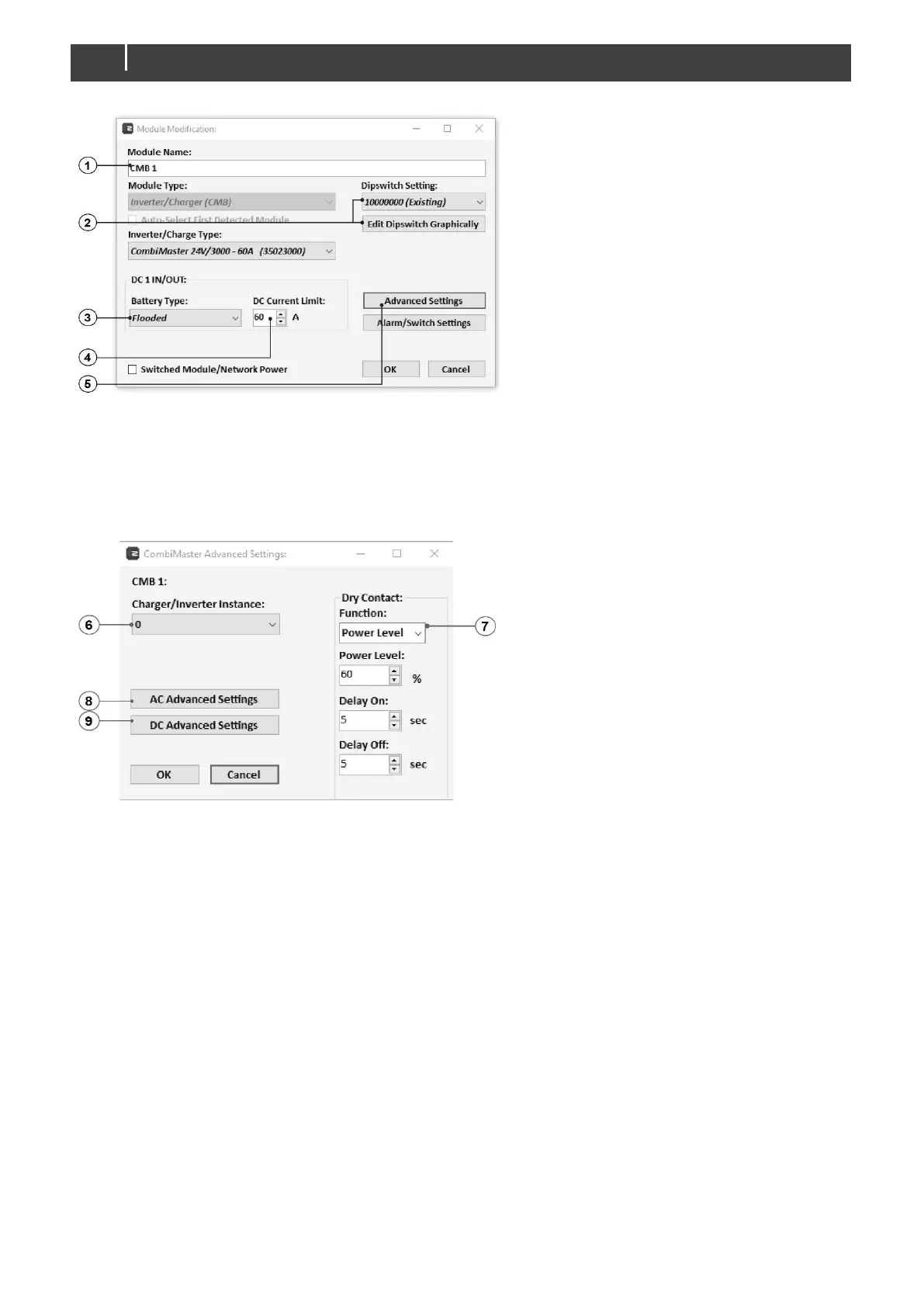

1. Enter an understandable Module
Name.
2. Each device on a CZone network has a
unique CZone address; the Dipswitch.
This number must match the physical
DIP switch settings. When connected to
the system: either select one from the
drop-down list or edit graphically.
3. Select the Battery Type.
4. Enter the DC Current Limit.
5. Options:
- Press OK to save the settings and
exit.
- Press Alarm/Switch Settings and
continue with step 14.
- Press the Advanced Settings button
and continue with the next step to
configure advanced options.
6. NMEA2000 Instances are used to
differentiate between multiple monitoring
sources.
7. From the Function drop-down list,
select the required Dry Contact alarm
function:
- Power level (inverter output power
level);
- Alarm (has no additional settings).
8. Option: press AC Advanced Settings
and go to step 10.
9. Option: press DC Advanced Settings
and go to step 12.
Or press OK to save the settings and
return to the Module Modification window.
