MLI Ultra 12/1250, 24/1250 – User and Installation Manual
17
Field
Description
Value
Event x source
Select an event that triggers an action, for example Relay
open.
See Event source
list
Event x target
Select the device that should act, for example the charger.
Selectable targets
are device
dependent
Event x command
Select the parameter that must be changed on the target
device, for example No connection.
See command list of
the selected device

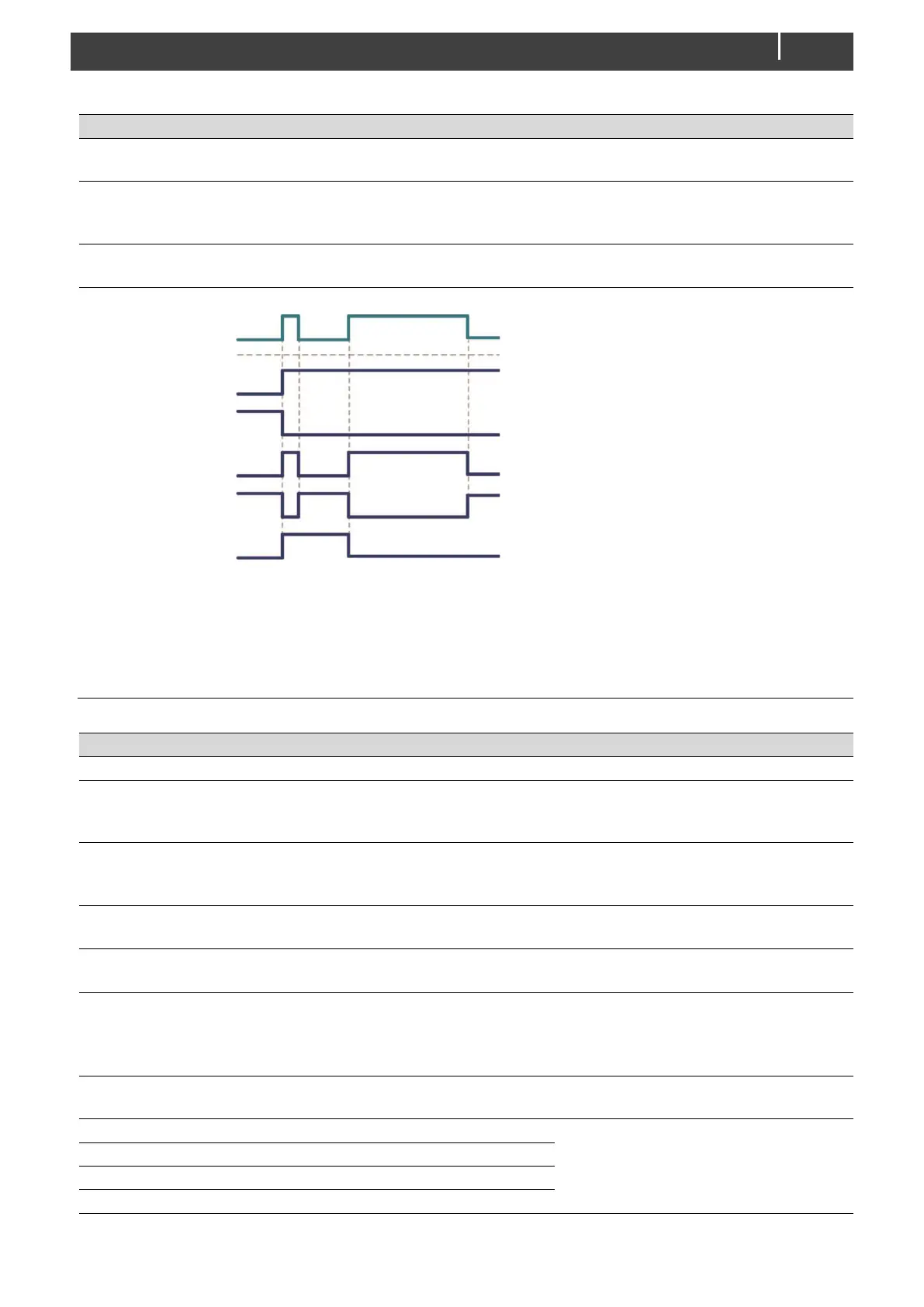

Event x data
Data translates the input into an output.
• On: status changes to On at first input signal.
• Off: status changes to Off at first input signal.
• Copy: status follows input signal.
• Copy invert: status follows opposite of input.
• Toggle: status changes at 1
st
signal and back at the 2
nd
.
Off, On, Copy,
Copy Invert, Toggle
Events sources
Event source
Condition
Comments
Disabled
(no event programmed)
Battery Safety
Battery Safety event occurred and the
safety relay is triggered to disconnect
the battery from loads and charger.
See page 29 for what to do if the
battery was switched-off.
Stop charge
Battery voltage > 14.5V/29V (12V/24V
battery), or voltage or temperature of
one of the individual cells is too high.
Strongly recommended event!
Charging
Battery charging current > 1A
Indicates that the battery is being
charged
Capacity low
State of Charge < Capacity low
See Configuration tab - Event levels
for adjustment of the threshold level
Capacity very low
State of Charge < Capacity very low
See Configuration tab - Event levels
for adjustment of the threshold level
See the related step of the
installation procedure.
Battery full
State of Charge > Battery full.
See Configuration tab - Event levels
for adjustment of the threshold level
Battery > 20%
State of Charge > 19.5 %
Can be used to control the LEDs on
a MasterBus display for example
Battery > 40%
State of Charge > 39.5 %
Battery > 60%
State of Charge > 59.5 %
Battery > 80%
State of Charge > 79.5 %
On
Input
Off
Copy
Toggle
Copy
invert
