4. BASIC INSTALLATION
Unpacking
The delivery consists of the following parts:
1. MLI Ultra battery with 2x M8 bolt + washer + spring washer, for screw connection
2. 1x automotive battery pole positive (thick) + M8 Allen bolt, for clamp connection
3. 1x automotive battery pole negative (thin) + M8 Allen bolt, for clamp connection
4. Handle
5. 2x Attachment strap
6. MasterBus terminator
7. MasterBus cable (1m)
8. Drop cable CZone/MB (1m)
9. Auxiliary cable (2m)
10. The quick installation manual
Never use a damaged battery. If in doubt, contact your Mastervolt dealer.
Location
- Install the MLI Ultra in a well-ventilated room protected against rain, snow, spray, vapor, bilge,
moisture and dust.
- Keep the MLI Ultra away from heat sources. See specifications for allowed operating temperatures.
- The MLI Ultra must be installed in upright position or on the long side of the case, although upright
mounting is recommended.

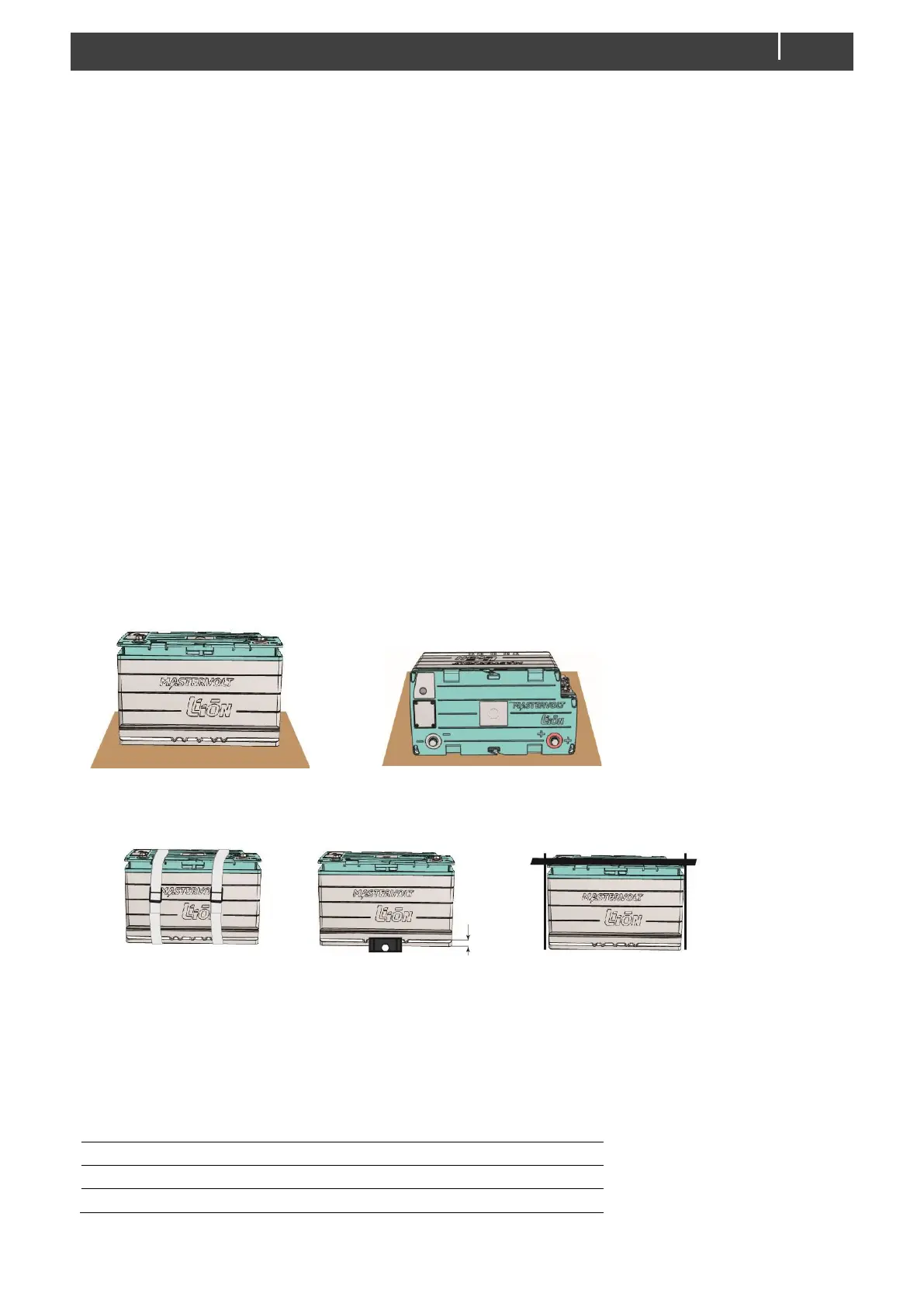

Upright position
Long side position
- Keep at least 1cm [3/8"] between two Li-Ion batteries for air flow.
- The MLI Ultra must be secured. The following drawings are examples of mounting options:
With included mounting straps
Hold-downs on long side
(group 49)
With a frame or tray
Materials needed
- Battery charger
- Due to Interrupt Rating, use a T-fuse or an MRBF fuse and a fuse holder.
This manual assumes that an MRBF fuse is used.
- DC wiring
MLI Ultra 12/1250
MLI Ultra 24/1250
Recommended fuse
200 A
100 A
Recommended wire size
70 mm2 [AWG 2/0]
35 mm2 [AWG 2]
11 mm
0.4 inch
