Mastervolt PowerCombi 12V/1200W-50A 120V

16
PowerCombi Inverter/Charger
5 SETTINGS
Adjustment of the settings of the PowerCombi Inverter/Charger can be made in three different ways:
• By means of DIP switches.
• From the PowerCombi Remote Panel, see the PowerCombi Remote Panel user manual.
• From a laptop/notebook connected via the MasterBus PowerCombi Interface.
CAUTION!
Invalid settings of the PowerCombi Inverter/Charger can cause serious damage to your
batteries and/or the connected load! Adjustment of settings must be carried out by
authorized personnel only.

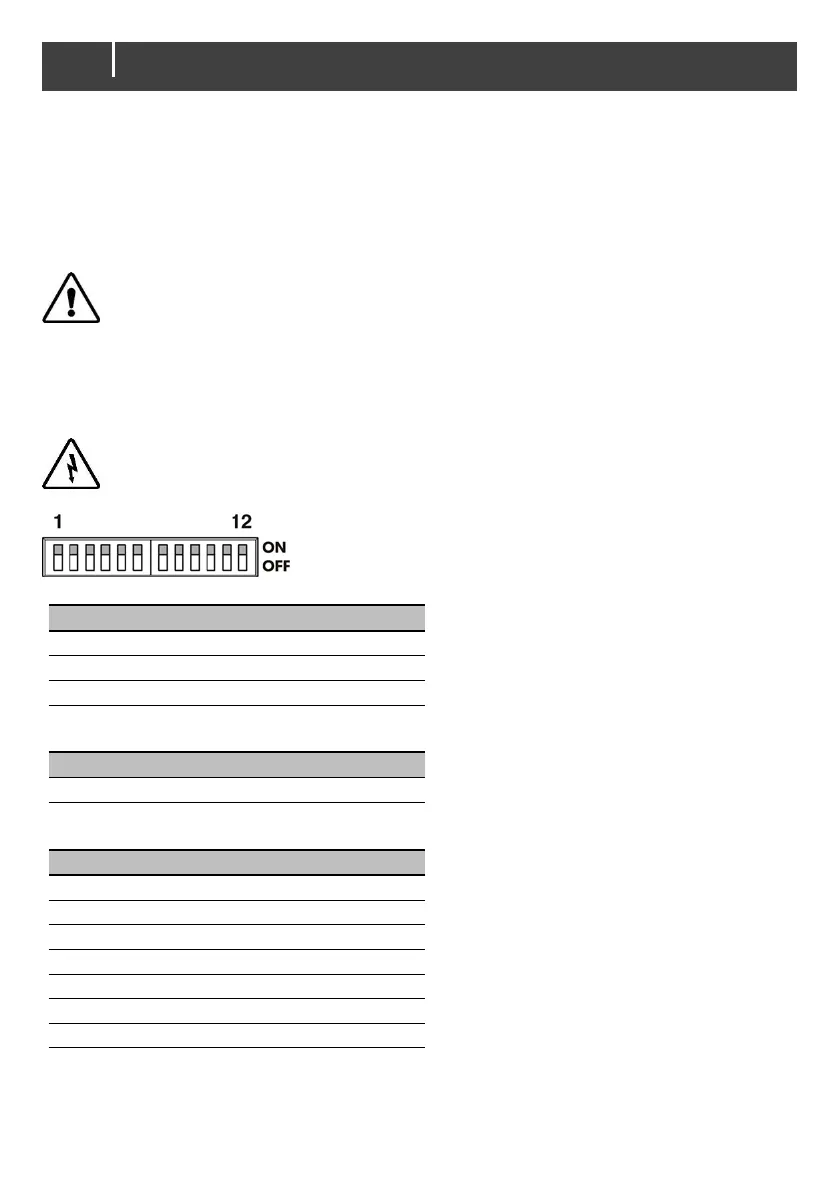

5.1 DIP switch setting
Open the connection compartment to access the DIP switches (item E in Figure 3) and use a small
screwdriver to carefully set the required settings.
WARNING!
Never open the connection compartment when the PowerCombi Inverter/Charger is
connected to a power source.
Output Voltage
S1
S2
100V
OFF
OFF
110V
ON
OFF
115V
OFF
ON
120V
ON
ON
Frequency
S3
50HZ
OFF
60HZ (default)
ON
AC Input Current Limit
S4
S5
S6
3A
OFF
OFF
OFF
6A
ON
OFF
OFF
9A
OFF
ON
OFF
12A
ON
ON
OFF
15A (default)
OFF
OFF
ON
20A
ON
OFF
ON
25A
OFF
ON
ON
30A
ON
ON
ON
