3 PRODUCT DESCRIPTION
3.1 Dimensions

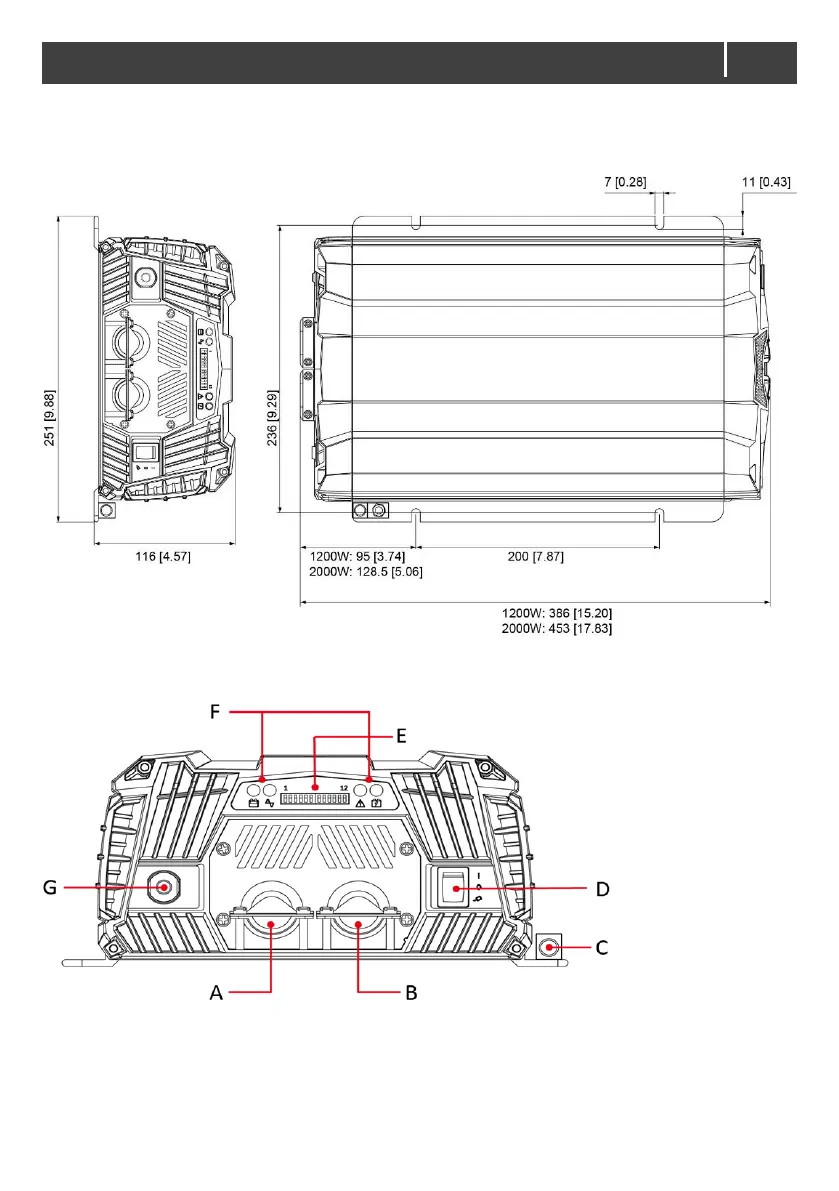

Figure 2: Dimensions PowerCombi in mm [inch]
3.2 Overview of AC side
A
AC Output
B
AC Input
C
Chassis ground
D
Main switch
E
DIP switches
F
Status LEDs
See section 6.3.
G
AC input breaker
Figure 3: AC side – exterior
