DISPLAY
EN / SunMaster CS15TL/CS20TL / August 2010 23
8.9.7 Reset to factory settings
By resetting to factory settings, all data will be removed,
not only all settings but also the Datalogger history.
CAUTION!
Resetting removes all settings and all
Datalogger history!

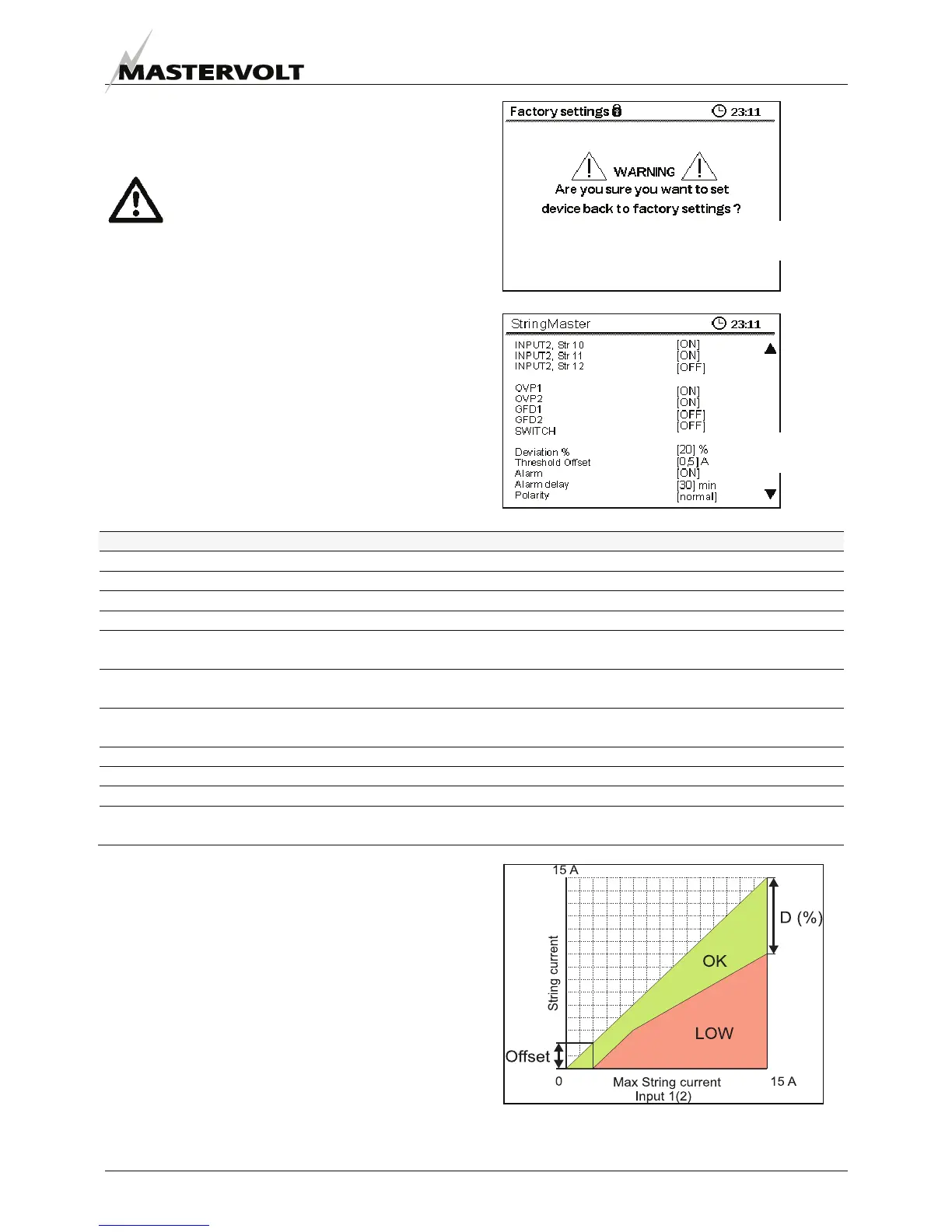

If you select this option, a warning screen appears (fig 40).
If you select Continue, all custom settings are reset to
factory default. A second screen confirms the reset.
8.9.8 StringMaster settings*
This section shows all settings to be made if you use a
StringMaster. All string inputs 1 to 12 can be enabled if
strings are connected. See figure 41.
Variable Description Default Range
Input 1, Str 1-6 Solar input 1, string 1 to 6 Not connected Not connected, connected
Input 2, Str 7-12 Solar input 2, string 7 to 12 Not connected Not connected, connected
OVP1 Over Voltage Protection of Solar Input 1 On Off, On
OVP2 Over Voltage Protection of Solar Input 2 On Off, On
GFD1 Ground Fault Detection of Solar Input 1
(not standard in String Master)
Off Off, On
GFD2 Ground Fault Detection of Solar Input 2
(not standard in String Master)
Off Off, On
Deviation Maximum allowed difference (percentage) with the
maximum string current measured. See also figure 41.
20% 10-100%
Theshold Offset Deviation below which no alarm is triggered. 0,5 A 0,5-30,0 A
Alarm Option to disable the alarm function. On On, Off
Alarm delay Time threshold to trigger an alarm. 60 min 0-1440 min
Polarity Input polarity. In some countries it must be reversed.
Also useful when current measurement is negative.
Normal Normal/ Reverse
Performance Low warning
If the current of string (x) is LOW, a warning appears. The
conditions for this warning are:
1. The current of string (x) is out of deviation. D (deviation)
is the percentage to enter;
2. The current of string (x) is lower than the maximum
current of all strings minus the Offset;
3. Conditions 1 and 2 are present for at least a period as
long as the alarm delay.
Refer to figure 42.
Figure 42: Performance Low warning graph
*
A software update may be necessary to activate this feature.
Contact Mastervolt for more information.
ContinueCancel
Figure 40
Figure 41
