Matrix T5X GROUP TRAINING User Manual

39
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE
10.4 T5X PCTV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED

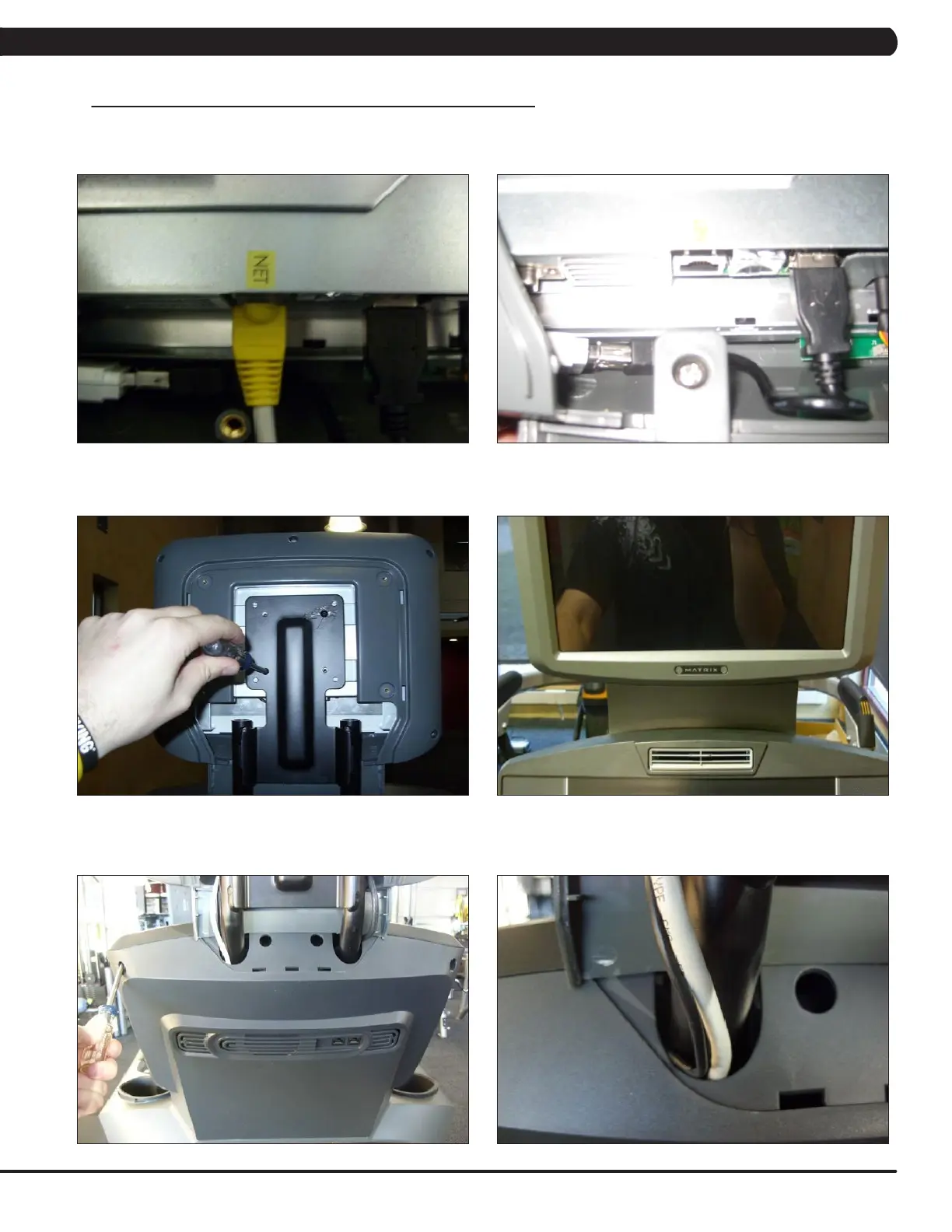

12) Plug the net wire into the Net port on the PCTV if wired internet will be used (Figure M).
13) If wireless internet will be used, plug the dongle into the port of the PCTV (Figure N), and mount the dongle to the PCTV plastic using
double sided foam tape.
14) Mount the PCTV to the bracket using 4 screws (Figure O). NOTE: Make sure the tabs of the front plate slide behind the console faceplate
to create a seamless look (Figure P).
15) Install the console back cover using the 4 screws removed in Step 1 (Figure Q). NOTE: Make sure to route the wiring through the holes in
the back cover so that none of the wiring is pinched (Figure R). The MATRIX logo portion of the back cover will not be used with a TV bracket.
FIGURE M FIGURE N
FIGURE O FIGURE P
FIGURE Q FIGURE R
