Matrix T5X GROUP TRAINING User Manual

43
10.5 RF900/863 RECEIVER INSTALLATION - CONTINUED
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE

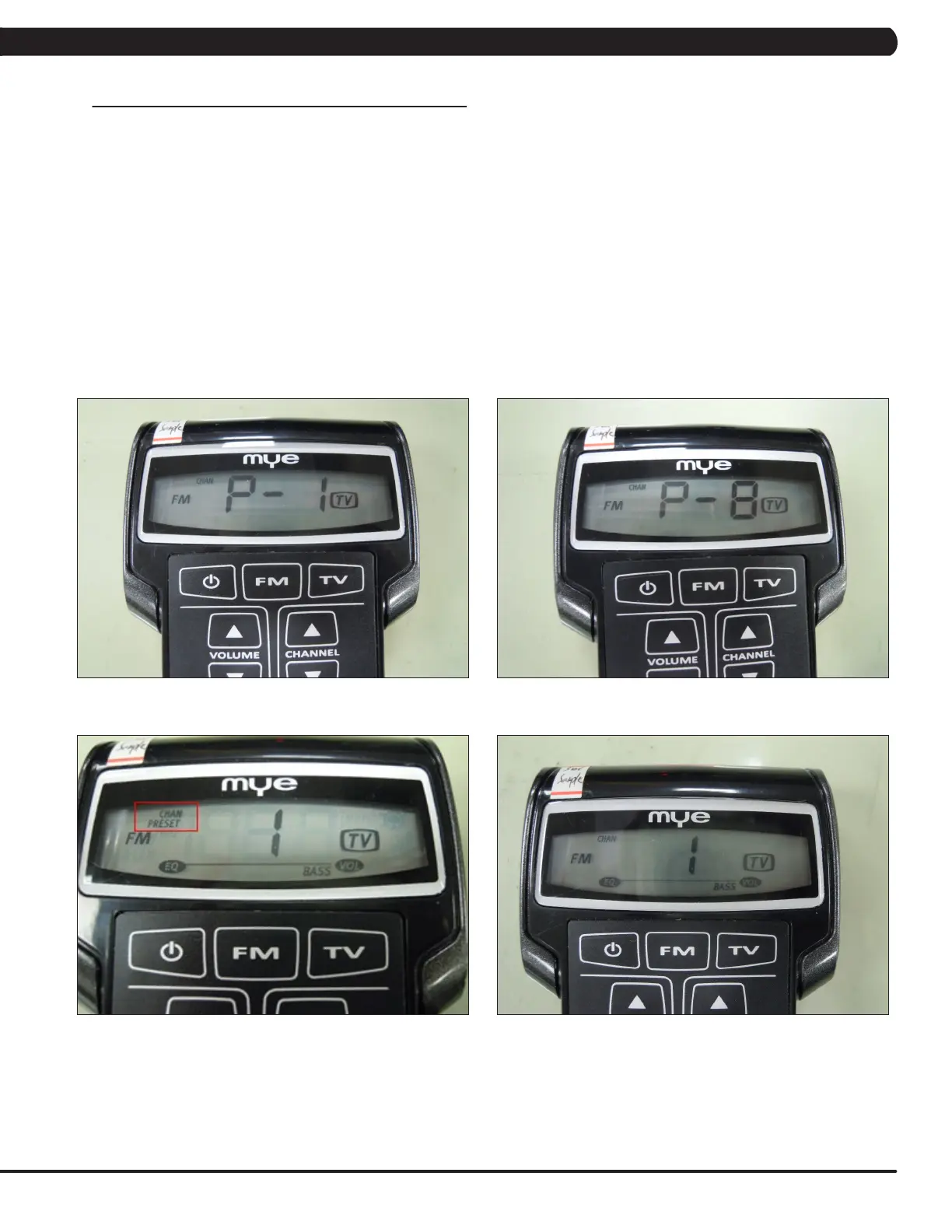

FIGURE DFIGURE C
FIGURE BFIGURE A
C. Scan Transmitter Channels by Programmer (For details please see MYE operation manual)
1. Press and hold the Channel Down and Volume Up buttons simultaneously for three seconds until "P-1" appears on the display (Figure A).
2. Press the “Ch Up ” button to select one of the following Transmitter Types:
P-1 = MYE Entertainment 900MHz Transmitters (Figure A)
P-8 = Audeon 800MHz Transmitters (Figure B)
3. After selecting the Transmitter type, press the TV button to auto-scan all the frequencies in the transmitter type and lock in transmitters.
4. Hear the sound from programmer. Press CHANNEL UP button to scroll through all transmitter channels.
To add or delete a transmitter channel press the "TV" button. "PRESET" (Figure C) will appear in the display when a transmitter channel is
programmed.
5. To SAVE your presets and exit program mode press the PGM button. The display will blink then default to first transmitter channel
programmed (Figure D).
