10.5 RF900/863 RECEIVER INSTALLATION - CONTINUED
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE

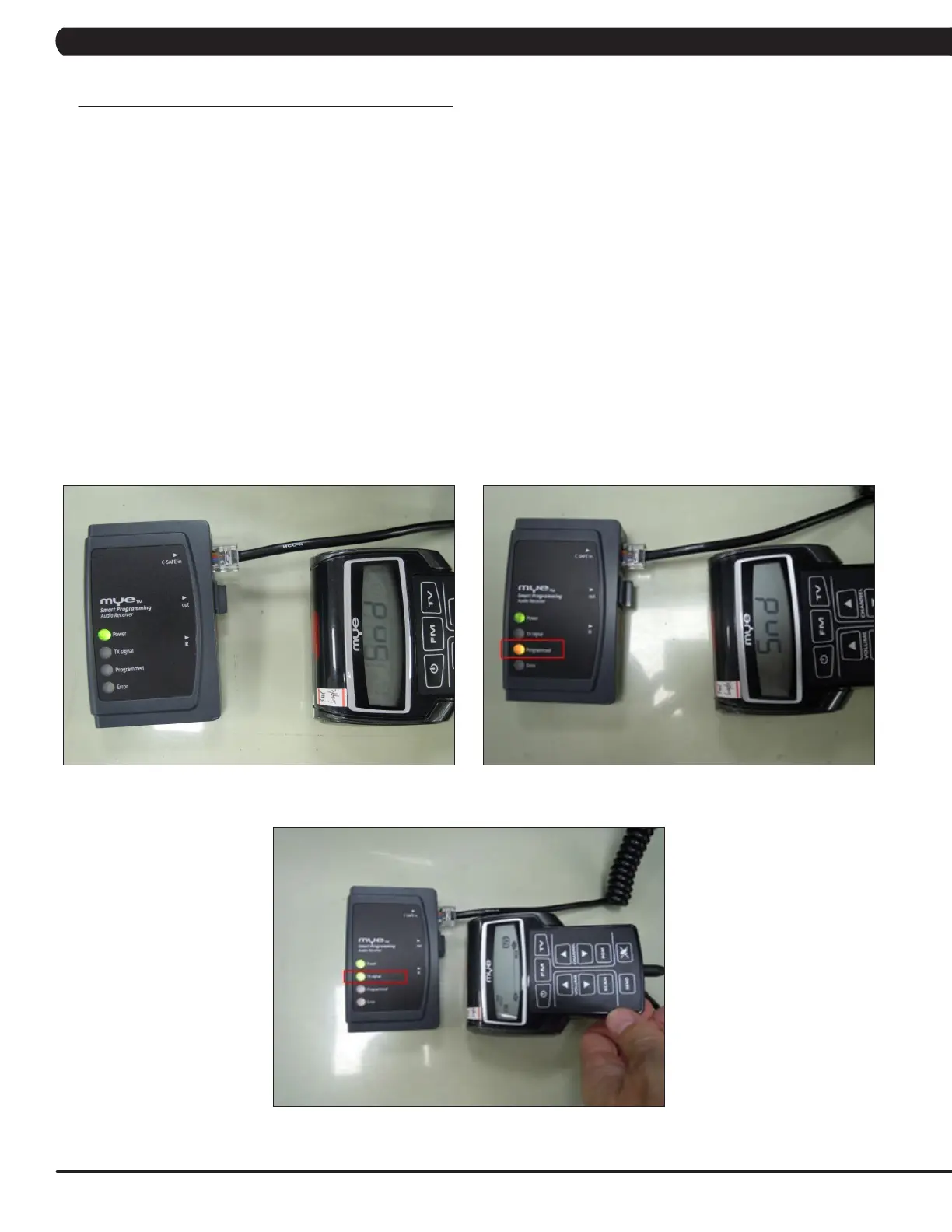

FIGURE C
FIGURE BFIGURE A
D. Send a Preset Program from Programmer to a Receiver
The programmer has the ability to CLONE your presets and send the program to any receiver.
1. Confirm your program is saved in the Programmer and is ready to be cloned.
2. Press and hold the SEND and PGM buttons for three seconds until "Snd" appears on the display.
3. Place the IR lens of the programmer six - twelve inches from the IR lens on the Receiver (Figure A).
4. Press the SEND key.
a. Keep the programmer pointed at the receiver.
b. "Snd" will begin flashing on the programmer. The program is being sent.
c. The "Programmed" light will flash on the Smart Receiver. The program is being received.
d. "Snd" and the "Programmed" light will stop flashing when the send is successful. The yellow PROGRAMMED light will stay solid (Figure B)
on the Smart Receiver for 5 seconds then turn off.
e. The TX signal light will appear solid green if a transmitter is detected on the first programmed channel (Figure C). If no TX light appears, no
transmitter is detected.
f. An error code of "E2" will appear on programmer and a RED light will appear next to ERROR on the Smart Receiver if the SEND was
incomplete. Realign the two units and press SEND again.
5. To EXIT "SEND" Mode on the MWC5-PRG press PGM.
To Next Page
