CHAPTER 8: TROUBLESHOOTING
1. Sections 8.15-8.18 will help with diagnosing problems with TV and entertainment related equipment that is produced by Matrix Fitness Systems. .

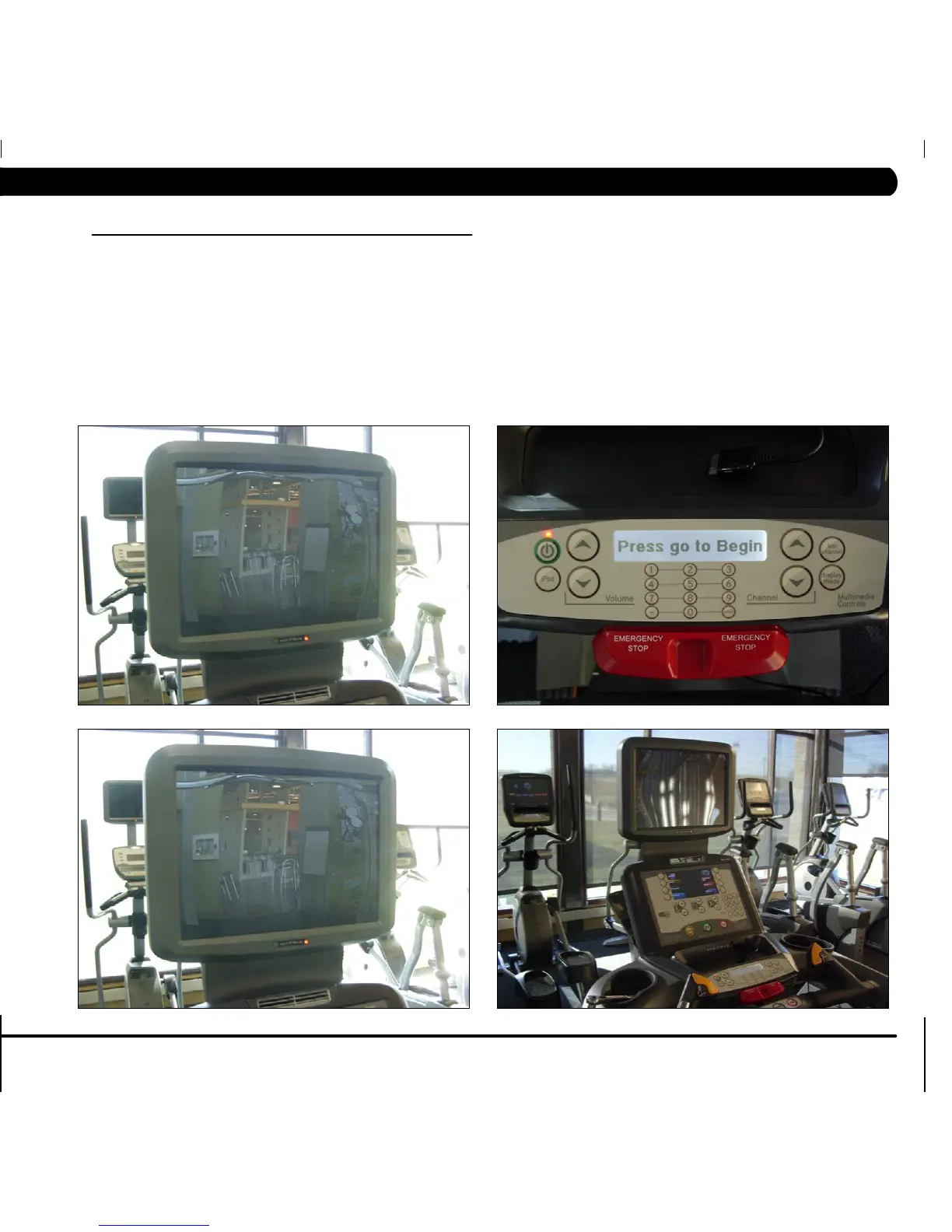

2. The T7x treadmill has an integrated 7" TV screen as well as the capability of adding an external 15" TV with a bracket. A Matrix brand external TV
will look similar to the TV in Figure A. Your control keypad should look similar to Figures B or C. If your equipment looks different contact Matrix
or the manufacturer of your TV equipment if known.
3. Verify how your TV is mounted, compare your machine to Figure D which shows an external 15" TV directly mounted to a T7x Treadmill.
4. For Matrix produced and mounted equipment you can use the information outlined in this section to help with any connection and power
issuesyoumayhave.IfyouhavequestionsthatarespecictotheTValone(settings,programming,menuoptions,etc)pleaseseethe
entertainment owner’s manual.
FIGURE A
FIGURE B
FIGURE C
8.15 ENTERTAINMENT TROUBLESHOOTING - OVERVIEW
FIGURE D
