Matrix T7X-02 - Overlay Replacement

76
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.12.
3) Remove the back cover of the console (Figure A).
4) Unplug and remove the faulty overlay (Figure B).

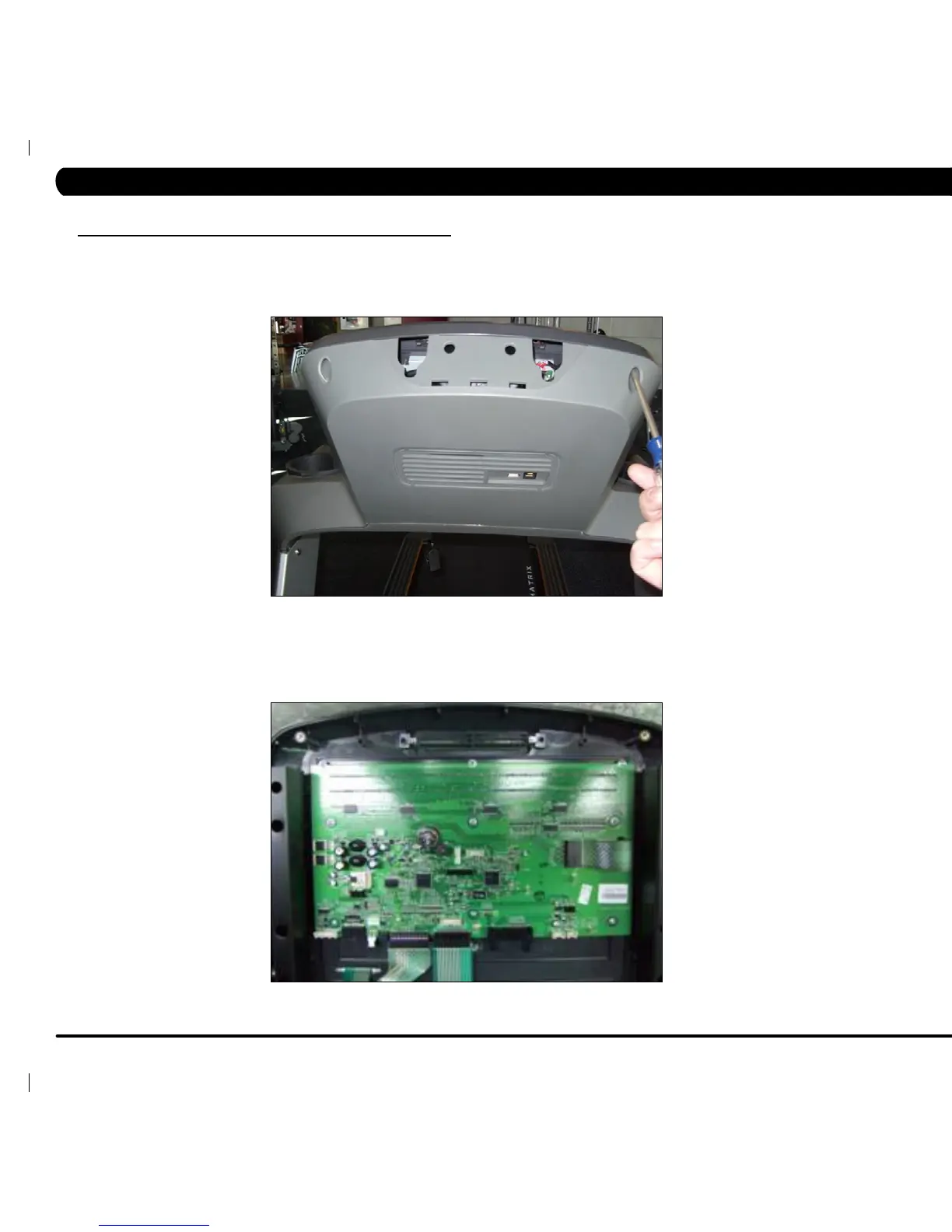

FIGURE A
FIGURE B
9.19 OVERLAY REPLACEMENT
