CHAPTER 9: PART REPLACEMENT GUIDE
9.13 CONSOLE MAST ARM REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.12.
3) Take off the cup holder from the right side of the treadmill (Figure A).
4) Use a 6 mm Allen wrench to remove one screw and take off the plastic hand rail (Figure B).

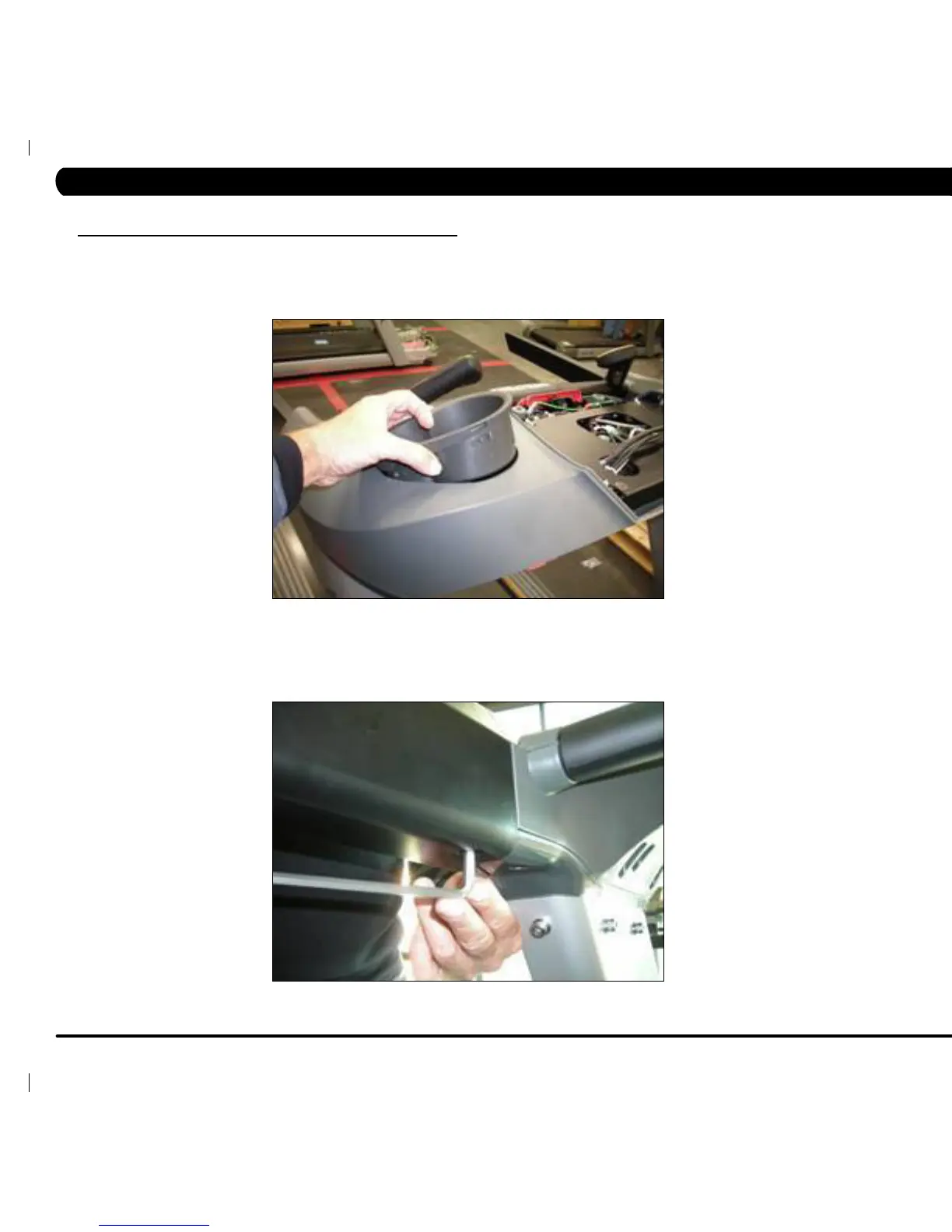

FIGURE A
FIGURE B
