36 Matrox Display Wall – User Guide

Mura MPX-4/4 and MPX-4/2

This section describes how to connect your output devices (monitors) and input devices to your Mura

MPX-4/4, and MPX-4/2 cards.

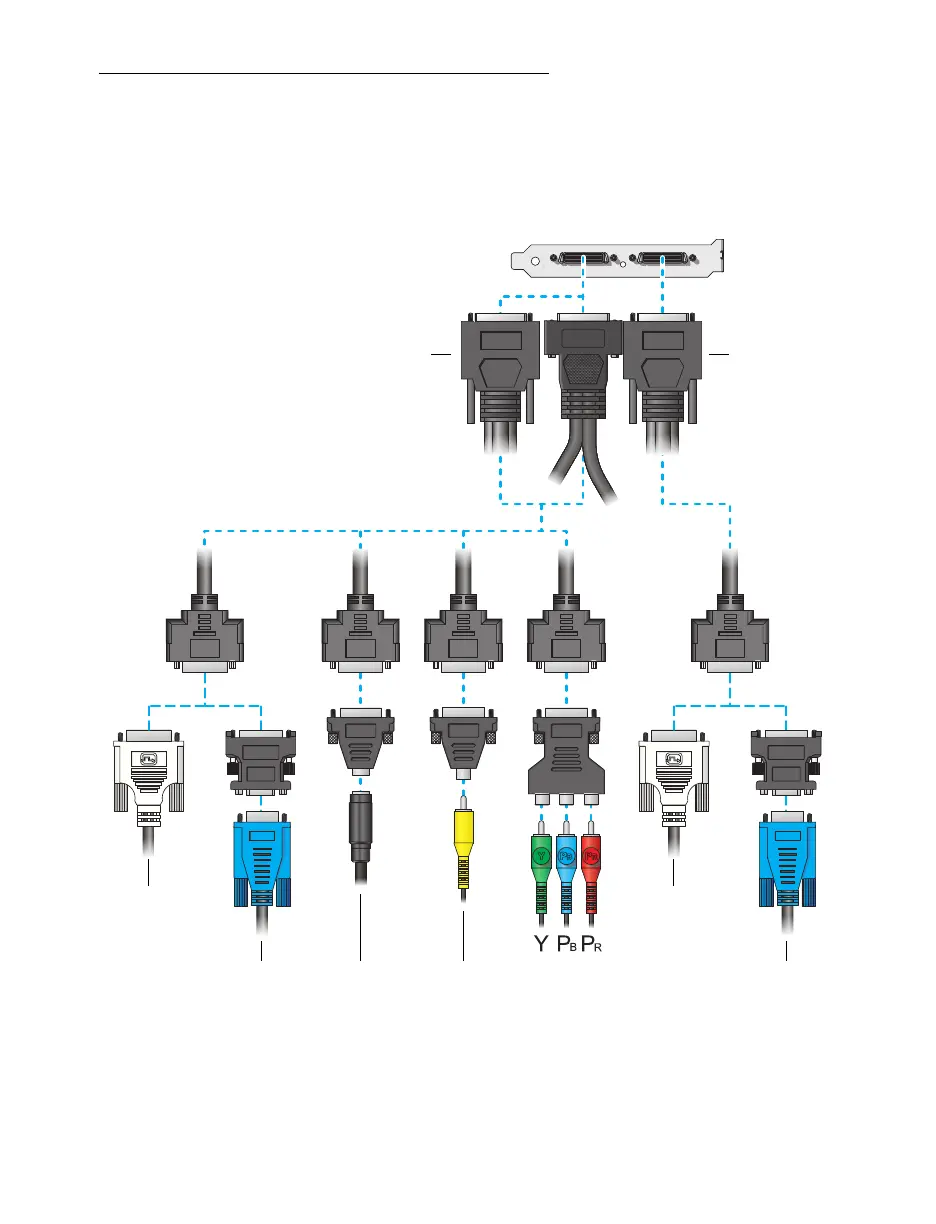

Connection overview

Input cables

(KX20 to Quad-DVI or Dual-DVI)

Component

video cable

Composite

video cable

(RCA)

S-video

cable

Monitor

connector

(HD-15)

Monitor

connector

(DVI)

Monitor

connector

(HD-15)

Monitor

connector

(DVI)

Output cable

(KX20 to

Quad-DVI)
