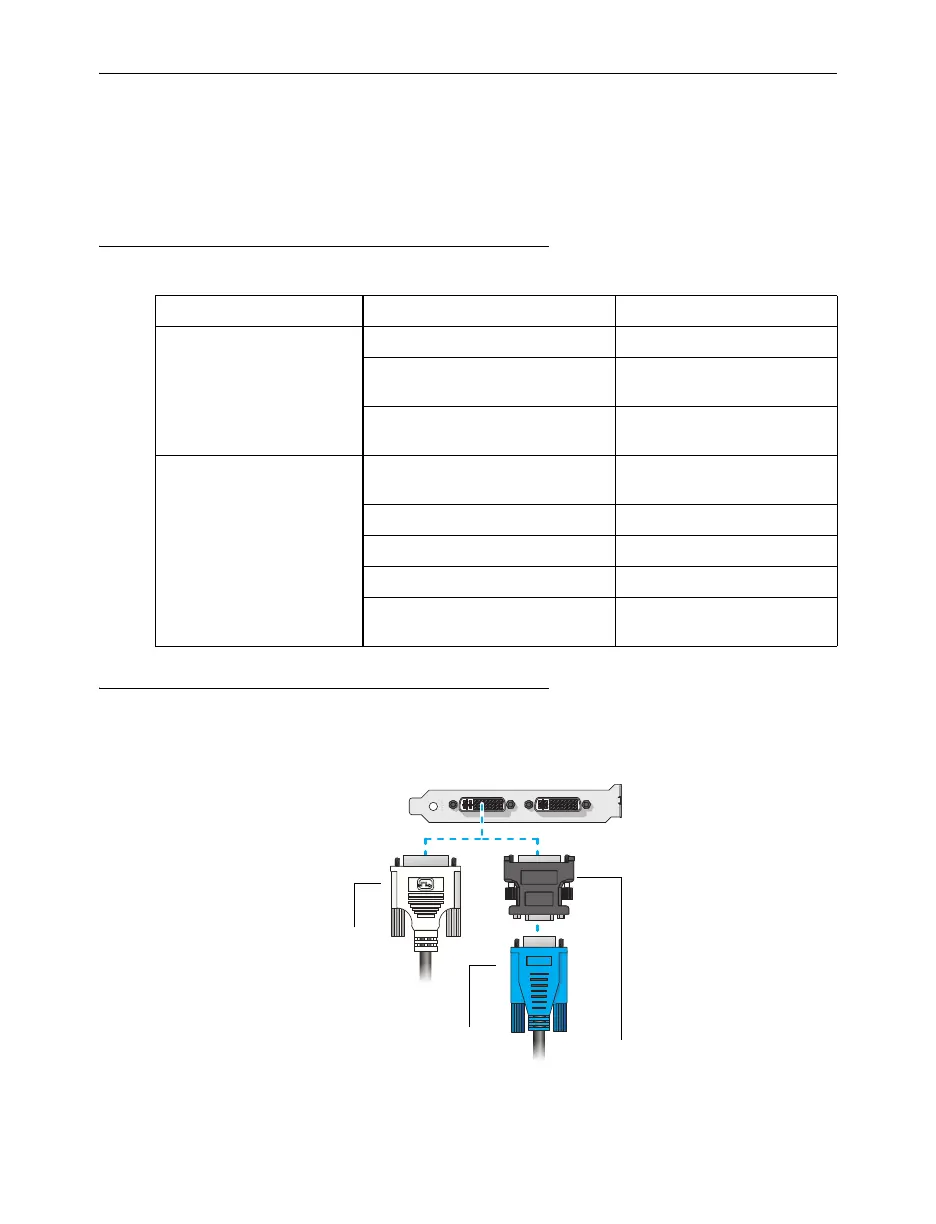

Matrox Display Wall – User Guide 71
Appendix B – Adding a console display
With a console display, you can run applications to manage the layout of the display wall locally
without affecting the appearance of your display wall.
Supported hardware
Matrox P690 PCIe ×16
Connection overview
Supported console More information
Mura MPX Series
P690 PCIe ×16 See page 71.
P690 Plus LP PCIe ×16
(dual-monitor cable)
See page 72.
P690 Plus LP PCIe ×16
(quad-monitor cable)
See page 74.
Mura MPX Series,
C900, C680
M9120,
M9125 PCIe ×16
See page 75.
M9120 Plus LP PCIe ×1 / ×16 See page 76.
M9140 LP PCIe ×16 See page 77.
M9128 LP PCIe ×16 See page 78.
M9138 LP PCIe ×16,
M9148 LP PCIe ×16
See page 79.
Monitor
connector
(HD-15)
Monitor
connector
(DVI)
DVI to HD-15
adapter
