74 Matrox Display Wall – User Guide

Matrox P690 Plus LP PCIe ×16 (quad-monitor cable)

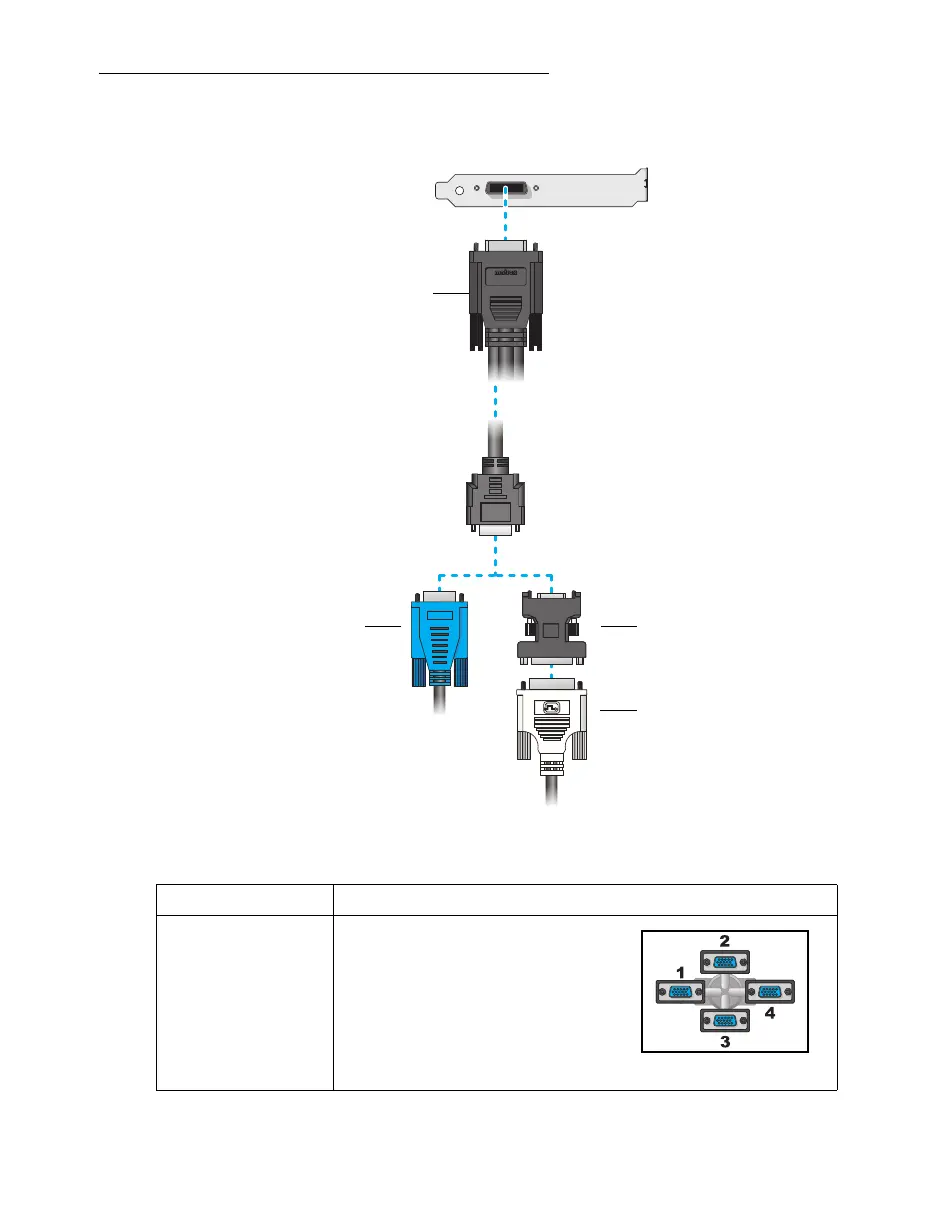

Connection overview

Description of cable

Cable Description

Output Matrox P690 cards use an LFH-60 to

quad-HD15 cable to connect up to

four (4) monitors per card. Monitors

are numbered consecutively based

on which connector each is attached

to, starting with connector labeled 1.

Monitor

connector

(DVI)

Monitor

connector

(HD-15)

HD-15 to DVI

adapter

Output cable

(LFH-60 to Quad-DVI)

LFH-60 to quad-HD-15 cable
