76 Matrox Display Wall – User Guide
Matrox M9120 Plus LP PCIe ×1 / ×16

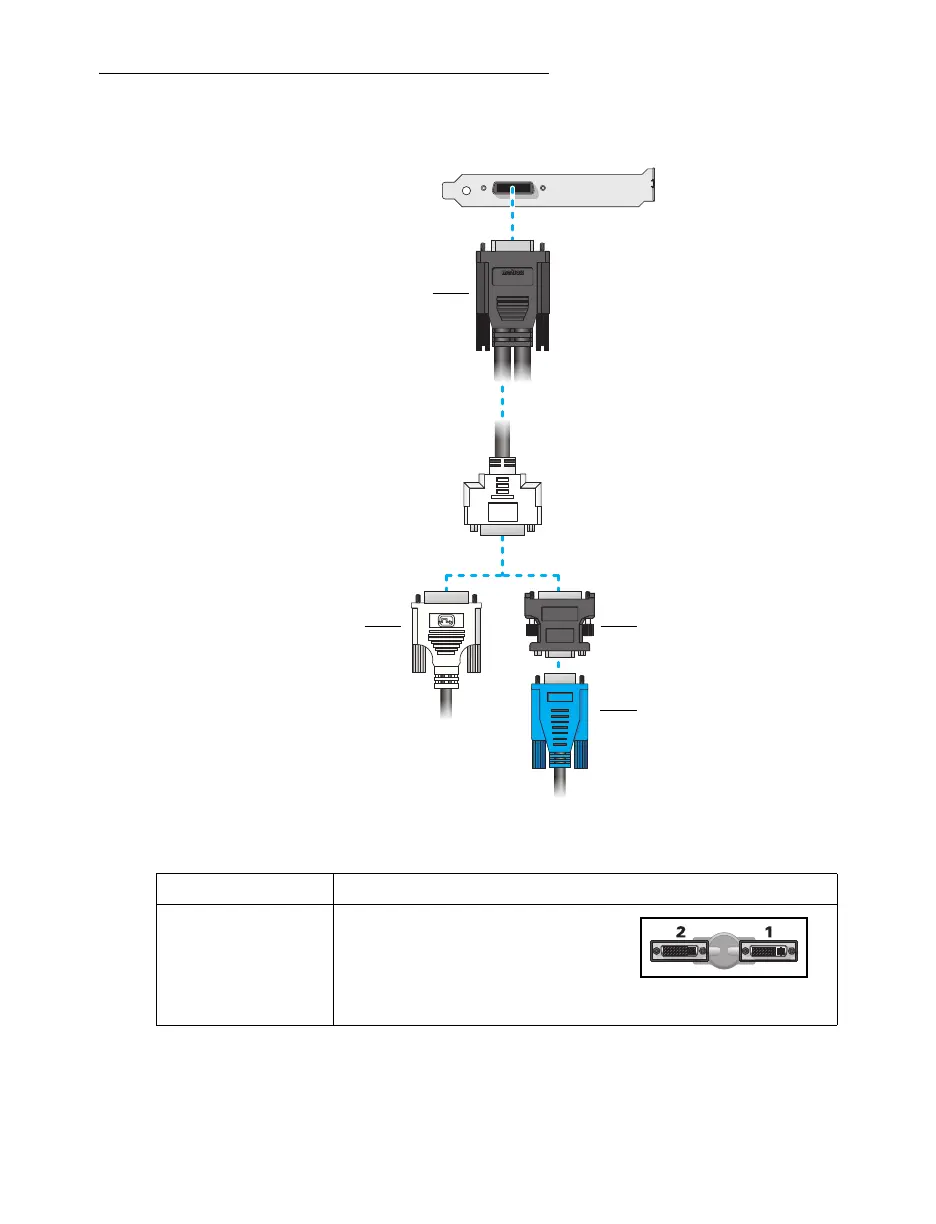

Connection overview
Description of cable
Cable Description
Output M9120 Plus LP cards use an LFH-60
to dual-DVI cable to connect up to
two (2) monitors per card. Monitors
are numbered consecutively based
on which connector each is attached
to, starting with connector labeled 1.
Monitor
connector
(HD-15)
Monitor
connector
(DVI)
DVI to HD-15
adapter
Output cable
(LFH-60 to Dual-DVI)
LFH-60 to dual-DVI cable
