Matrox QuadHead2Go Series User Manual

19 Matrox QuadHead2Go Series – User Guide
Description of connectors
Step-by-step connection setup
This section guides you through the step-by-step connection setup of your QuadHead2Go unit. For
more information on connectors, see “Description of connectors”, page 19.

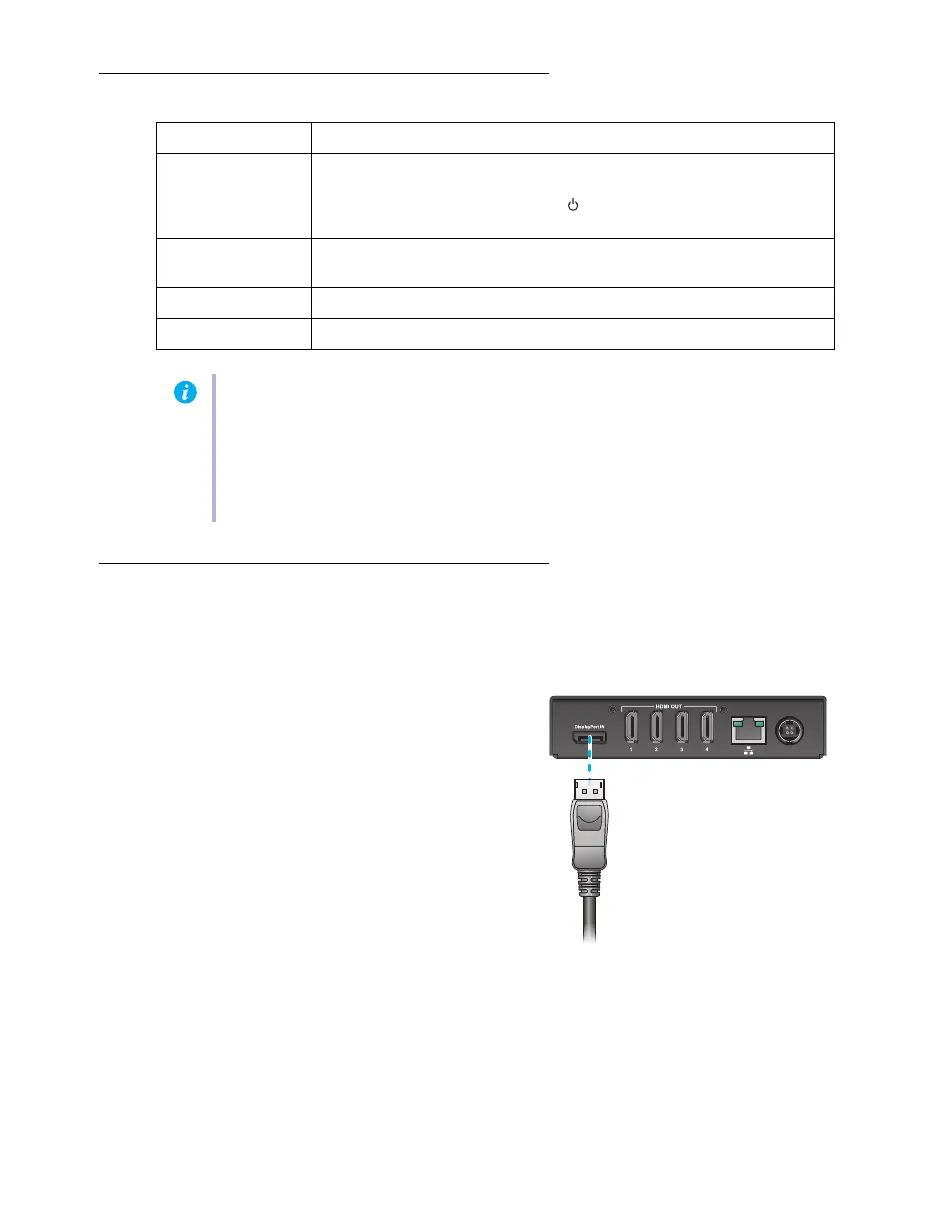

1 Connect your DisplayPort source
Connect your DisplayPort source to the
DisplayPort IN connector on your
QuadHead2Go unit.
Connector Description
12V DC power Connect the 12V DC power supply included with your product to this
connector. While the power supply is connected to the device and
electrical socket, the power LED ( ) is active (not black). For more
information on LEDs, see “Description of status LEDs”, page 25.
DisplayPort IN Connect your DisplayPort cable to your Matrox unit. Connect the other
end of the cable to your audio/video source.
HDMI OUT Connect a digital monitor to this connector.
LAN Connect a network cable to this connector.
Note: To connect your monitors, the overmold (or boot) of the HDMI connectors must
respect the maximum width (0.823 inches/20.9 mm) and thickness (0.452 inches/11.5
mm) stated in the HDMI specifications.
For the HDMI connectors, we recommend you use certified HDMI cables that support
your maximum resolution.
