Matrox QuadHead2Go Series User Manual

Matrox QuadHead2Go Series – User Guide 24

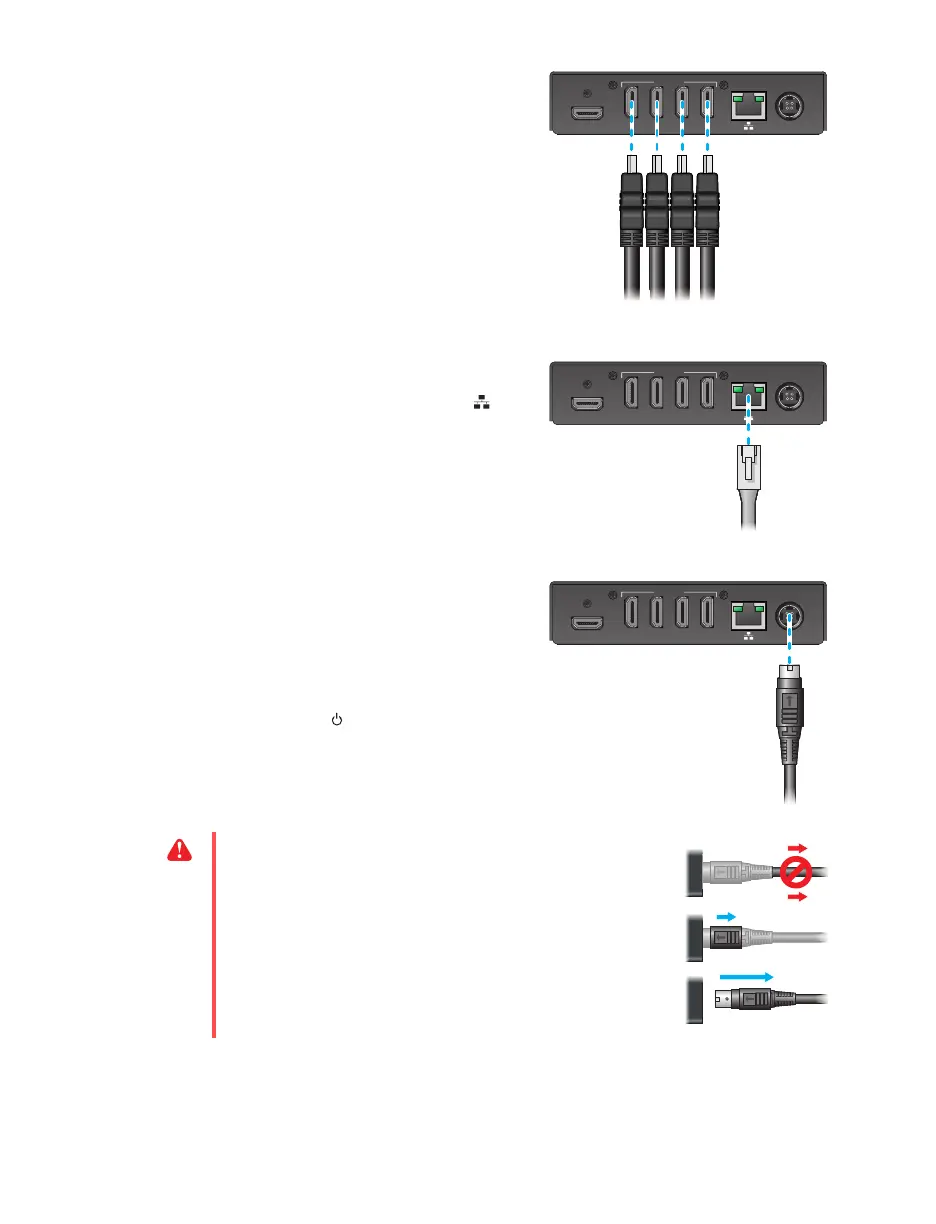

2 Connect your digital monitors
Connect your monitors to the HDMI OUT
connectors on your QuadHead2Go unit.
3 Connect to your network
Connect a network cable to the LAN ()
connector on your QuadHead2Go unit.
4 Connect your power supply
Connect the 12V power supply included with
your product to the
12V connector on the
QuadHead2Go unit. While the power supply
is connected to the unit and electrical socket,
the power LED
() is active (not black).
For more information on LEDs, see
“Description of status LEDs”, page 25.
After connecting your QuadHead2Go unit, validate your connection setup (see “Validating your
QuadHead2Go setup”, page 25).
HDMI OUT
12
4
3
HDMI IN
1234
HDMI OUT
12
4
3
HDMI IN
HDMI OUT
12
4
3
HDMI IN
WA R N I NG : To avoid damaging the power connector on your
device or on your power cable when unplugging a unit, firmly
hold the power connector, pull back the connector on the cable,
then carefully remove the power cable.

Matrox QuadHead2Go Series Specifications

General

Brand	Matrox
Model	QuadHead2Go Series
Category	Controller
Language	English
