18

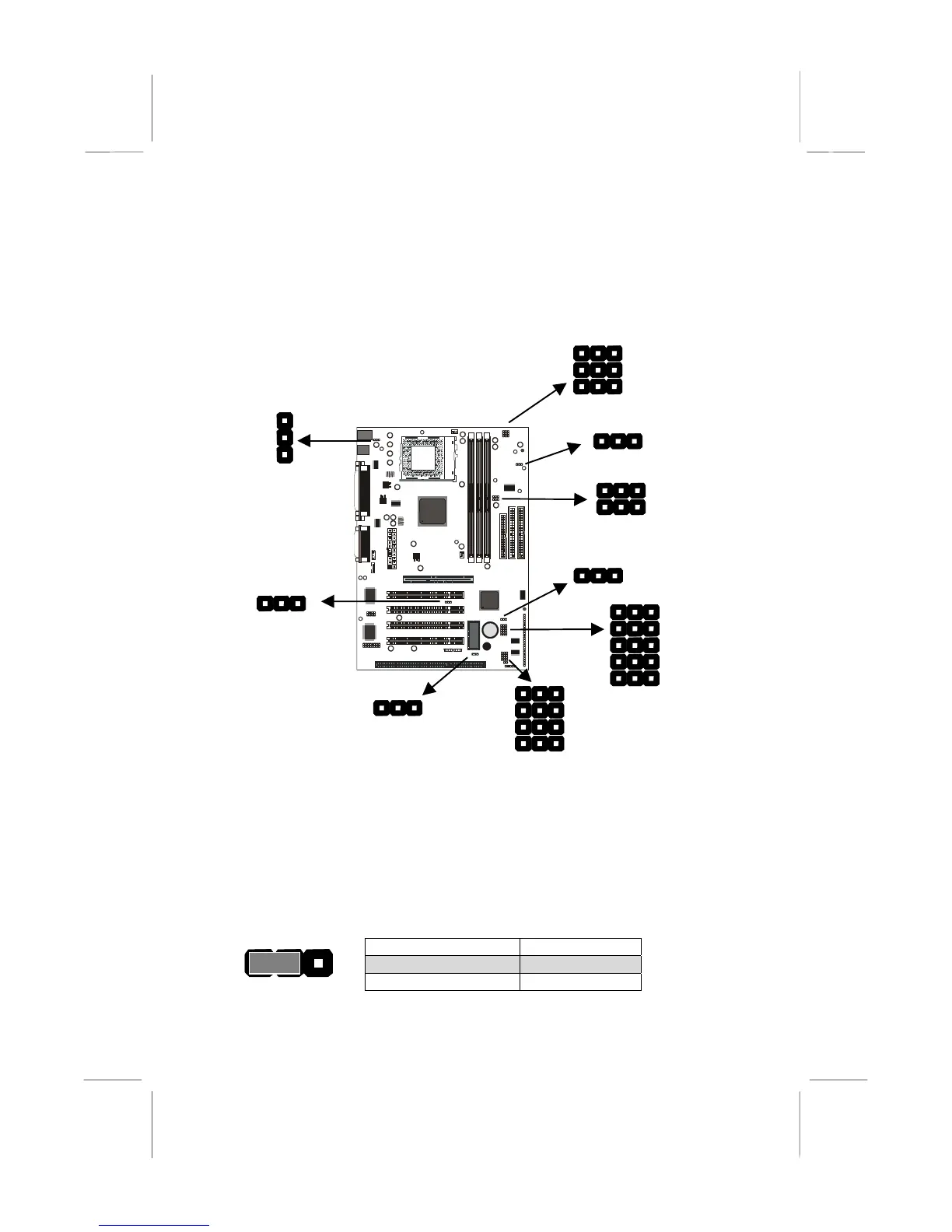

Check the Jumper Settings
Check all the mainboard jumpers to ensure that the board is configured
correctly.
JP1: Clear CMOS Memory Jumper
This jumper lets you erase the system setup settings that are stored in
CMOS memory. You might need to erase this data if incorrect settings
are preventing your system from operating. To clear the CMOS memory,
turn off the system, disconnect the power cable from the mainboard, and
short the appropriate pins for a few seconds.
Function Jumper Cap
Normal Operation Short pins 1-2
Clear CMOS Short pins 2-3
JP1
1 2 3
JP1
JP2
JP8
JP15
JP9
JP8
VID
BF
JP11
JP12
JP13
JP7
To Next Page
